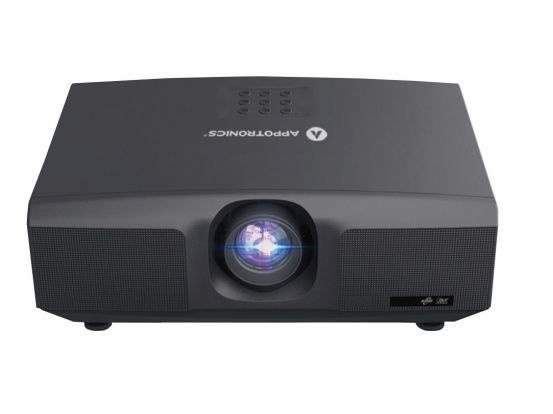

Appotronics DU935A 9,000lm Laser DLP WUXGA Projector / ALPD / 20,000h / Lens Shift / IP5X

SKU: DU935A
Brand: Appotronics
$6,649.00
Brand Appotronics
SKU DU935A
Weight N/A
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The Appotronics AL-DU935A is a high-brightness installation projector designed for large venues and demanding AV installations. It delivers WUXGA 1920×1200 resolution and a rated brightness of 9,000 lm to 9,300 lm (center), enabling clear, detailed images at long throw distances. The ALPD laser light source ensures consistent output and long service life.

Key features include the Signature ALPD engine, a sealed IP5X optical system, and an internal 4G module for enhanced connectivity. The projector supports advanced color tuning including RGBYCMW seven-axis correction to achieve uniform blended images and accurate color beyond REC.709. Lens options and wide manual axis shift improve installation flexibility in diverse environments.

From a technical perspective the DU935A uses a 0.67″ DMD single-chip DLP engine with a contrast ratio of 100,000:1 and 90% uniformity. The laser light source is rated for 20,000 hours and the display gamut targets REC.709 coverage with a red ratio above 10% for saturated colors. It supports screen sizes from 80″ to 300″ and optional lenses ranging from 0.62:1 to 1.23–1.97:1.

Connectivity includes DVI ×1, HDMI ×2, VGA ×1, RS-232 ×1, M3 ×1, RJ-45 ×1, USB ×1 and IR 3D out ×1 to support a wide range of sources and control systems. The projector can be monitored and managed via APCS – Appotronics Projectors Control System – available on desktop and mobile apps and cloud. All products support infrared 3D and DLP-link 3D for 3D projection workflows.

Typical applications include large auditoriums, houses of worship, lecture halls, rental and staging, and digital signage where high lumen output and color stability are required. The sealed optical engine and filter-free design reduce maintenance in dusty environments while preserving image quality over time. Multiple optional lenses and wide manual lens shift allow adaptation to varied throw distances and mounting positions.

The AL-DU935A is engineered for long-term installation use – it supports 360 degree installation and offers a standby consumption below 0.5 W. Noise level is specified at 35 dB in standard mode and power consumption is up to 600 W. The combination of long laser life, sealed optics and active color wheel cooling provides reliable operation and lower total cost of ownership.

Specifications

ModelAL-DU635A, AL-DU735A, AL-DU835A, AL-DU935A
Display TechnologyDLP x1
Panel Size0.67 in DMD
Resolution1920x1200 WUXGA
Brightness OutputAL-DU635A 6,300 lm / 6,600 lm, AL-DU735A 7,300 lm / 7,600 lm, AL-DU835A 8,300 lm / 8,600 lm, AL-DU935A 9,000 lm / 9,300 lm
Light Source TypeALPD Laser
Light Source Lifetime20,000 h
Contrast100,000:1
Uniformity90%
Display GamutREC.709
Optional Lenses0.62:1, 0.8:1, 1.23-1.97:1
Screen Size80 in - 300 in
KeystoneH+V +/-35 degrees, 4-corner keystone
Optical Axis ShiftVertical down 100% up 60% Horizontal +/-40% powered
Input Resolution1920x1200
I/O PortsDVI x1, HDMI x2, VGA x1, RS-232 x1, M3 x1, RJ-45 x1, USB x1, IR 3D out x1
Power Supply100-240 V AC 50/60 Hz
Power ConsumptionAL-DU635A <=450 W, AL-DU735A <=500 W, AL-DU835A <=550 W, AL-DU935A <=600 W
Standby<0.5 W
Orientation360 degree installation
Noise35 dB standard mode
Structure Measurements (LxWxH)490 x 352 x 161 mm
WeightAL-DU635A <28.6 lbs, AL-DU935A <30.8 lbs
Working Environment Temperature Standard0-40 C
Working Environment Eco Mode35-40 C
Working Environment Humidity20%-80% non-condensing
Color PerformanceRed ratio >10% coverage beyond REC.709
APCSProjector O&M monitoring management platform, app support, cloud monitor
Multi-color CorrectionRGBYCMW seven-axis color correction
Lens Shift RangeH +/-40% powered, V +100% -60% manual
3D SupportInfrared 3D, DLP-link 3D
Optical EngineFully sealed filter-free anti-dust IP5X
Color Wheel CoolingPatented inner loop cooling system
