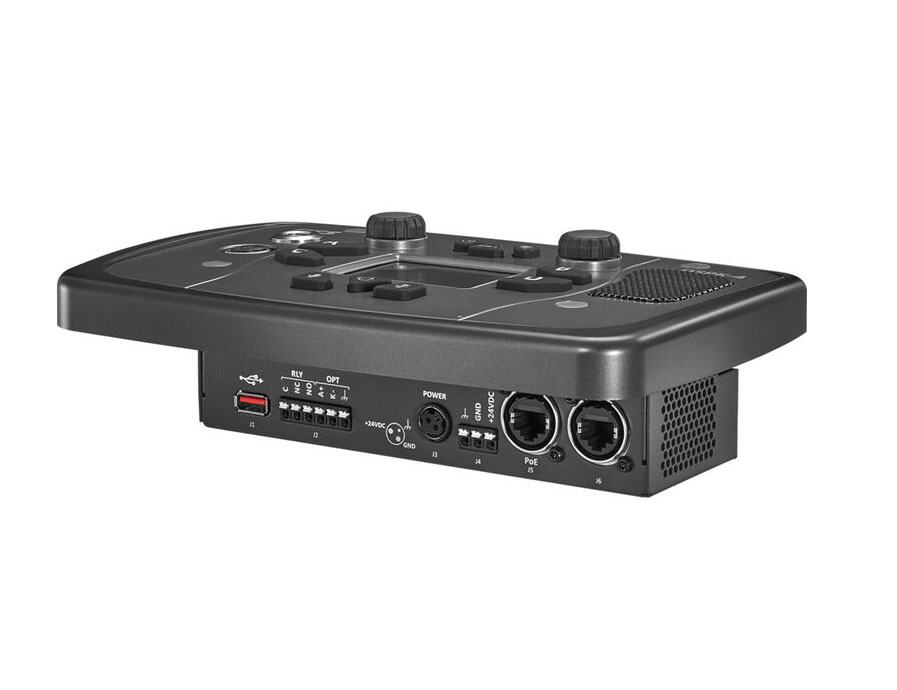

RTS DSPK4-F 5F IP 4-Channel Flush Mount User Station, 5-Pin Female

Description

The DSPK4 IP 4-Channel Flush Mount User Station from Telex/RTS is a versatile IP-based digital speaker station with a flush mount design and a front panel 4-pin XLR female connector. It supports high-quality digital audio and employs standard Ethernet connectivity, which makes the device usable in any environment.

The unit powers via an optional external DC power supply to a locking Kykon 3-pin connector and you can have peace of mind knowing you’ll never suffer power interruptions since the device supports redundant power via PoE+ and PoE++ over a Neutrik etherCON connector with a voltage range from 42.5 to 57 VDC and 25W power consumption. A full-color TFT display and an icon-based menu interface allow you to execute local configuration of essential settings and preferences.

Features

Supports connections to an OMNEO Main Station (Digital Party Line) or an OMNEO capable matrix (ADAM or ADAM M with OMI installed or ODIN)
Features a high-resolution TFT display, allowing user setup and configuration using an icon based GUI
Supports power redundancy from an external DC power supply or the local +24V terminal block to PoE+ / PoE++
Supports Bluetooth audio connectivity via Bluetooth-enabled USB dongles and phone connectivity

Specifications

Display
Display Type	TFT
Backlight	White LED with Adjustable Brightness (Active and Idle)
Display Color	Color
Resolution	320 x 240
Size	2.4" / 6.1 cm
Color Depth	16-Bit
Active Viewing Area	1.44 x 1.92" / 36.72 x 48.96 mm
Viewing Angle
80° in All Directions
Ports
OMNEO Port Connector Type	Neutrik etherCON
Number of Ethernet Ports	2
Ethernet Type	100/1000 Mb/s
Audio Streaming	Full Duplex
Number of Audio Channels	2
Microphone Input
Microphone Element Type	Electret
Connector Type	TRS 1/4" Jack
Audio Input	Microphone
Nominal Input Level	-42.5 dBu
Maximum Input Level	-22.5 dBu
Panel Mic Input Frequency Response	70 Hz to 7.4 kHz
Headphone Monitoring
Connector Type	4-Pin XLR Female
Audio Input	Microphone
Microphone Element Type	Electret
Nominal Input Level	-42.5 dBu
Maximum Input Level	-22.5 dBu
Microphone Element Type	Dynamic
Nominal Input Level	-50 dBu
Maximum Input Level	-30 dBu
Headset Mic Input Frequency Response	70 Hz to 7.4 kHz
Headphone Amplifiers (XLR 1/2/3)
Maximum Output Power	80 mW for 150 Ohms
Frequency Response	200 to 20000 Hz
Amplifier
Peak SPL	90 dB SPL at Distance of 3.3' / 1 m
Frequency Response	200 to 12000 Hz
Other I/O
Connector Type	Phoenix Terminal Block (Push-In Spring Connection)
Control Ports	1 GPI, 1 GPO
Number of Relay Outputs	1
Maximum Contact Current	1 A
Maximum Contact Voltage	30 VDC
Number of Optically Coupled Inputs	1
Bluetooth
Microphone Input Frequency Response	70 Hz to 3.4 kHz
Headphone Response	30 Hz to 19 kHz, 30 Hz to 3.4 kHz
Version	4.0
Approved Dongles	IO Gear GBU522, LM Technologies LM506
Range	15' / 5 m
Audio Codec	SBC
Power Source
PoE	PoE+ / PoE++
PoE (Power over Ethernet)
Connector Type	Neutrik etherCON
Standard	POE+ IEEE 802.3at Type 2, Class 4 / POE++ IEEE 802.3bt Type 3 and 4, Class 4
Voltage	42.5 to 57 VDC
Power Consumption	25 W
External DC Power Supply Input
Connector Type	Locking Kycon 3-Pin Connector
Input Voltage	24 VDC
Current	280 mA
DC Power Terminal Block Input
Connector Type	Phoenix Terminal Block (Push-In Spring Connection)
Input Voltage	19 to 24 VDC
Current	280 mA
External Power Supply
Connector Type	IECC14
Input Voltage	100 to 240 VAC
Operating Voltage	100 to 240 VAC at 50 and 60 Hz
Power Consumption (VA)	25 VA
Power Consumption (Max)	13 W
Environmental
Operating Temperature	-4 to 122°F / -20 to 50°C
Operating Relative Humidity	5 to 90% (Non-Condensing)
Storage Temperature	-4 to 158°F / -20 to 70°C
Storage Relative Humidity	15 to 90%
Dimensions (W x D x H)
9.13 x 2.56 x 5.90" / 232 x 65 x 65 mm
Weight
1.62 lb / 740 g
