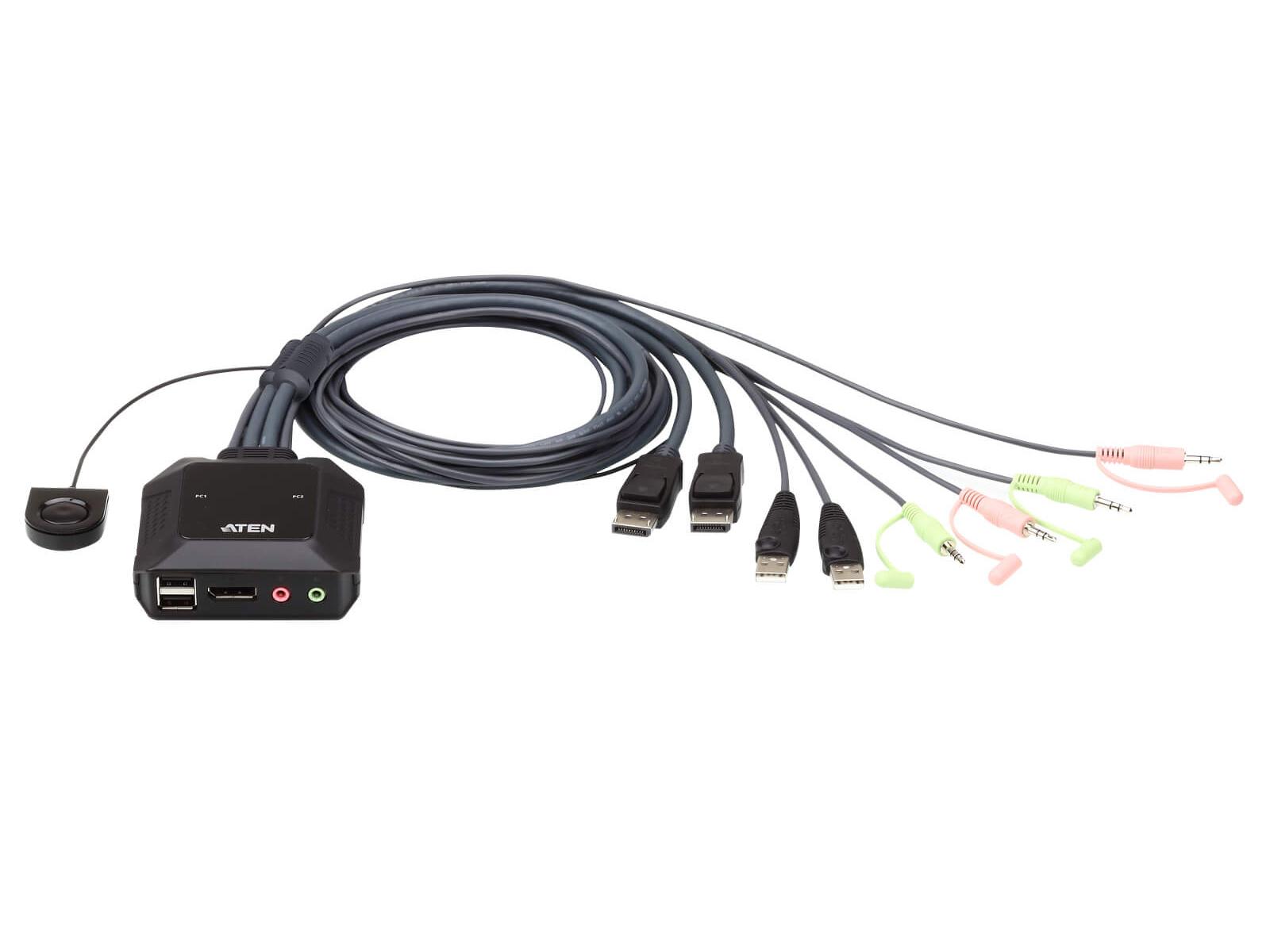

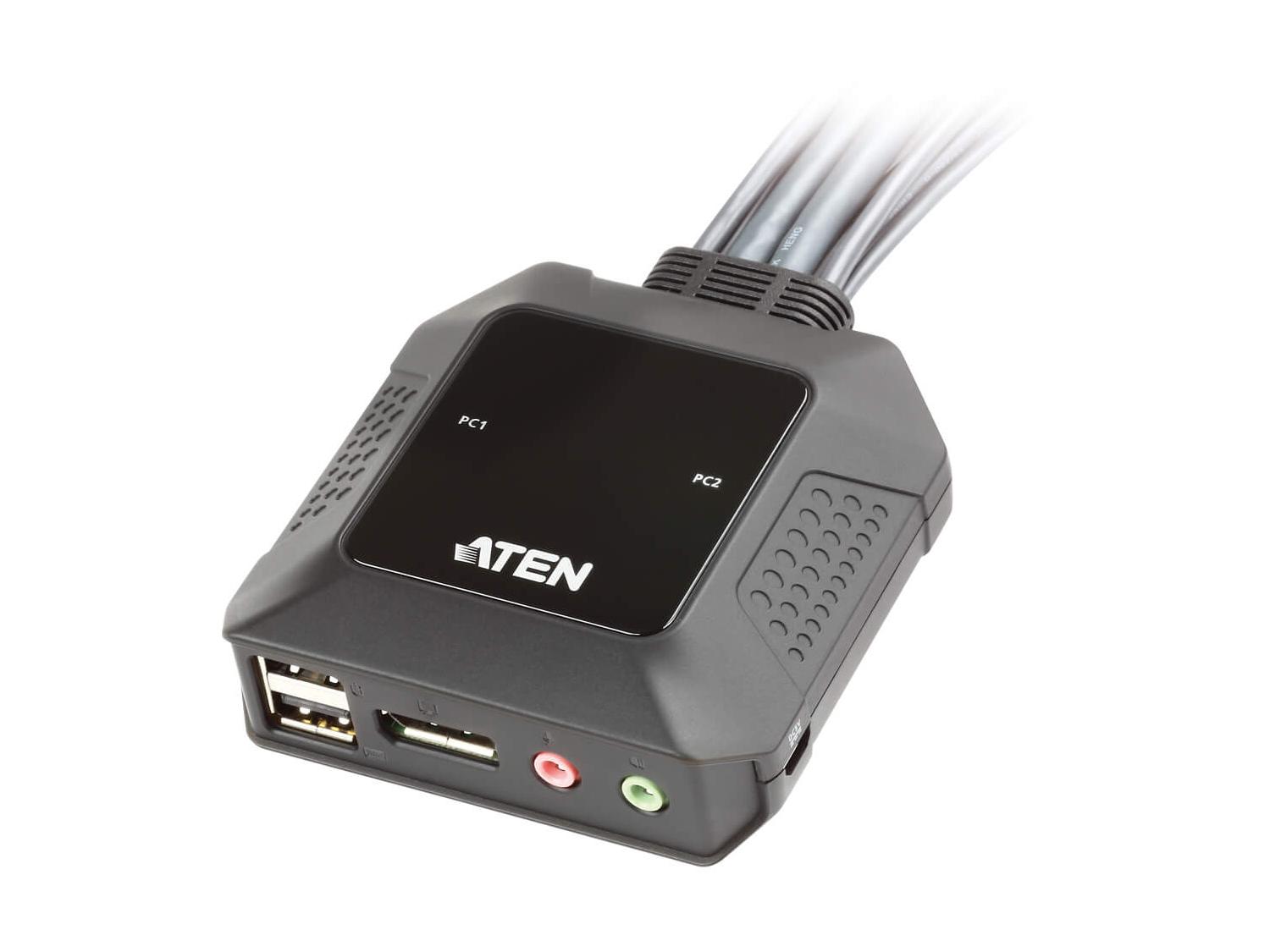

Aten CS22DP 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector

Description

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.

The CS22DP supports multiplatform operations allowing you to switch between two PC’s running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.

It’s fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices – just plug and play.

Features

One KVM console controls two USB DisplayPort computers
Superior video quality – up to 2560 x 1600 @ 60Hz
Computer selection via Remote Port Selector
OS Support: Windows, Mac and Linux
Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
Supports microphone and speakers
The USB ports can be used for USB peripheral sharing**
Supports USB hot-plugging
HDCP Compatible
Bus-powered

*DisplayPort Dual-Mode (DP++) requires the use of a powered DP++ adapter. The graphics source must be DP++ compliant.
** The CS22DP may require an external power supply via a micro USB port

Specifications

Computer Connections	2
Port Selection	Remote Port Selector
Connectors

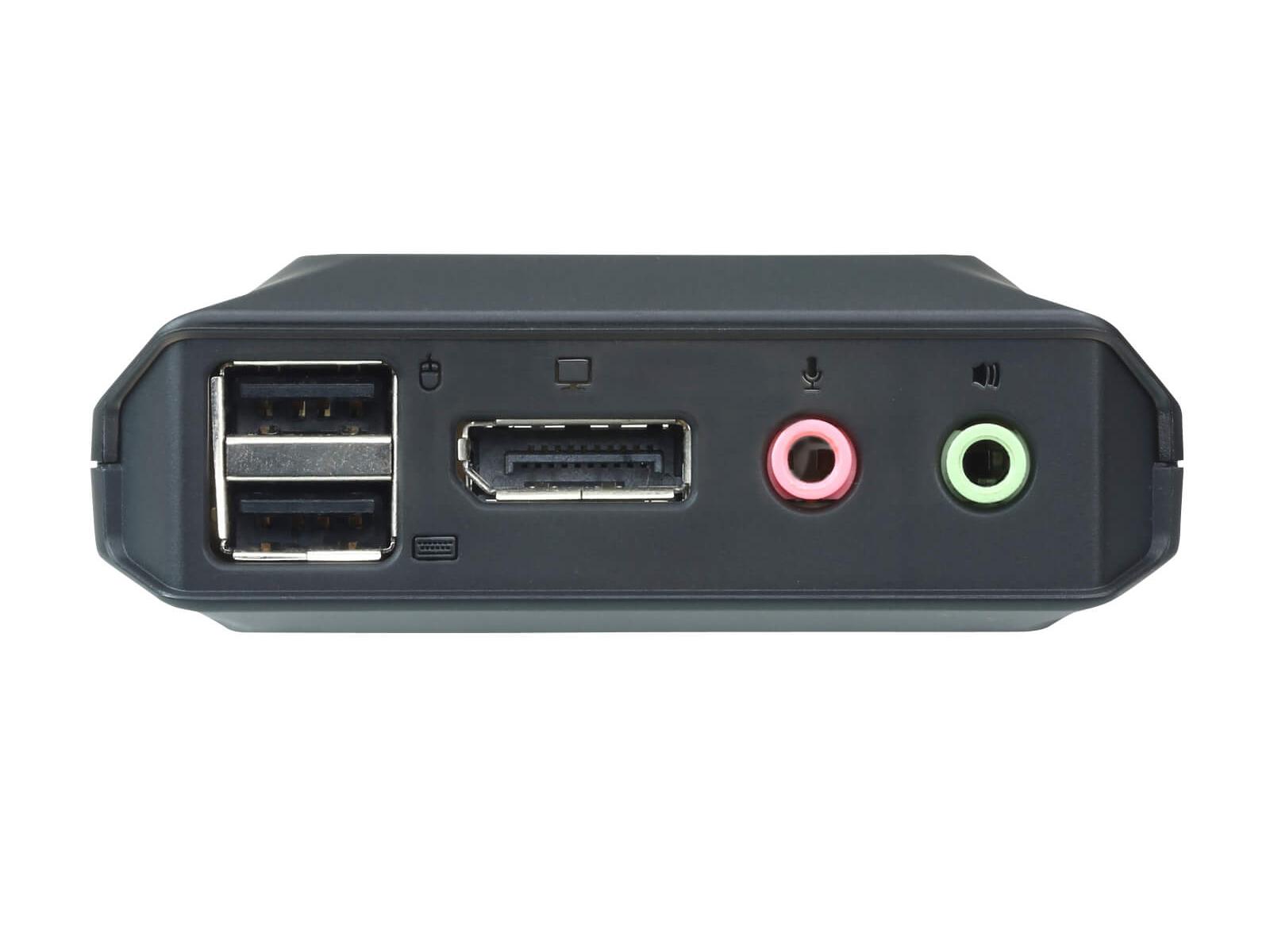

Console Ports	1 x DisplayPort Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

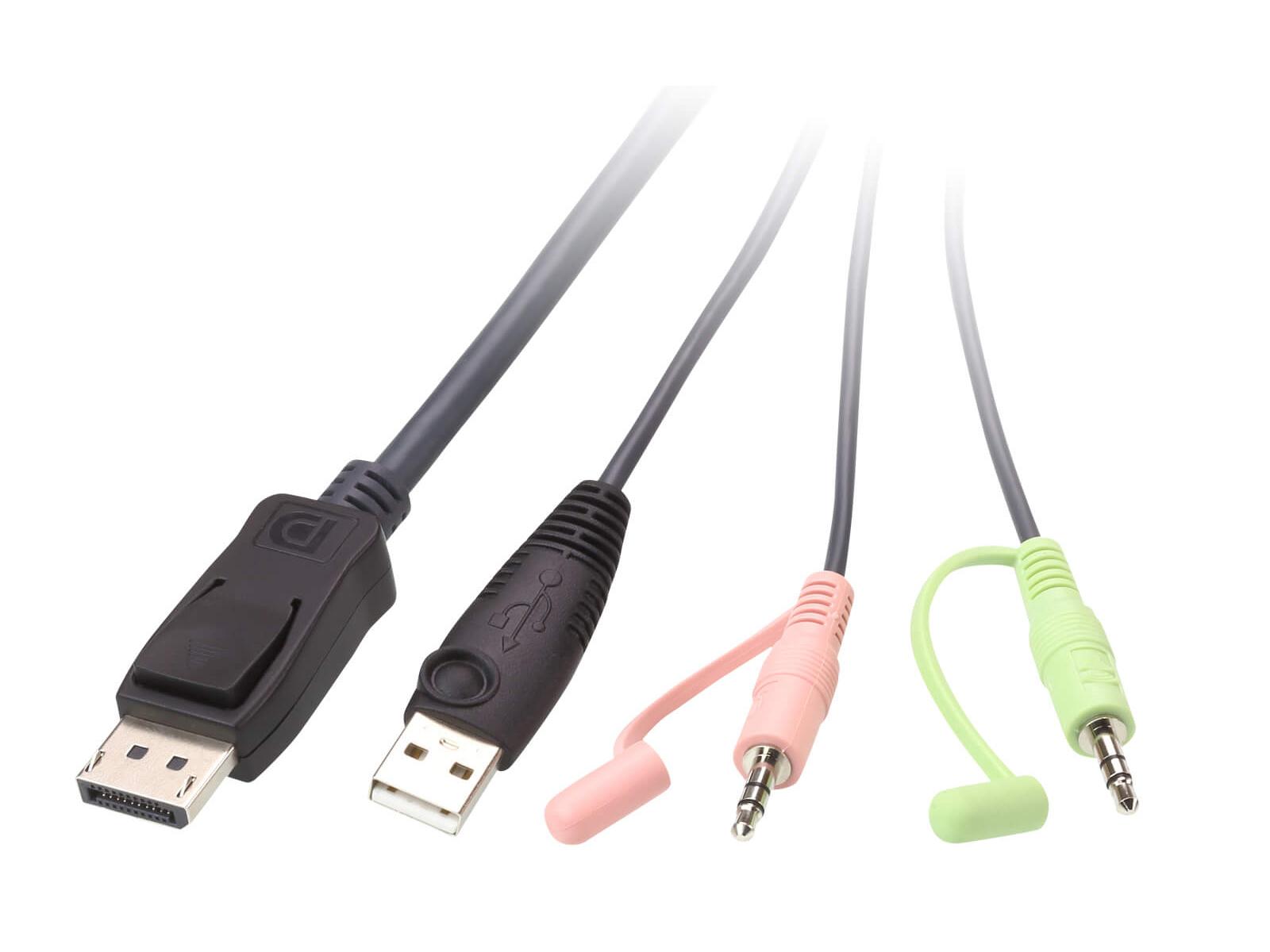

KVM (Computer) Ports	2 x DisplayPort Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Power (Optional)	1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected)	2 (White)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	N/A
Video	2560 x 1600 @ 60Hz
Power Consumption	DC 5V, 6.5W
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.35 kg ( 0.77 lb )
Dimensions (L x W x H)	8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
