Description

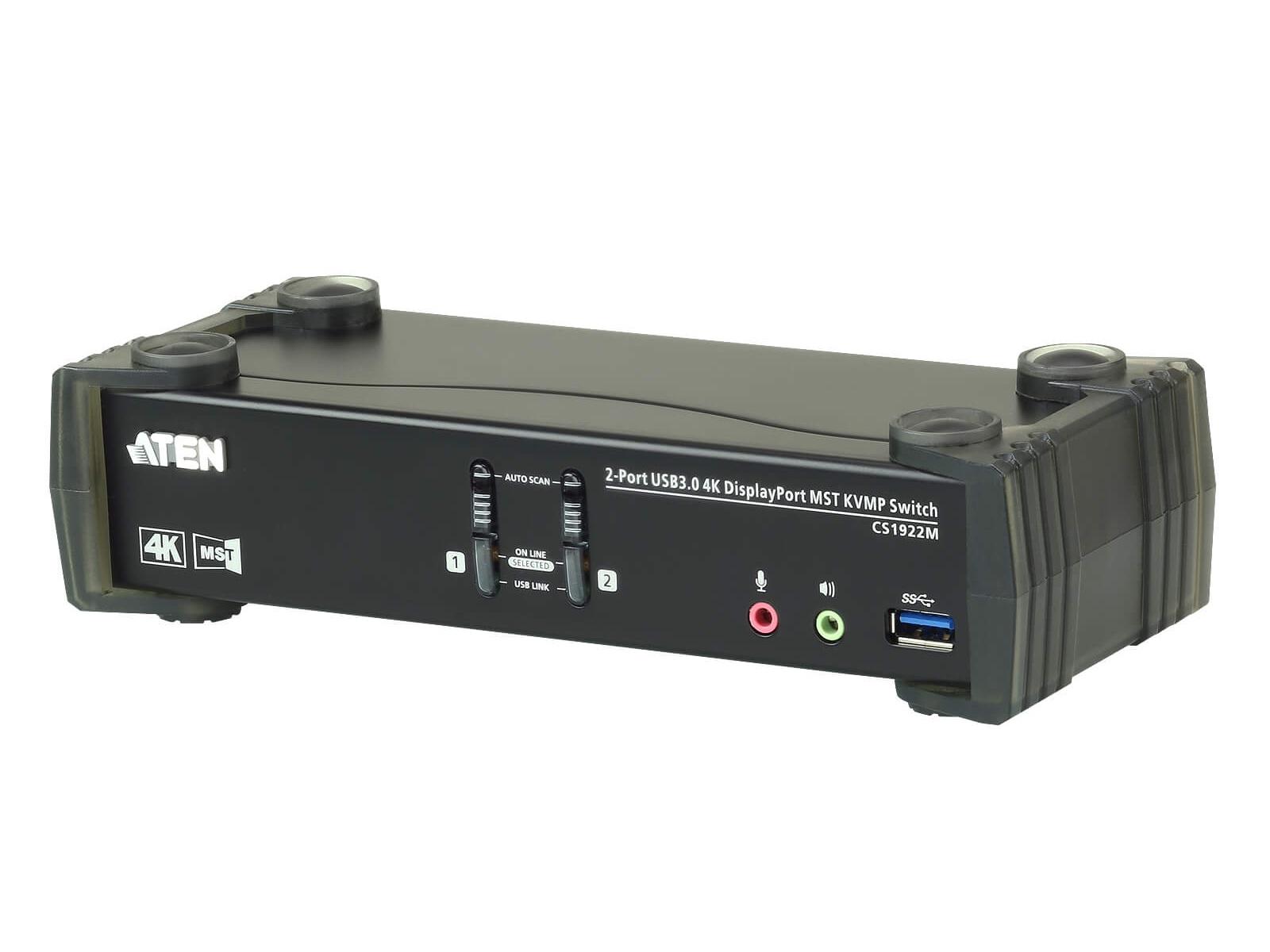

The CS1922M is a 2-port DisplayPort 1.2 KVMP switch that integrates a built-in MST hub to provide dual-display capability from a single DP source. It enables extended desktop or splitter modes at up to 4K 60Hz and consolidates keyboard, video, mouse and USB peripherals into a single compact unit. The unit targets users who need dual-monitor workflows while minimizing cabling and peripheral clutter.
Key features include an integrated Multi-Stream Transport hub, a 2-port USB 3.1 Gen 1 hub delivering up to 5 Gbps, and independent focus switching between KVM, USB hub and audio. The CS1922M supports MST mode, Splitter mode and Single Port mode, and offers DisplayPort Dual-Mode (DP++) compatibility for HDMI or DVI use via passive adapters when supported. Firmware is upgradeable and the unit supports hot-plugging for easy maintenance.
Performance specifications include DisplayPort 1.2 compliance, HDCP support, and video capability to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz). The device supports HD audio via DisplayPort and provides full bass response for 2.1 channel systems. Keyboard and mouse emulation ensure reliable control even during fast switching operations.

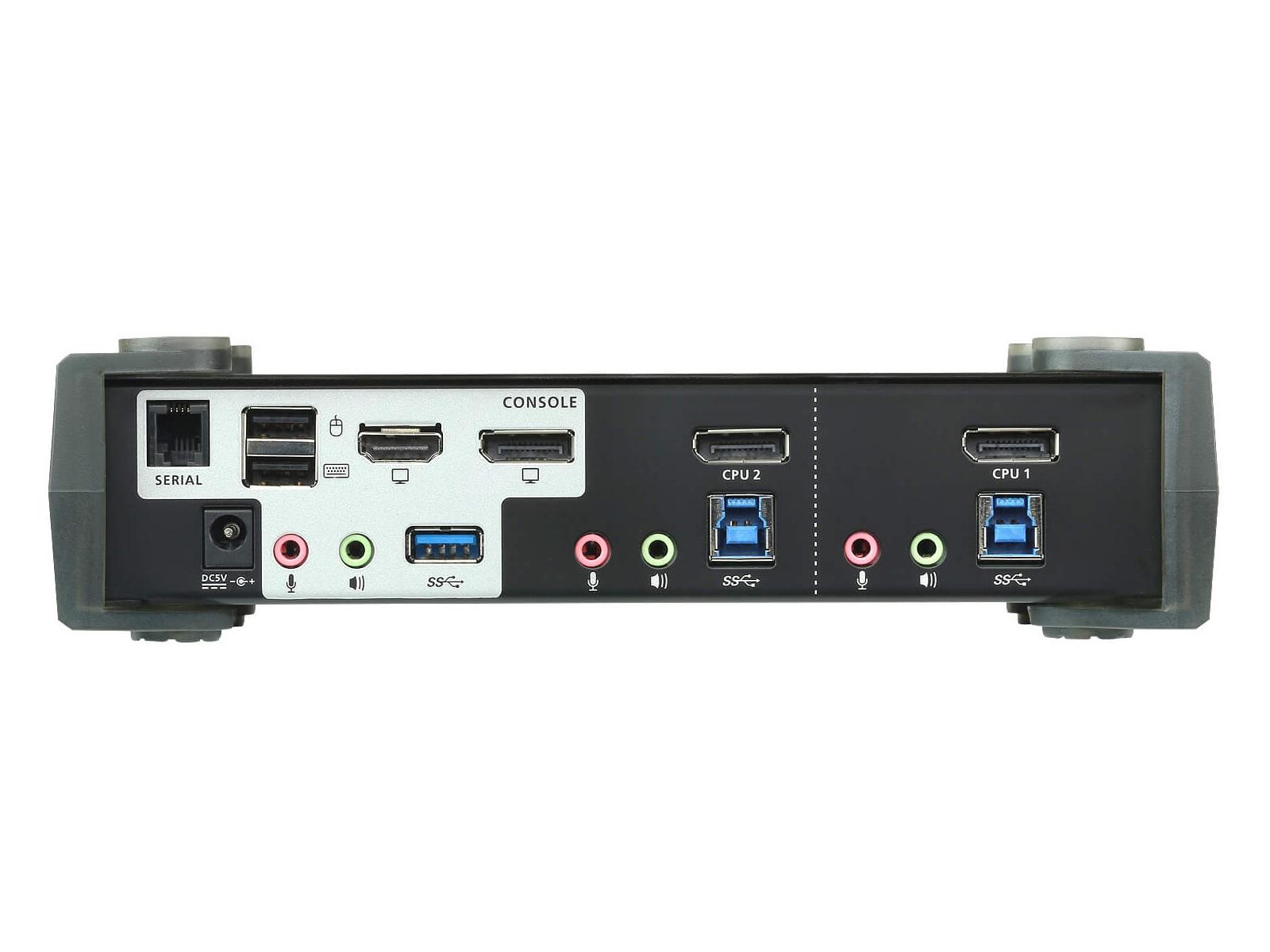

Connectivity covers two computer connections with DP and USB3 Type B connectors, console outputs including DisplayPort and HDMI monitor outputs, two USB Type A hub ports, dual line-in/out 3.5mm audio jacks and an RJ-11 connector for remote console control. Port selection is available via front panel pushbuttons, hotkeys, mouse switching and RS-232 commands. The CS1922M is multi-platform compatible and supports Windows, Mac and Linux environments.

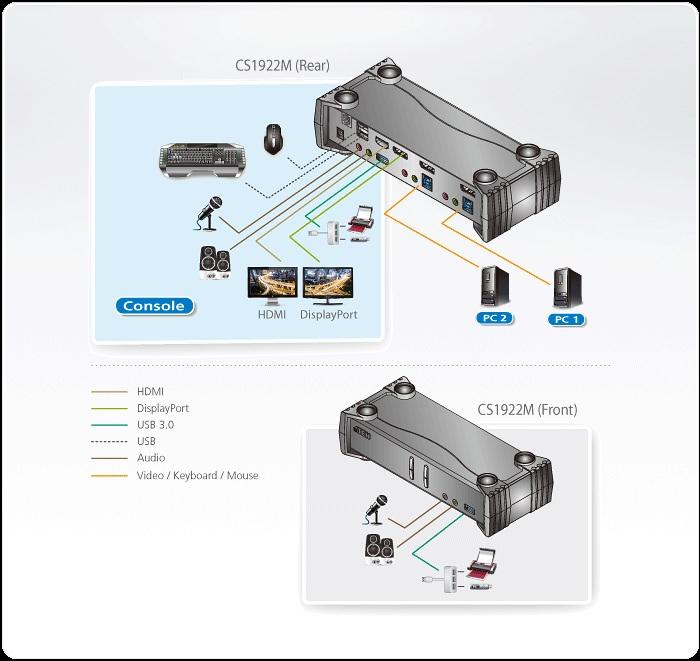

Typical applications include graphic design and video editing desks that require dual 4K displays from a single workstation, control rooms that need compact KVM consolidation, and shared workstation setups where high-speed USB peripherals must be switched between systems. The independent USB focus allows peripherals such as storage or printers to remain connected to a separate host while keyboard and mouse control a different machine.

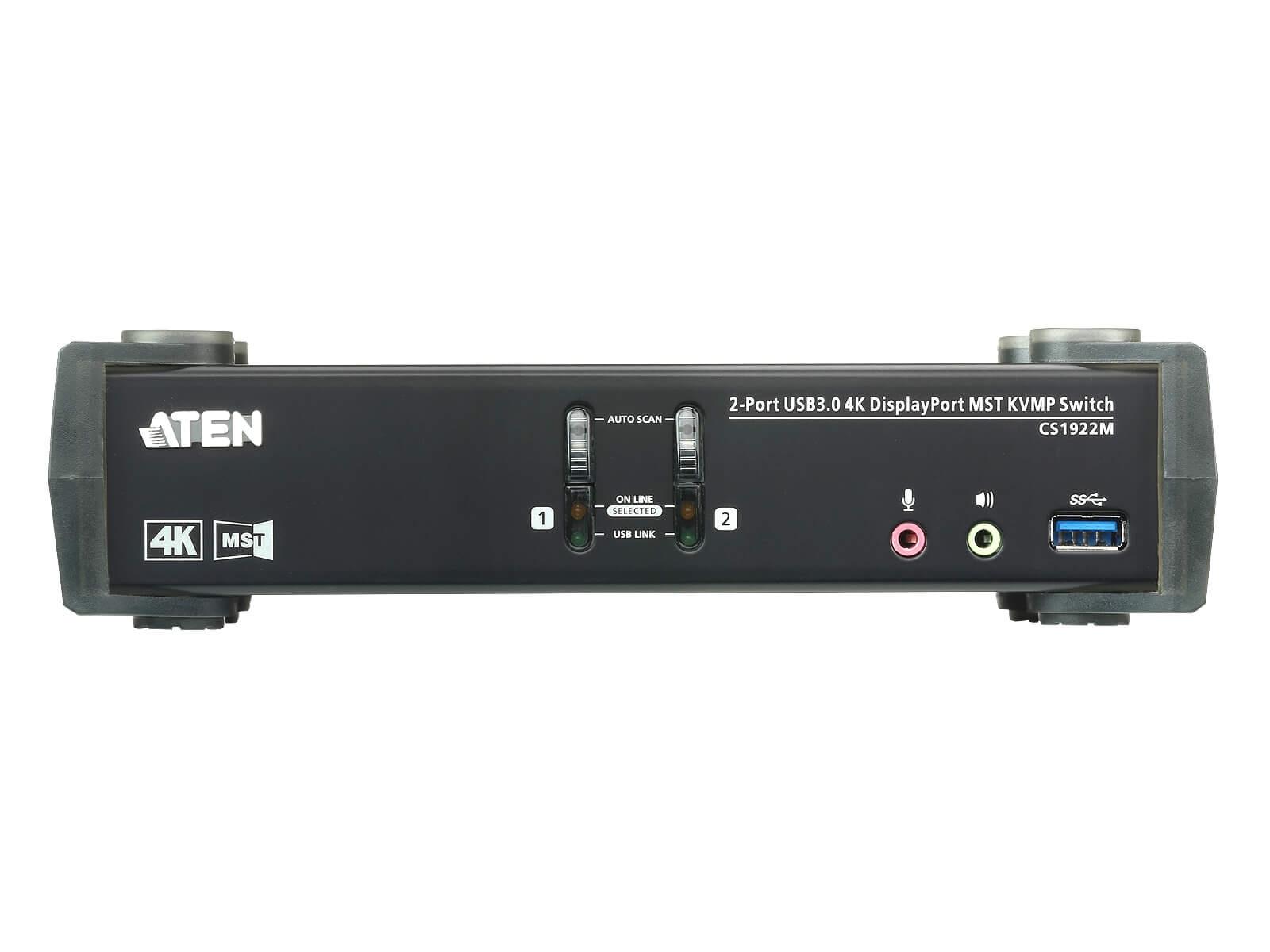

Installation and daily operation are straightforward thanks to front panel controls, hot-pluggable connections and auto power-on detection that switches to the next powered system automatically. The metal and plastic housing, compact footprint and firmware upgradeability make the CS1922M a practical choice for professional AV environments. The unit is designed to deliver reliable video quality and fast data transfer for demanding workflows.
