Description
The CS1794 is a 4-port HDMI USB 2.0 KVMP switcher designed to consolidate multiple HDMI sources onto a single USB console. It allows one keyboard/mouse/monitor to control four HDMI-enabled computers or devices and shares two USB 2.0 peripherals. The unit combines space-saving desktop design with AV-grade signal handling for SOHO and small production environments.
Core features include independent switching of KVM, USB peripheral, and audio focus via front-panel pushbuttons and keyboard hotkeys. Video DynaSync stores the console monitor EDID to optimize display resolution and eliminate boot-up display issues. The CS1794 is HDCP-compliant and supports embedded digital audio including Dolby True HD and DTS HD Master Audio.
Video performance supports common HDTV and PC resolutions including 480i, 480p, 720p, 1080i, 1080p and up to 1920 x 1200 (DVI). Power consumption is DC 5.3 V, 4.8 W and the scan interval is user-settable from 1 to 99 seconds. Complete keyboard and mouse emulation ensure error-free booting and broad peripheral support.

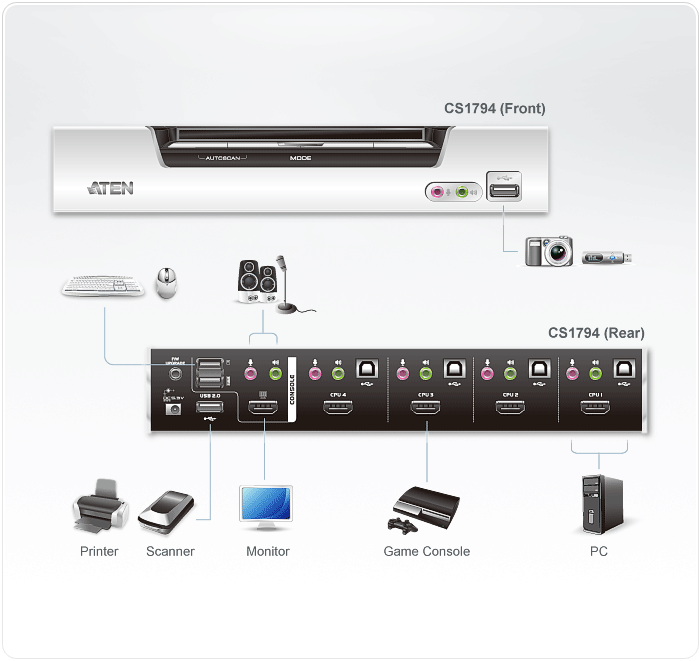

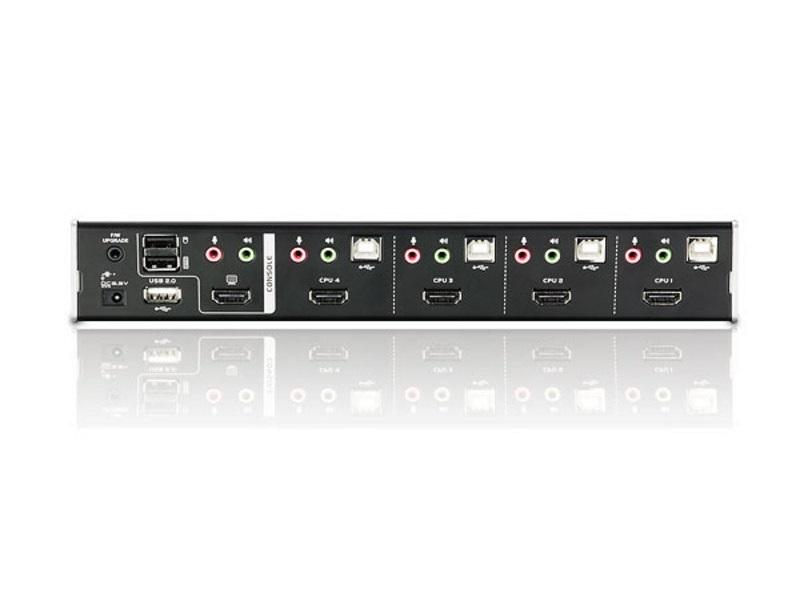

Connectivity includes four HDMI inputs, four USB Type B KVM ports, HDMI Type A console output, two USB Type A console hub ports (front and rear) and stereo audio in/out jacks. The console uses USB Type A for keyboard/mouse connections and supports Windows, Mac and Linux platforms. A firmware upgrade port is provided for future enhancements.
The CS1794 is well suited to desktop multimedia setups, small broadcast desks, gaming rigs requiring quick source access and content creation workstations where multiple PCs need to be controlled from a single console. Auto power-on detection will switch to the next active computer if one source is powered down. Auto-scan mode allows unattended monitoring of all connected systems.

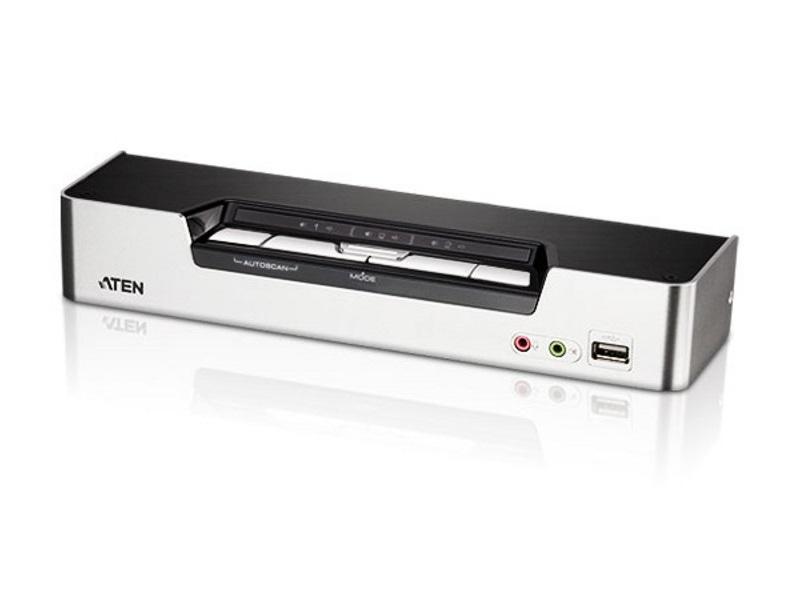

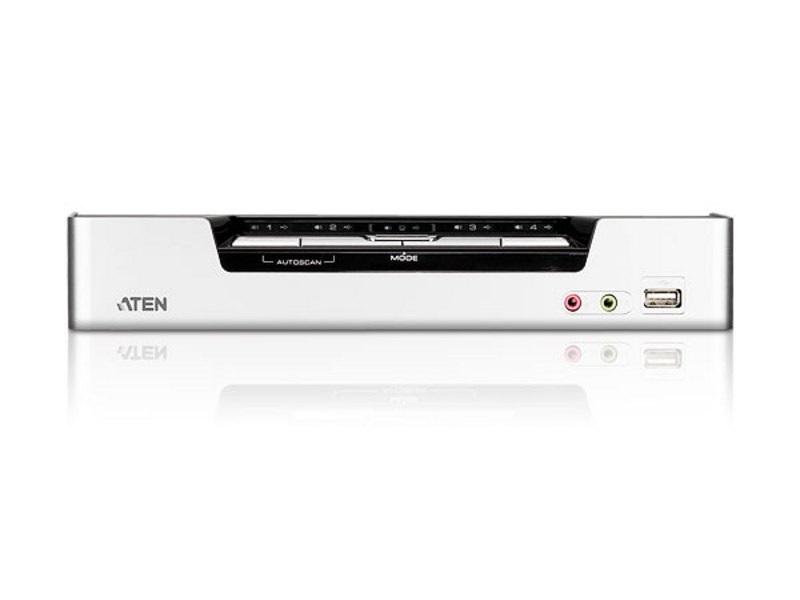

Installation is straightforward – connect HDMI and USB KVM cables, attach peripherals and power the device. The housing combines metal and plastic for a balance of durability and light desktop footprint. LED indicators clearly show active KVM, USB and audio focus for simplified operation.
