Description

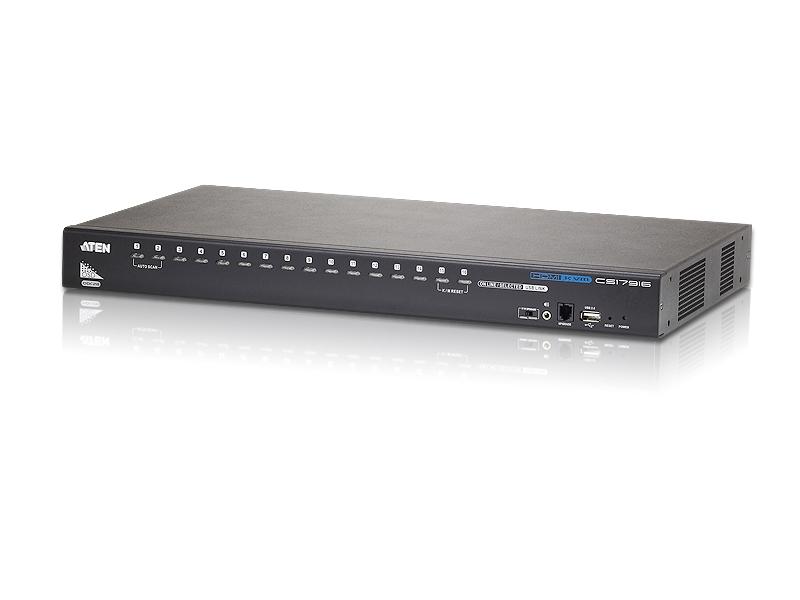

The CS17916 is a 16-port USB HDMI KVM switcher that consolidates control of multiple HDMI-equipped computers to a single USB keyboard, USB mouse, and HDMI monitor – it is designed to simplify multi-system access in AV, broadcast, and IT environments. The unit supports cascading to expand control capacity and offers multi-display stacking for installations where each host may present multiple video outputs. The switcher provides audio support and a built-in USB 2.0 hub for peripheral sharing.
Key features include on-screen display (OSD) computer selection, front-panel pushbuttons, and hotkey switching – administrators can back up and restore OSD settings for repeatable configurations. The CS17916 supports ATEN Video DynaSync to maintain optimal resolution and eliminate boot-up display issues when switching ports. Firmware upgradeability and HDCP compatibility are included to keep the unit current with system requirements.
Performance-wise the switcher supports video resolutions up to 1080p / 1920 x 1200@60Hz and widescreen formats – this ensures accurate monitoring across standard HD and UXGA workflows. Audio is enabled for 2.1 channel systems and features front-panel console audio ports for easy access. Scan interval and auto-scan modes provide continuous monitoring options and selectable scan timing from 1 to 255 seconds.

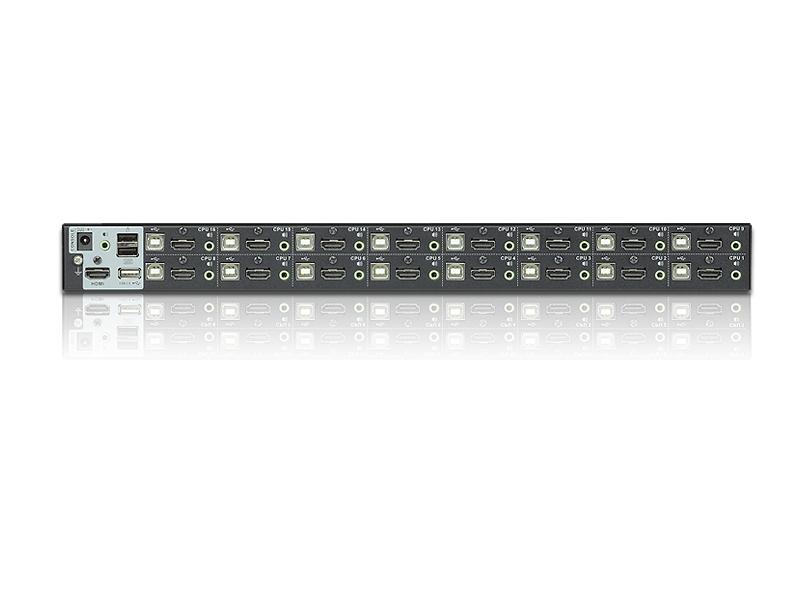

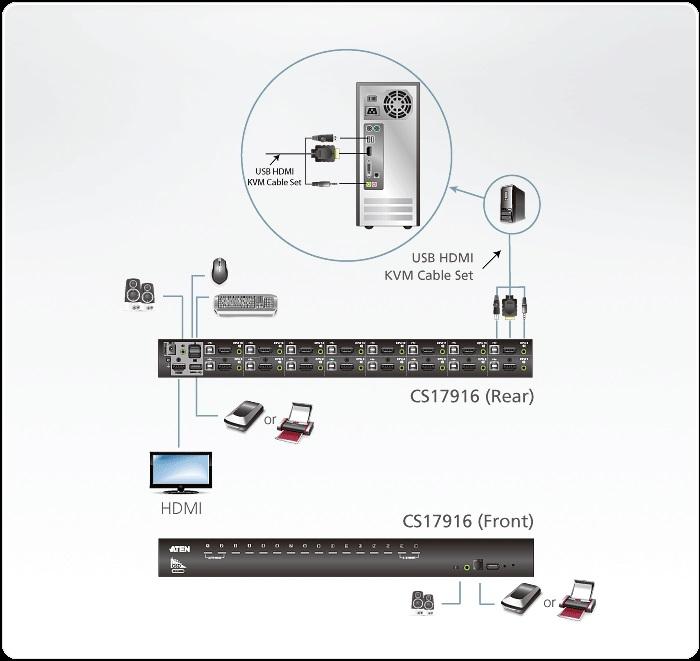

Connectivity is comprehensive – the console presents HDMI video and USB Type A keyboard/mouse connectors while each host is connected via HDMI and USB Type B KVM ports plus a dedicated audio jack. A two-port USB 2.0 hub on the unit allows sharing of additional USB devices between computers. The CS17916 supports Windows, Linux, Mac, and Sun platforms and includes Mac/Sun keyboard emulation where applicable.
The CS17916 fits applications that require centralized control of many systems such as broadcast control rooms, production suites, monitoring stations, and server rooms where quick access to multiple HDMI sources is needed. It is suitable for environments that require audio monitoring alongside video switching and for setups that benefit from cascaded expansion up to 256 computers. Multi-display stacking also enables side-by-side comparison or multi-monitor surveillance of outputs from multiple hosts.
Installation and operation are straightforward – metal housing and rack-friendly dimensions provide a durable platform for 24/7 operation while front-panel pushbuttons, LED indicators, and multilingual OSD make day-to-day operation efficient. OSD Backup/Restore and firmware upgrade functions ease lifecycle management and deployment across multiple installations. The overall design emphasizes reliable switching, compatibility, and simplified user control.
