Description

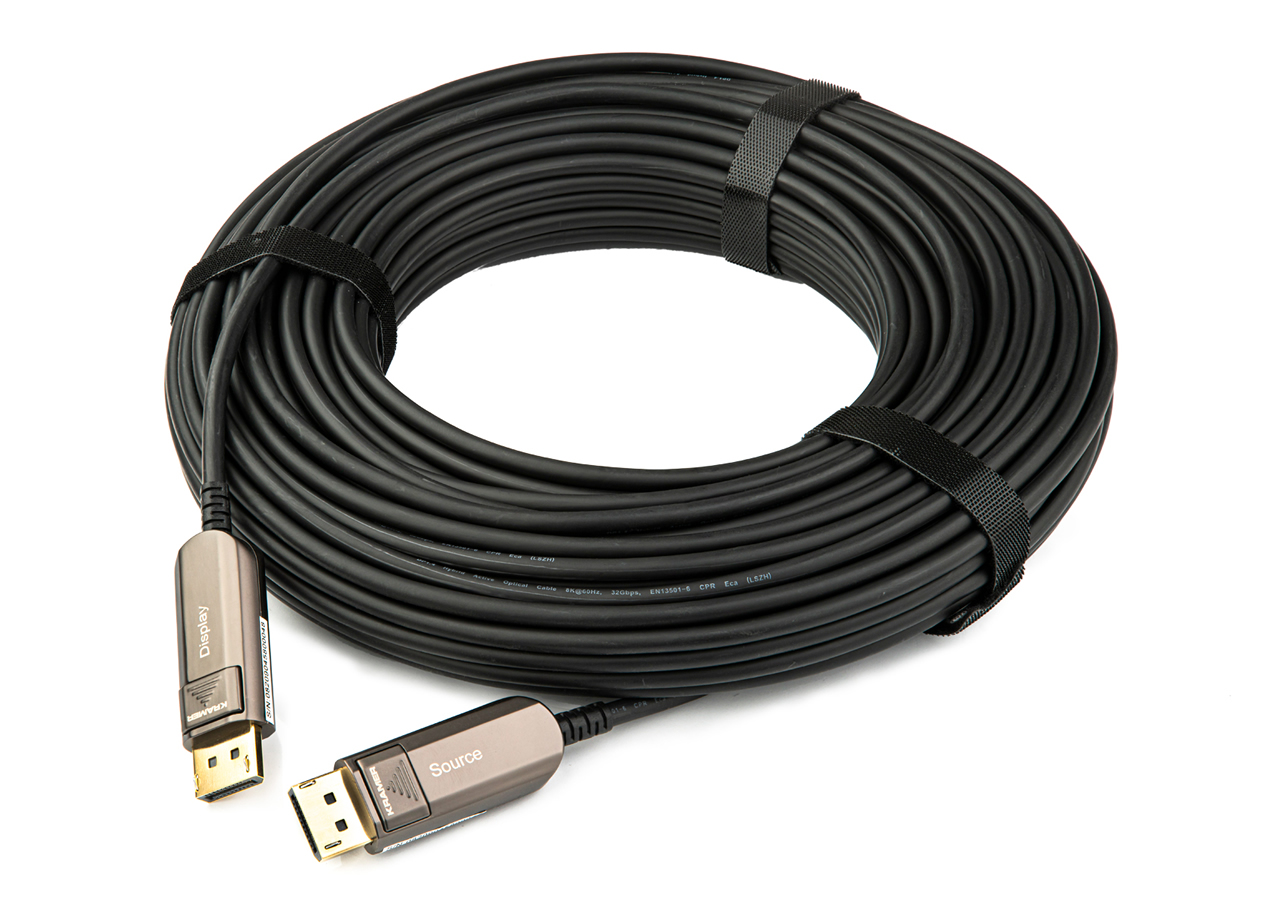

The CP-AOCDP/UF is a DisplayPort 1.4 active optical cable designed to deliver high-resolution video and multi-channel audio over long plenum-rated runs. It provides 8K@60Hz video capability and supports modern DisplayPort features to maintain signal integrity across extended distances. The cable is thin, flexible and intended for installations where fire-safe plenum cabling is required.
Key features include support for HBR3 data rates, Display Stream Compression (DSC) and HDCP compliance to enable protected content. The hybrid optical construction reduces weight and bulk while maintaining up to 32.4 Gbps aggregate throughput. The cable requires no external power and draws necessary power from the DisplayPort connector on each end.
Performance specifications include support for 8K@60Hz resolution at 48bit color depth and a maximum data rate of 32.4 Gbps. Audio support covers up to 8 channels of 16bit or 24bit linear PCM at sampling rates from 32 to 192KHz. The fiber core uses 4x850nm multimode fibers combined with copper conductors to carry auxiliary signals and power.
Connectivity is provided via male gold-plated DisplayPort connectors and a hybrid cable structure combining fiber and copper conductors. The cable construction includes a plenum-rated outer sheath in PVC black with a 4.8mm overall diameter. It supports EDID, DPCP and HDCP 2.2 for broad compatibility with source and display equipment.
Typical use cases include digital signage, conference room AV, broadcast monitoring and long-run display installations in commercial environments where plenum-rated cabling is required. The cable is suitable for connecting DP 1.4 sources to compatible displays or AV extenders where preserving high-resolution content across distance is necessary. It supports 3D formats and compressed streams when DSC is enabled.
Installation is simplified by the cable’s thin 4.8mm profile and flexible construction, allowing easier routing in tight spaces and conduit. The cable meets LSHF standards EN 60332-1-2 and EN 50399 and is RoHS 2011/65/EU compliant for regulatory confidence. Overall, the CP-AOCDP/UF balances long-distance DisplayPort performance with plenum safety and straightforward installation.
