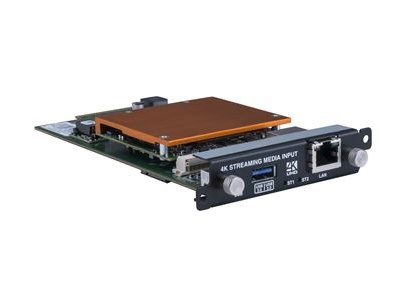

TV One CM-AVIP-IN-1USB-1ETH Streaming Media/4K Playback Module

Description

The Streaming Media Input Module provides CORIOmaster systems with the ability to bring 2 network streams up to 1080p 60 @ 25mbs in to just 1 slot. As well as playback of 4k UHD or 2x 1080p60 video files. The Streaming Media Input Module also supports still images with full 4K rendering. And with at least 40mbs of total bandwidth you can easily provide high quality content to your video wall and projector edge-blend.

Features:

Play two simultaneous channels of media, including IP streams
Primary channel supports up to 4K @30 Hz
Secondary channel supports 1080p @60 Hz
IP streams up to 1080p @60 Hz
Play video clips from USB drive up to 4K @30 Hz
Play still images up to 8K
Supports USB 2.0 and USB 3.0
Play media from streaming server

Specifications

AV over IP

Interface:1 x GbE Ethernet Port
Video Decoding: H.264 (Main, High), MPEG4, H.265/HEVC1 (Main)
Bit Rates: Up to 25Mbs per stream
Colour Depth: 4:2:0, 4:2:2
Supported Resolutions: Configurable to 1920x1080p60
Unicast Streams: RTSP, RTMP, HTTP, MPEG-TS
Multicast Streams: RTSP, MPEG-TS
Control Interface: via CORIOgrapher v2

Media Handling

External: 1x USB 3.0 Interface
Supported devices: Flash file systems FAT, FAT32, ext3, ext4, NTFS
Internal: High speed storage up 128GB3 Remote File transfer supported3 Maintenance through CORIOgrapher v2
Remote: File transfer supported3
Maintenance: through CORIOgrapher v2

Media/Images

Interfaces: USB3.0, Internal Storage, Network
Video Codecs: H.264 (CBP, Main, High), H.265/HEVC1 (Main)
Video Formats: mp4, mov, mkv, m4v, ts, mts, m2ts, mt2
Playback Bit Rates: Single stream to 100Mbs, Dual Streams to 40Mbs
Still Image: JPEG, PNG, BMP
File Playback Resolutions: Supported
Up to 3480x2160 @ 30fps: Up to 1
Up to 1080p60@60fps: Up to 2
Up to 7680 x 4320: Still Images2
Playback Interface: via CORIOgrapher v2
