Description

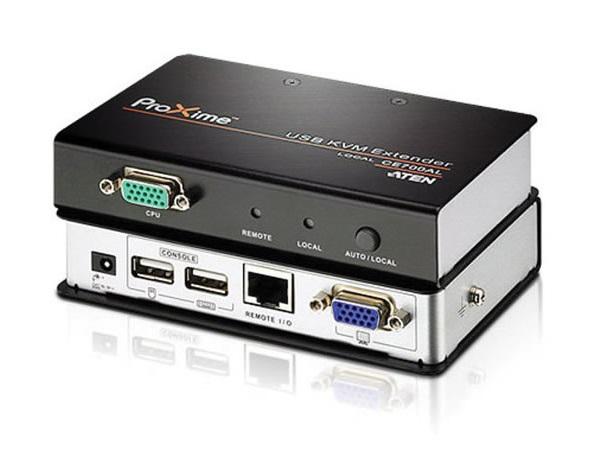

The Aten CE700A USB KVM Extender allows access to a computer system up to 492.1′ away from a remote USB console (USB keyboard, monitor, and USB mouse and has built-in ESD and surge protection. The CE700A also incorporates 8KV/15KV ESD protection and 2KV surge protection while providing up to 1920 x 1200 resolution. It uses Cat 5e cable for data transfer connection and is able to sense the distance to the system and automatically adjust the gain accordingly. Additionally, it features a custom ASIC to ensure compatibility. Local and remote units connect at distances up to 492.1′ using Cat 5e cable Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles Built-in ASIC for greater compatibility Auto signal compensation (ASC) USB keyboard and USB mouse ports USB overcurrent detection and prevention Pushbutton operating mode selection (local unit only) – select between local and auto operating modes Built-in 8KV/15KV ESD protection (contact voltage 8KV; air voltage 15KV) and 2KV surge protection Automatic gain control – adjusts signal strength to compensate for distance Supports widescreen formats Note: The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an optional EDID emulator. Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisync monitors; local monitor supports DDC, DDC2, and DDC2B Rack mountable No software required – connecting cables to the devices is all it takes Multiplatform support – Windows, Linux
