Description

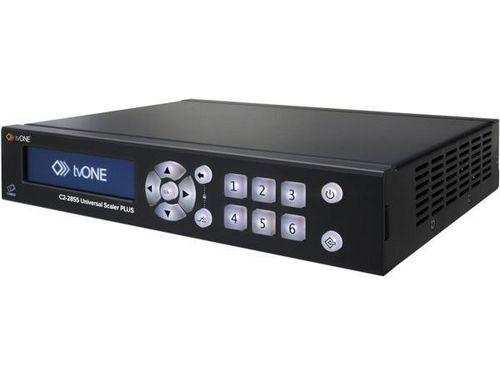

The C2-2855 Universal Scaler PLUS is a multi-format video scaler and format converter designed to convert and scale SD, HD and 3G-SDI signals alongside HDMI, DVI-U and analog video. It provides precise scaling up to 1080p and supports a wide range of input and output formats for professional display systems. The unit stores settings in non-volatile memory for reliable recall after power cycles.
Key features include up/down/cross conversion, motion compensation, diagonal interpolation and temporal interpolation to maintain image integrity during conversion and frame-rate changes. The scaler supports 4:4:4 chroma sampling for RGB sources and 4:2:2 sampling for SDI, YC and CV sources. A 3:2 pulldown function and advanced deinterlacing improve NTSC image quality.
Technical performance covers SD/HD/3G-SDI, HDMI and DVI-U digital I O plus analog YUV/YPbPr, RGB, composite and YC connections. Output resolution options include PC modes to 1920×1080 over analog and up to 1920×1200 over HDMI/DVI. HDCP 1.4 support and full bandwidth chroma sampling ensure color fidelity and compliance where required.

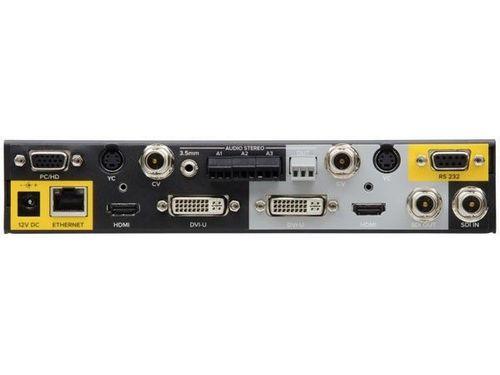

Connectivity includes multiple digital and analog inputs and outputs, an integral 4×1 stereo audio switcher, embedded audio support for HDMI/DVI-U/SDI outputs and control ports for RS232 and IP-based remote management. The front-panel OLED display and color-modulated backlit controls simplify local setup and monitoring. An optional 19 inch rackmount kit is available for rack installation.
Typical use cases include digital signage scaling, live event signal conversion, broadcast and presentation systems where multiple source types must be standardized to a single display format. The PIP, keying and transition features allow compositing and smooth source switching in production and staging workflows. Genlock support enables precise synchronization with other equipment in complex systems.
Designed for continuous commercial operation the C2-2855 provides durable construction and automatic restoration of the last saved configuration. Twelve user presets allow fast recall of complex setups and advanced features such as AutoSet and variable zoom/shrink simplify integration of computer and video sources. The unit is intended for system integrators and AV professionals requiring reliable multi-format scaling and conversion.
