RTS BTR-80N-HE UHF base station 2ch band HE, 4M headset

Description

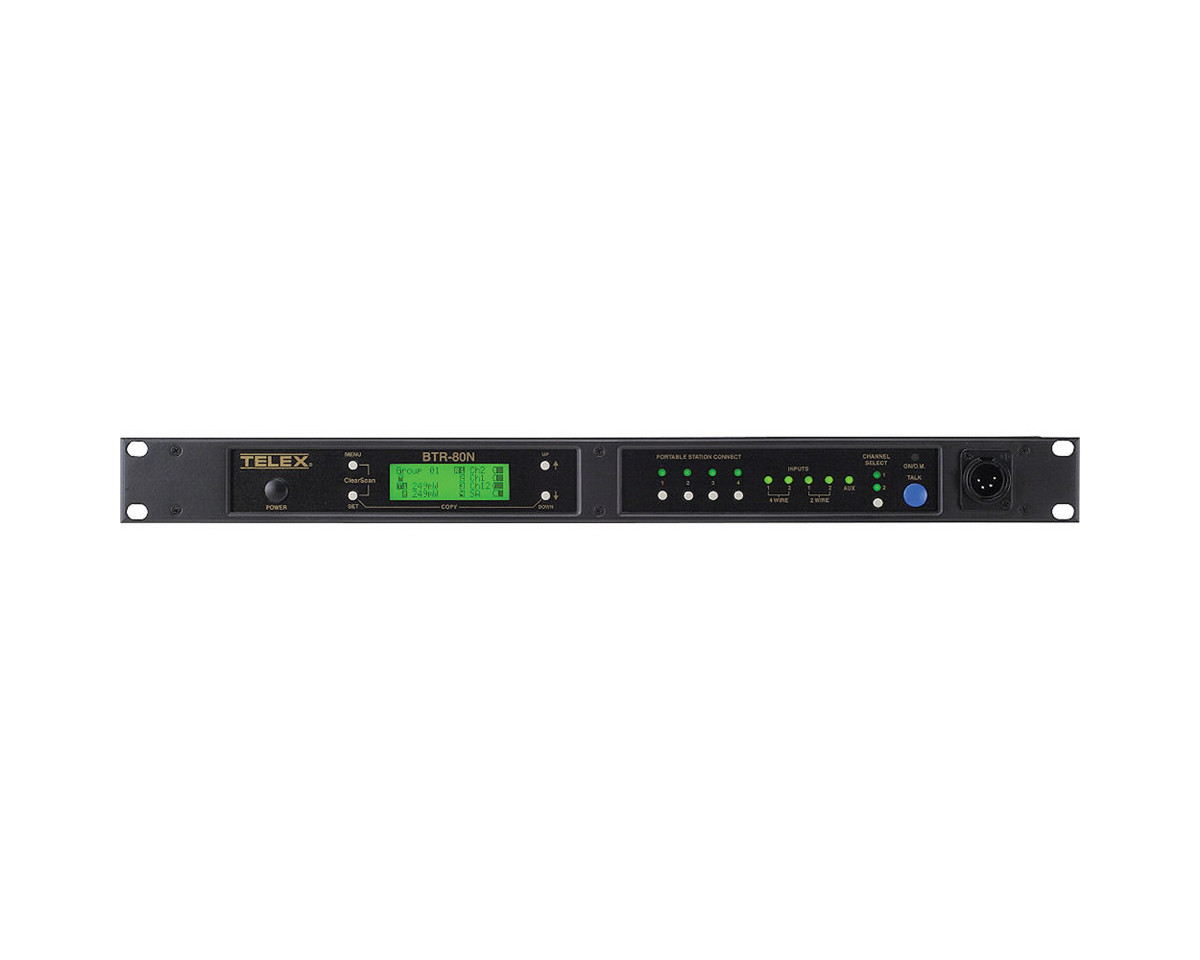

The Telex BTR-80N 2-Channel UHF Base Station (A5F RTS, C3: 554-572MHz Transmit/650-668MHz Receive) is a 2-channel, frequency-agile UHF wireless intercom base station with channel access from each of 4 full-duplex beltpacks, stage announce output with relay closure, wireless talk around (ISO), the patented Enhanced ClearScan channel search feature, and a talk/listen headset station at the base.

The BTR-80N features a transparent graphical user interface and a backlit display, with advanced technology functions such as combination tone code/RF noise squelch and DSP digital audio processing

Features

Improved narrow band wireless delivers an unprecedented 25kHz of modulated band width, allowing more users per channel in the cramped UHF spectrum.
Wireless UHF intercom base station with frequency agility, full-duplexing, and huge selection of available frequencies organized in independent 18 MHz bands
Factory selected preset frequency groups, 1000′ operating range, Transmit power level switch
Independent front Portable Station enable/disable buttons with LED status indicators, front panel headset connector reads dynamic or electret headset boom mic types automatically
Enhanced ClearScan 2-button frequency selection for optimal, interference- and intermodulation-free location use, ranks available frequencies in order of reliability
Simultaneous support of up to 4 beltpacks, expandable
Large backlit LCD, transparent, menu-driven graphic user interface for simplified navigation and assignment
Full function talk/listen headset station with dedicated headset and boom mic volume and gain controls ,allows for fifth simultaneous user(director, producer, engineer) on intercom channel

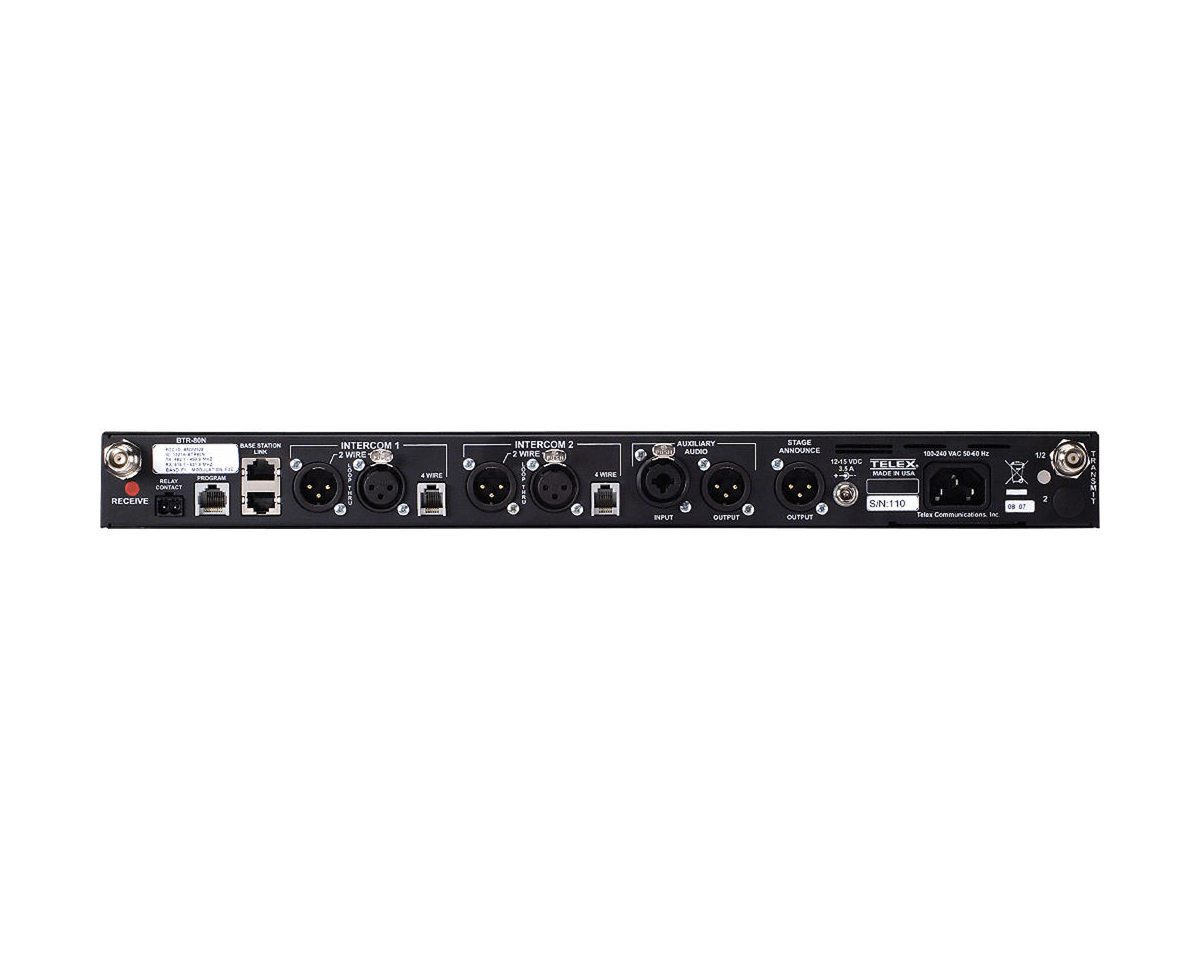

Compatibility with Audiocom, Clear-Com, RTS/RTS matrix wired and wireless intercoms, dedicated 2-wire XLE and 4-wire RJ-11 connectors
Dual voltage power supply for international use, XLR balanced auxiliary audio input and output connectivity

Specifications

Specification	Details
Transmit Power	Selectable: (BTR-80N: 249 mW - 10 mW, TR-80N/TR-82N: 100 mW – 5 mW)
Frequency Band of Operation	482 – 698 MHz (TV 16 to TV 36 and TV 38 to TV 52)
Power Requirements	100-240 VAC, 50-60 Hz; 12-15 Volts DC
Wireless Technology	UHF
Operating Temperature	-20 °C to 55 °C
Form Factor	Rackmount
