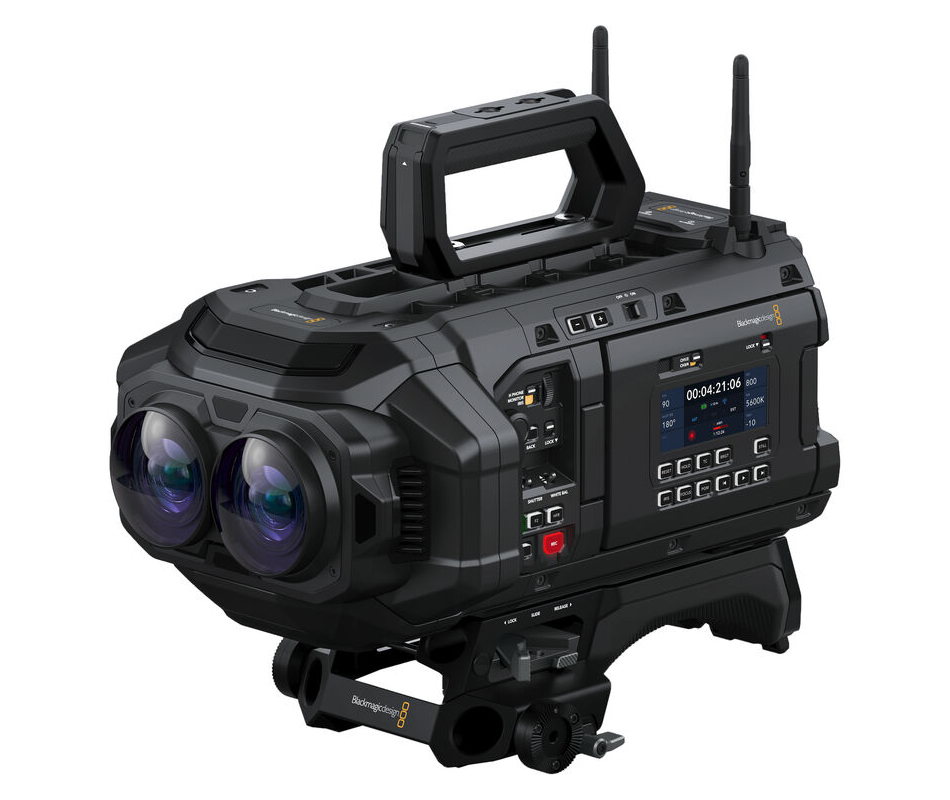

Blackmagic Design BMD-CINEURSAA24DS/IM URSA Cine Immersive Camera

Description

Enter the Realm of 180° Media
Enter the realm of 180° media with the URSA Cine Immersive Camera from Blackmagic Design. The innovative cinema camera boasts Apple Immersive Video support with dual 8160 x 7200 58.7MP sensors capable of capturing immersive 8K images at up to 90 fps and with a whopping 16 stops of dynamic range. The camera is equipped with a wide range of connectivity options, including 12G-SDI, 10G Ethernet, USB-C, and XLR for high-end professional audio capture. It records Blackmagic RAW files and has a convenient fold-out 5″ touchscreen monitor with HDR support.

A set of antennas is included for high-speed Wi-Fi capability, along with a digital download code for DaVinci Resolve Studio editing software. Designed with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate skin, the URSA Cine Immersive provides reliability and easy mobility around the studio and on location. Power may be supplied via the integrated 8-pin LEMO connector on the rear of the camera using optional 12 and 24V power supplies or via the included B-mount battery plate when employing separately available high-voltage batteries like IDX, Blueshape, Core SWX, BEBOB, and more.

URSA Cine Immersive at a Glance
Dual custom lenses for shooting Apple Immersive Video for Apple Vision Pro
Dual 8160 x 7200 (58.7MP) sensors for stereoscopic 3D immersive image capture
16 stops of dynamic range
Lightweight, robust camera body with industry-standard connections
Generation 5 Color Science with new film curve
Each sensor supports 90 fps at 8K captured to a single Blackmagic RAW file
Includes high-performance Blackmagic Media Module 8TB for recording
High-speed Wi-Fi, 10G Ethernet, or mobile data for network connections

DaVinci Resolve Immersive Features
Monitoring on Apple Vision Pro from the DaVinci Resolve Studio timeline
Edit Blackmagic RAW Immersive video shot on URSA Cine Immersive
Immersive video viewer for pan, tilt, and roll
Complete post-production workflow for Immersive with edit, color, audio, and graphics
Export and deliver native files for viewing on Apple Vision Pro

Specifications

Category	Specification
Image Sensor	Dual Large Format Dual 23.66 x 20.88 mm (Large Format) CMOS
Effective Sensor Resolution	58.7 Megapixel
Image Stabilization	Supplies Stabilization Metadata
ISO/Gain Sensitivity	Native in Manual Mode: 200 to 3200
Max Recording Modes	Blackmagic RAW 8K at 24/25/29.97/30/50/59.94/60/23.98 fps
Max Video Output	Up to UHD 4K at 25/24/30/29.97/50/59.94/60/23.98 fps
Media/Memory Card Slot	Single Slot: Blackmagic Media Module [8 TB Maximum]
Video I/O	RJ45 / BNC 2x BNC (12G-SDI) Output 1x RJ45 LAN Output
Mobile App Compatible	No
Battery	B-Mount
Built-In ND Filter	Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 8-Stop (1/256) ND Filters
Capture Type	Video Only
Shutter Type	Electronic Rolling Shutter
Shutter Angle	11.2 to 360°
Signal-to-Noise Ratio	Not Specified by Manufacturer
Advertised Dynamic Range	16 Stops
Maximum Aperture	f/4.5
Still Image Support	No
Focus Mode	Fixed Focus
Video Capture	Blackmagic RAW 8160 x 7200 at 24/25/29.97/30/90/50/59.94/60/23.98 fps
Video Output	3840 x 2160 at 25/24/30/29.97/50/59.94/60/23.98 fps 1920 x 1080p at 59.94/60/23.98/24/25/29.97/30/50 fps
Fast-/Slow-Motion Support	Slow-Motion Only
Built-In Microphone	Stereo
Audio Recording	4-Channel
IP Streaming	Yes
Audio I/O	2x XLR 3-Pin Input 1x 2.5 mm Submini TRS Stereo Headphone Output
Power I/O	1x LEMO 8-Pin (24VDC)
Other I/O	1x BNC (Reference, Timecode) Input 1x Fischer 3-Pin 3x USB-C
Wireless	Wi-Fi Built-In
Monitor	Articulating 5" Touchscreen LCD Resolution: 1920 x 1080
Viewfinder	Optional, Not Included Resolution: 1920 x 1080
Operating Conditions	32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C at 0 to 90% Humidity
Shoe Mount	No
Tripod Mount	No
Lens Accessory Thread	No
Accessory Mounting Thread	4x 1/4"-20 on Camera Body 5x 3/8"-16 on Camera Body
Dimensions (W x H x D)	Not Specified by Manufacturer
Weight	11.9 lb / 5398 g (Body Only)
Package Weight	37.8 lb
Box Dimensions (LxWxH)	22 x 18.25 x 10.5"
