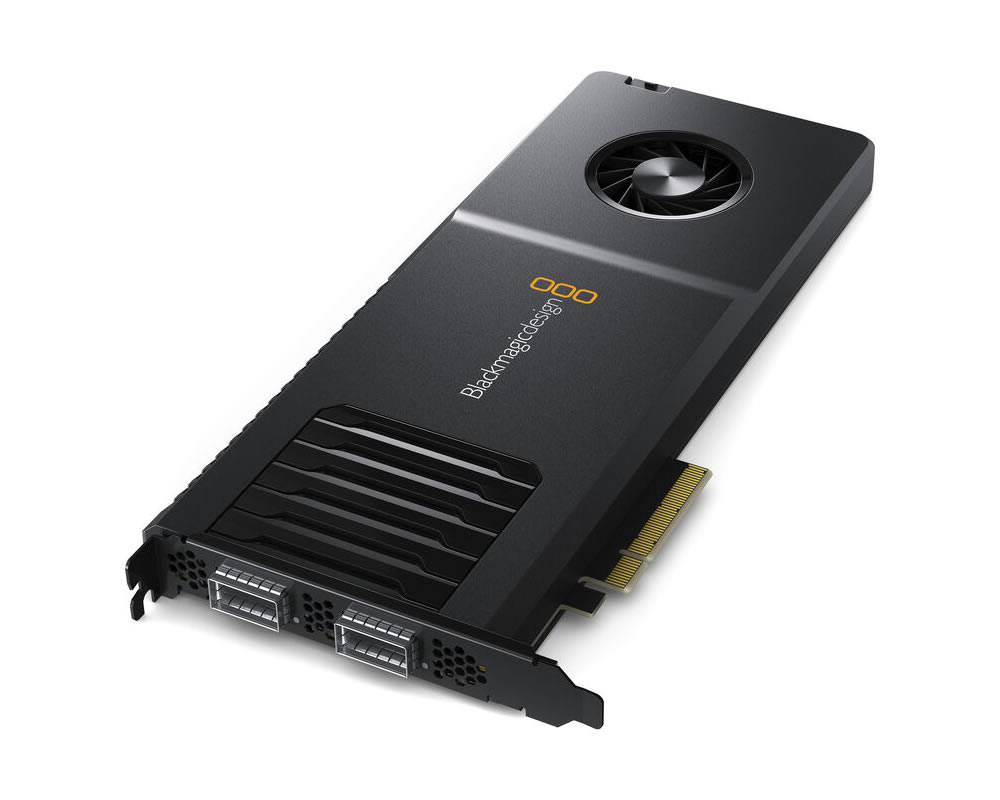

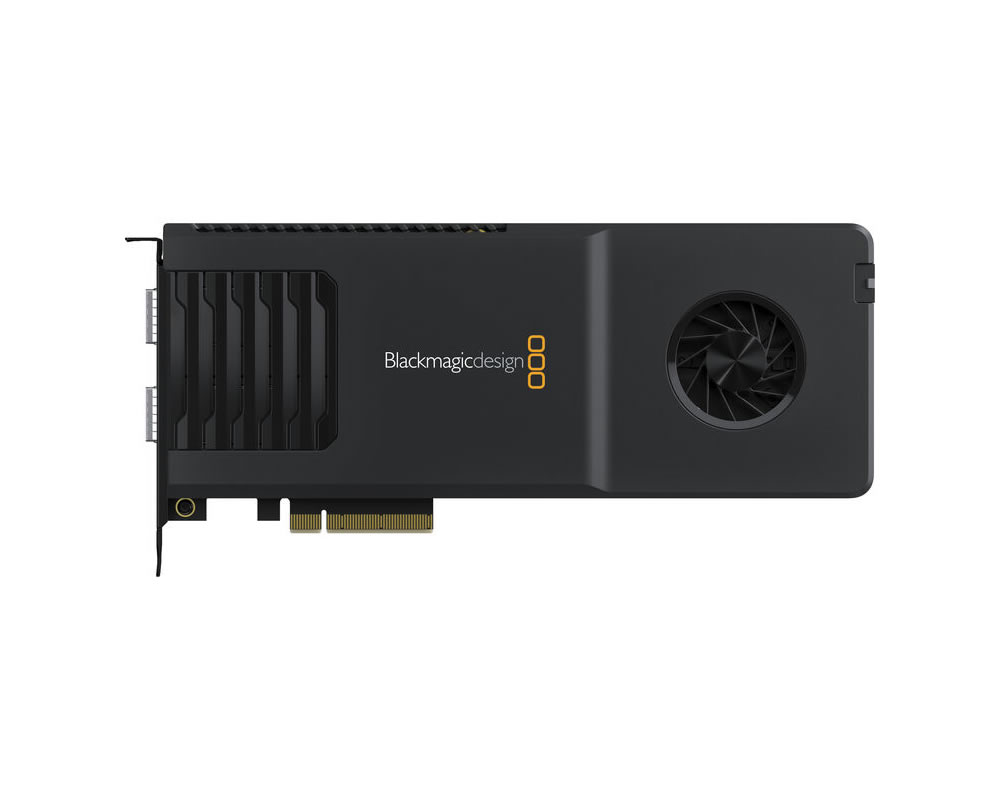

Blackmagic Design BMD-BDLKIPHIP/100G DeckLink IP 100G

Description

The Blackmagic Design DeckLink IP 100G is a PCIe Generation 4 capture and playback card designed for professional broadcast environments using SMPTE 2110 IP workflows.
It supports up to eight simultaneous UHD video channels via dual 100G Ethernet QSFP28 ports with full redundancy.
GPU Direct RDMA enables ultralow latency by allowing direct memory transfers to GPUs, making it ideal for real-time graphics, AI processing, and live compositing.
Compatible with macOS, Windows, and Linux, it works with major video software including DaVinci Resolve, Adobe Premiere Pro, and Avid Media Composer.

Performance & Flexibility

Supports compressed and uncompressed video formats up to DCI 4K at 120 fps with 10-bit 4:4:4 color.
SMPTE 2110 support enables transport of video, audio, and metadata over IP networks with PTP synchronization.
Built-in hardware-level isolation enhances security by protecting against unauthorized access and rogue software.

Advanced Design

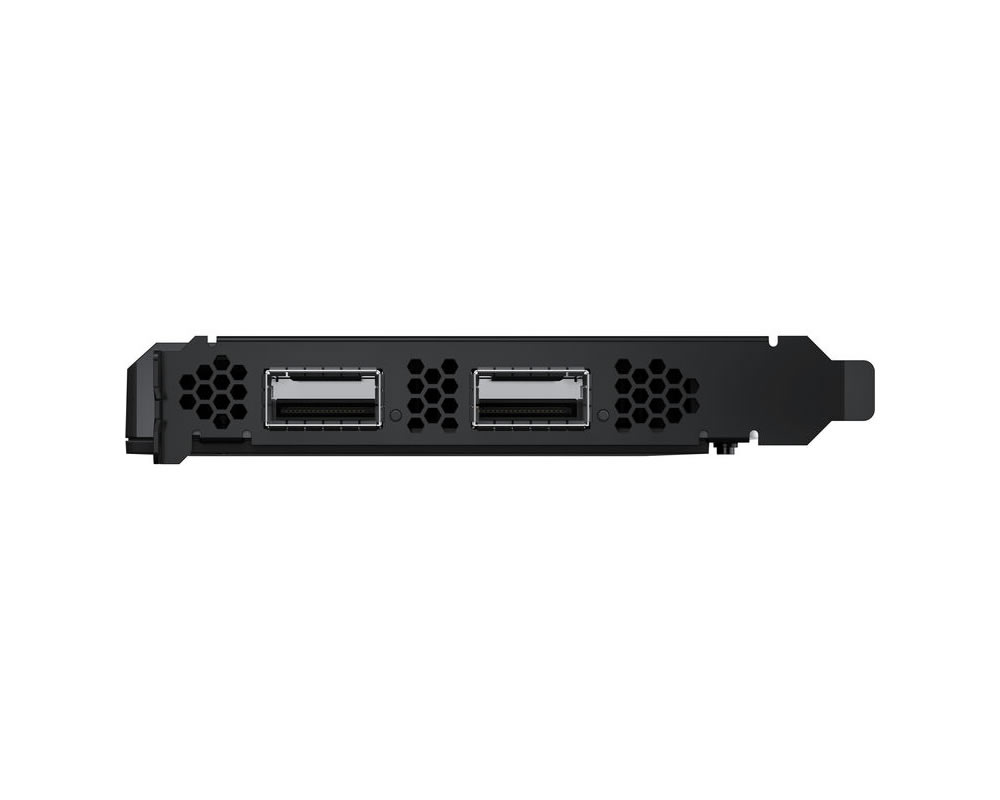

Dual 100 Gb/s QSFP28 Ethernet ports for redundancy
PCIe Generation 4 x8 interface (compatible with x8 and x16 slots)

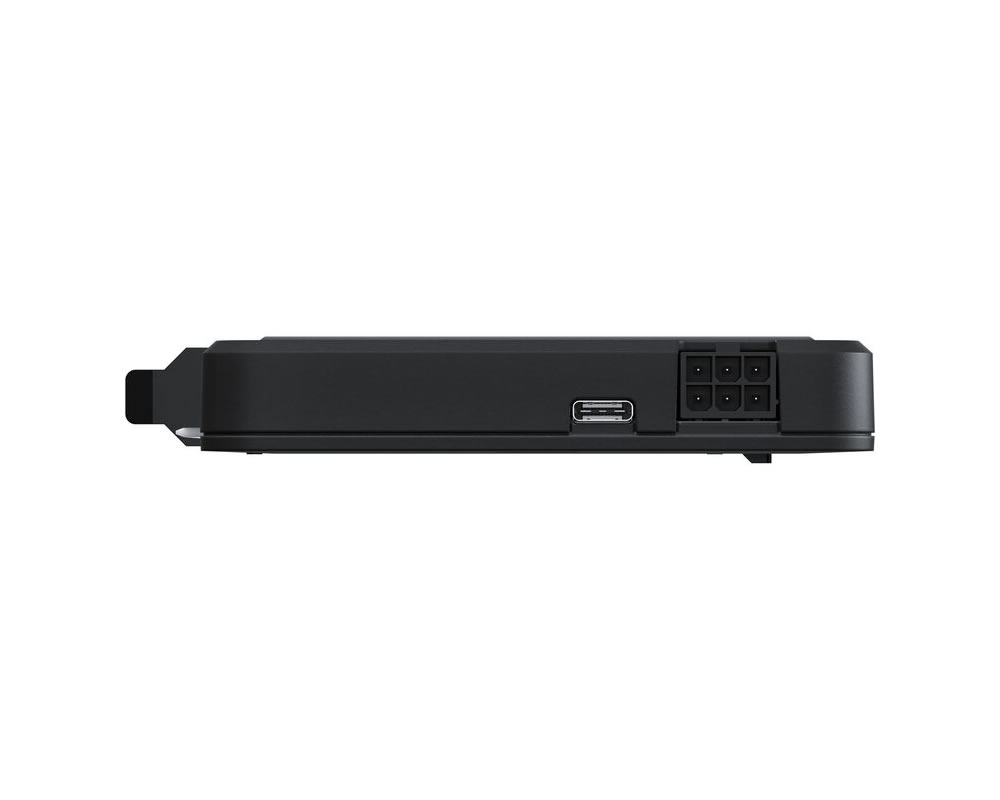

6-pin auxiliary power connector for stable operation
Active cooling for high-performance workloads

Video Standards and Formats

Up to eight simultaneous channels of HD, UHD 4K, and DCI 4K up to 120 fps
Supports SD (PAL/NTSC), 720p, 1080p, DCI 2K, UHD 4K, and DCI 4K
HDR support with HLG and PQ
8/10/12-bit RGB 4:4:4 and 8/10-bit YUV 4:2:2
Rec. 601, Rec. 709, and Rec. 2020 color spaces

Software and OS Compatibility

Works with DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, and more
Compatible with macOS, Windows, and Linux
Includes Media Express, Disk Speed Test, LiveKey, and Blackmagic Desktop Video Utility

Broadcast and Network Protocols

SMPTE 2110-20 (video), 2110-21 (timing), 2110-30 (audio), 2110-40 (ancillary data)
SMPTE 2022-7 stream redundancy
NMOS IS-04 and IS-05 for discovery and connection management
PTP (IEEE 1588-2008) for frame-accurate synchronization

Specifications

Format Support
Video Resolution	Fiber Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 4096 × 2160 up to 120 fps
Audio Format	48 kHz / 24-Bit
Embedded Audio	IP: 2-Channel
Standards
Video Standard Compliance	SMPTE ST 2110-20 / ST 2110-21 / ST-2110
HDCP Support	No
HDR Support	Hybrid Log Gamma
Broadcast Compatibility	NTSC, PAL
Hardware
OS Compatibility	Windows 10–11 macOS 14.0 / 15.0+ Linux
General
Operating Conditions	5 to 50°C (0–90% humidity)
Storage Conditions	-20 to 60°C (0–90% humidity)
Dimensions	10.52" (26.72 cm)
Weight	13.76 oz (390 g)
