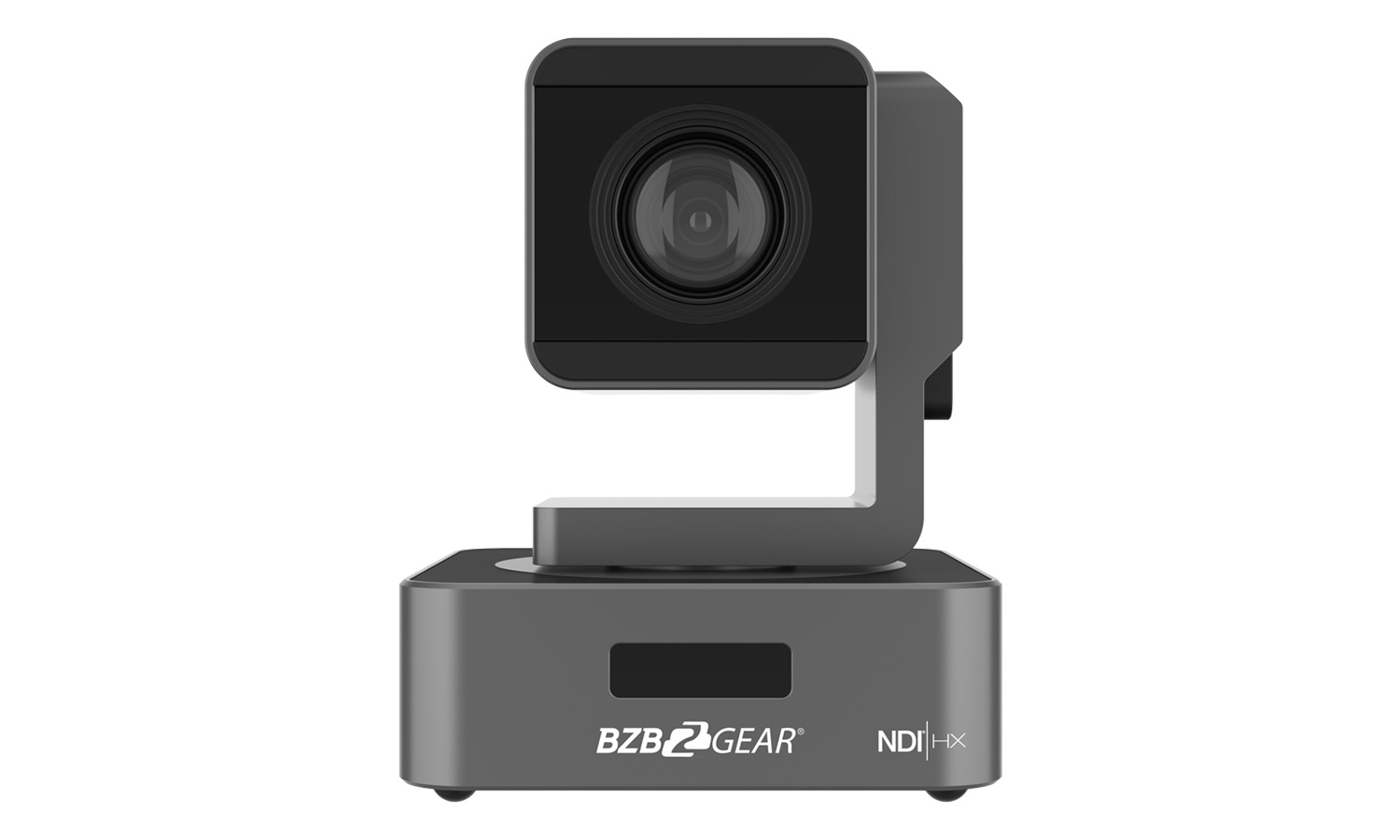

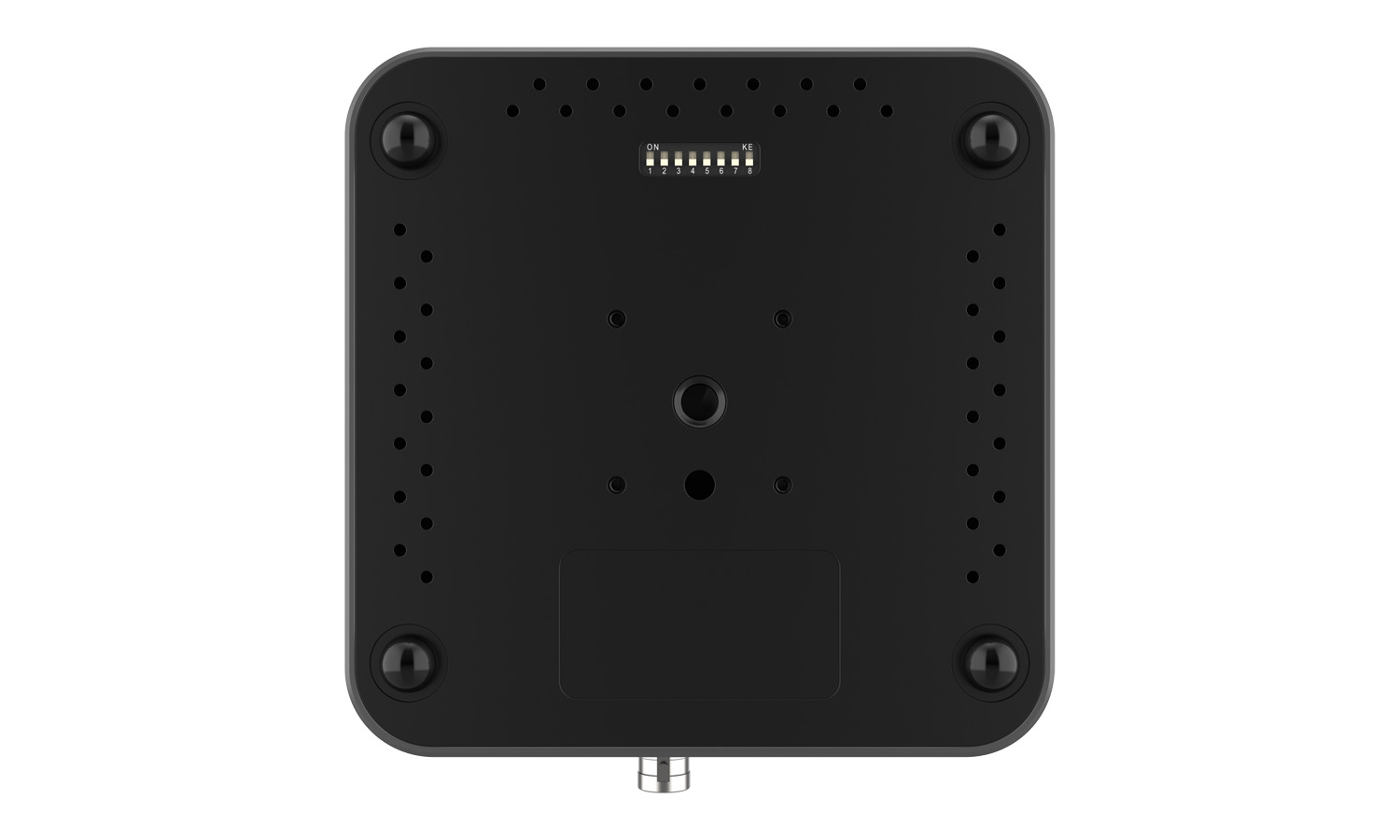

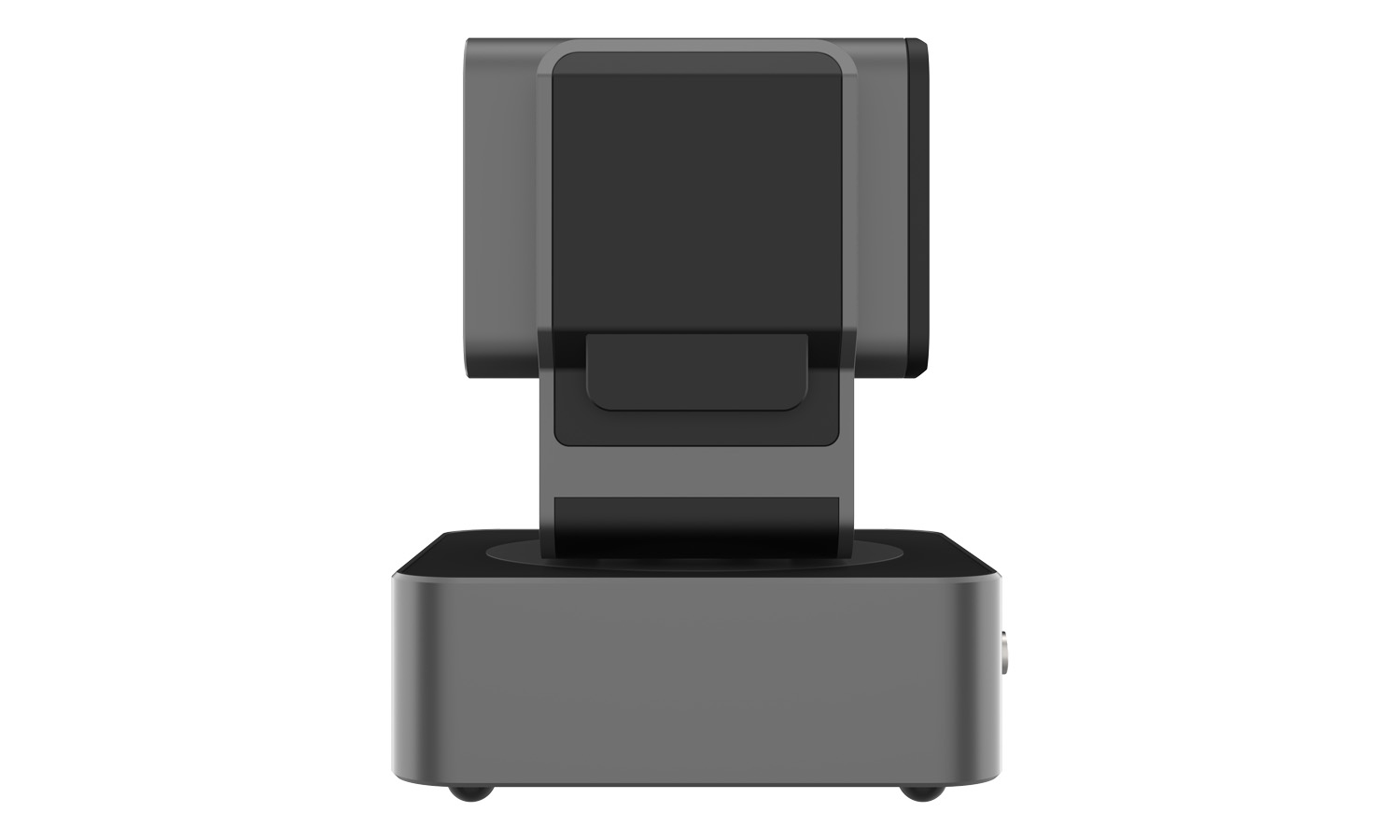

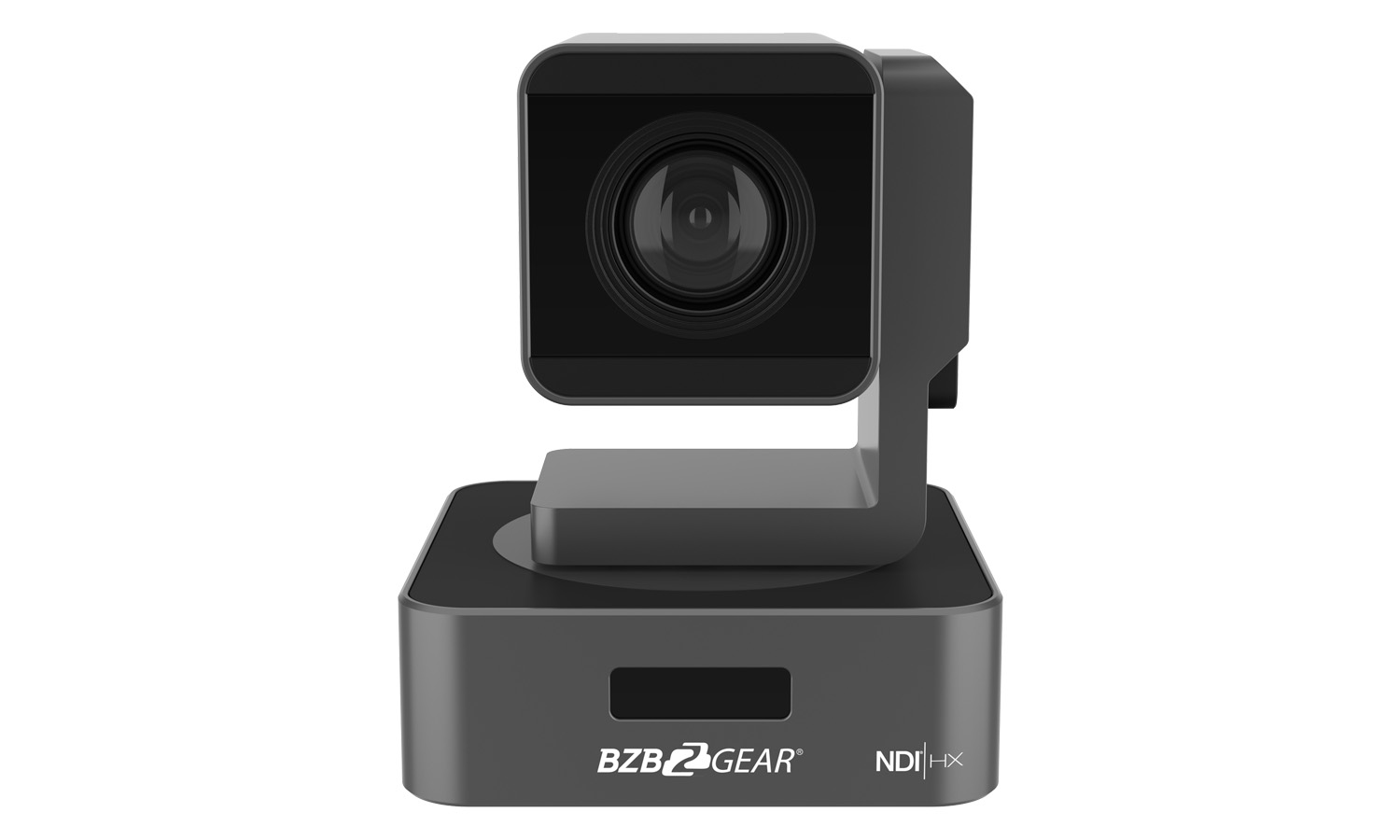

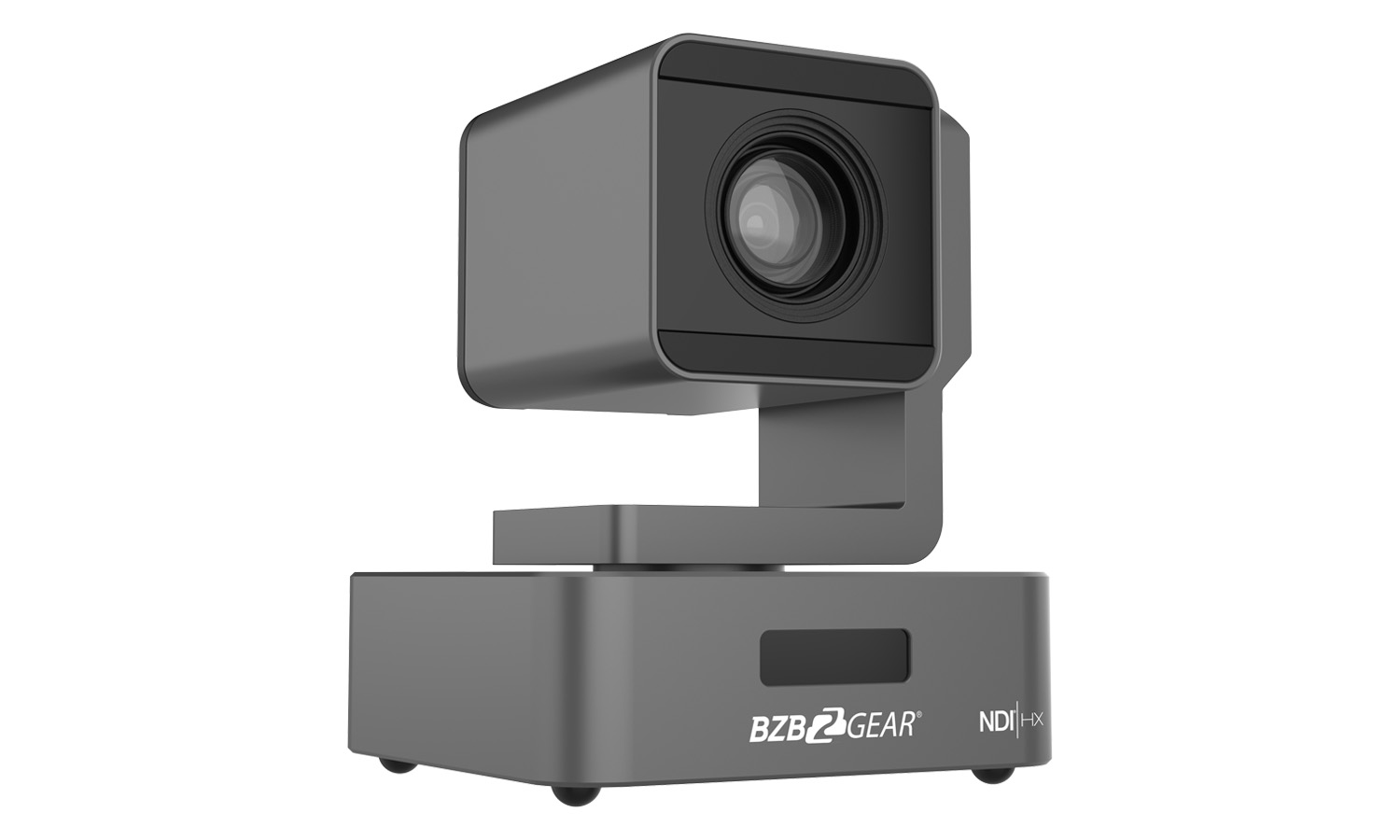

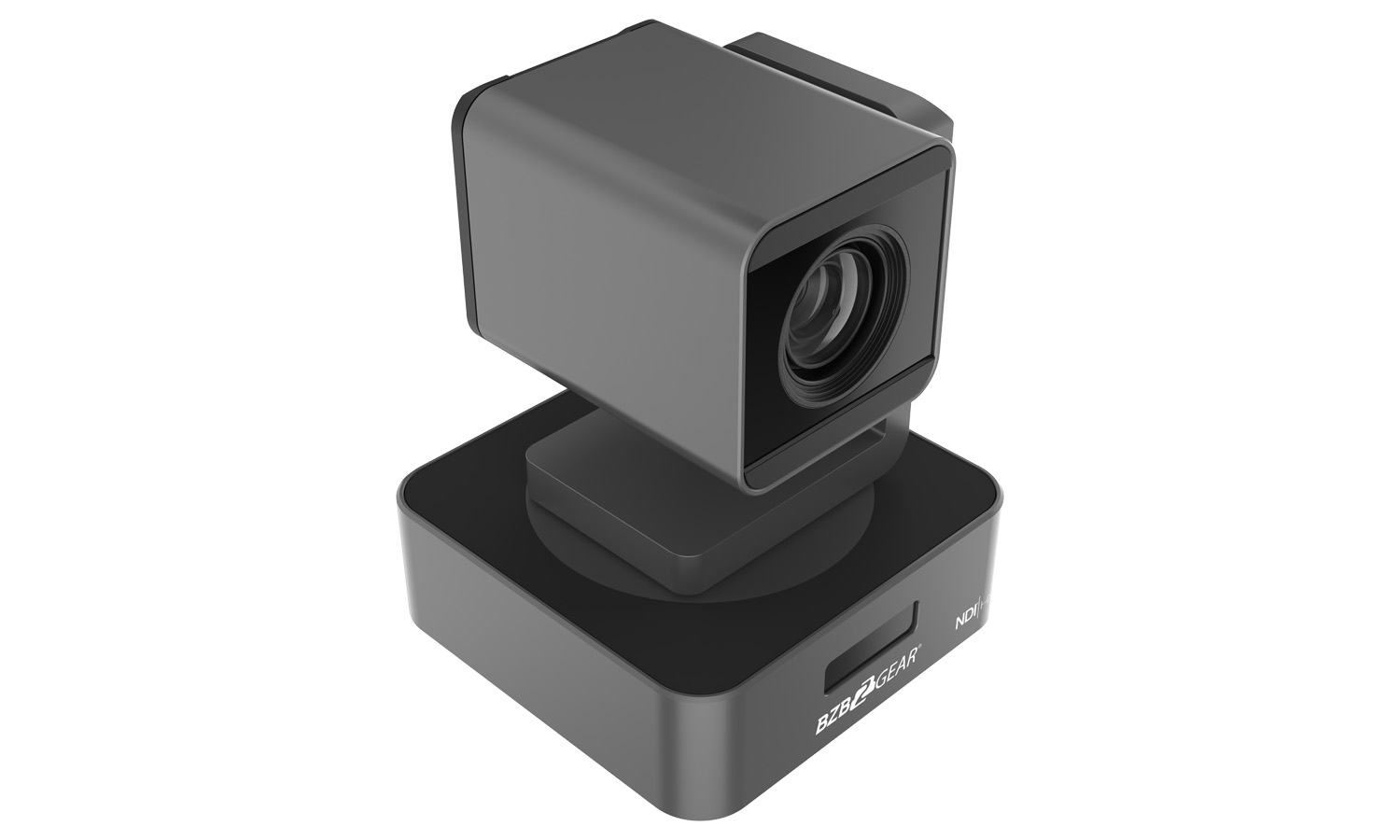

BZBGEAR BG-VPTZN-30HSU3 Compact PTZ 1080P FHD 30X Zoom NDI Camera with HDMI/SDI/USB 3.0/POE

The BG-VPTZN-HSU3 is a compact 1080p HD PTZ camera. Designed with a compact footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs.

The BG-VPTZN-HSU3 camera can capture images at resolutions up to 1080p @ 60Hz. With simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs this camera can integrate seamlessly with nearly any workflow. Available with 20X or 30X optical zoom lenses, the BG-VPTZN-HSU3 produces detailed close-ups in even large venues.

The 3.5mm audio input jack allows the BG-VPTZN-HSU3 to embed audio directly into the video stream. The camera supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols.

The BG-VPTZN-HSU3 is a versatile video solution with applications in broadcasting, education, healthcare, and more. It offers features like multiple zoom options, simultaneous video outputs, and support for various video compression formats. Powered by NDI technology, it delivers low-latency, high-quality video for live broadcasts, remote learning, and medical imaging.

Control:

Multiple Control Options: This camera offers a wide array of control options to suit different setups and preferences. It can be controlled through RS-232, RS-485, LAN, and IR remote control. This means that whether you want to integrate it into an existing control system, operate it remotely over a network, or use a traditional infrared remote, you have the flexibility to do so.

Support for Various Protocols: The camera supports multiple control protocols, including IP VISCA, ONVIF, and PELCO-P/D. This ensures compatibility with a broad range of equipment and systems, making it easier to incorporate into your existing setup or scale it for future needs.

Preset Position Storage: The camera can store up to 255 preset positions internally, and nine of these can be easily accessed using the included IR remote control. This feature is particularly useful for applications that require precise camera positioning, such as live events or surveillance.

Connectivity:

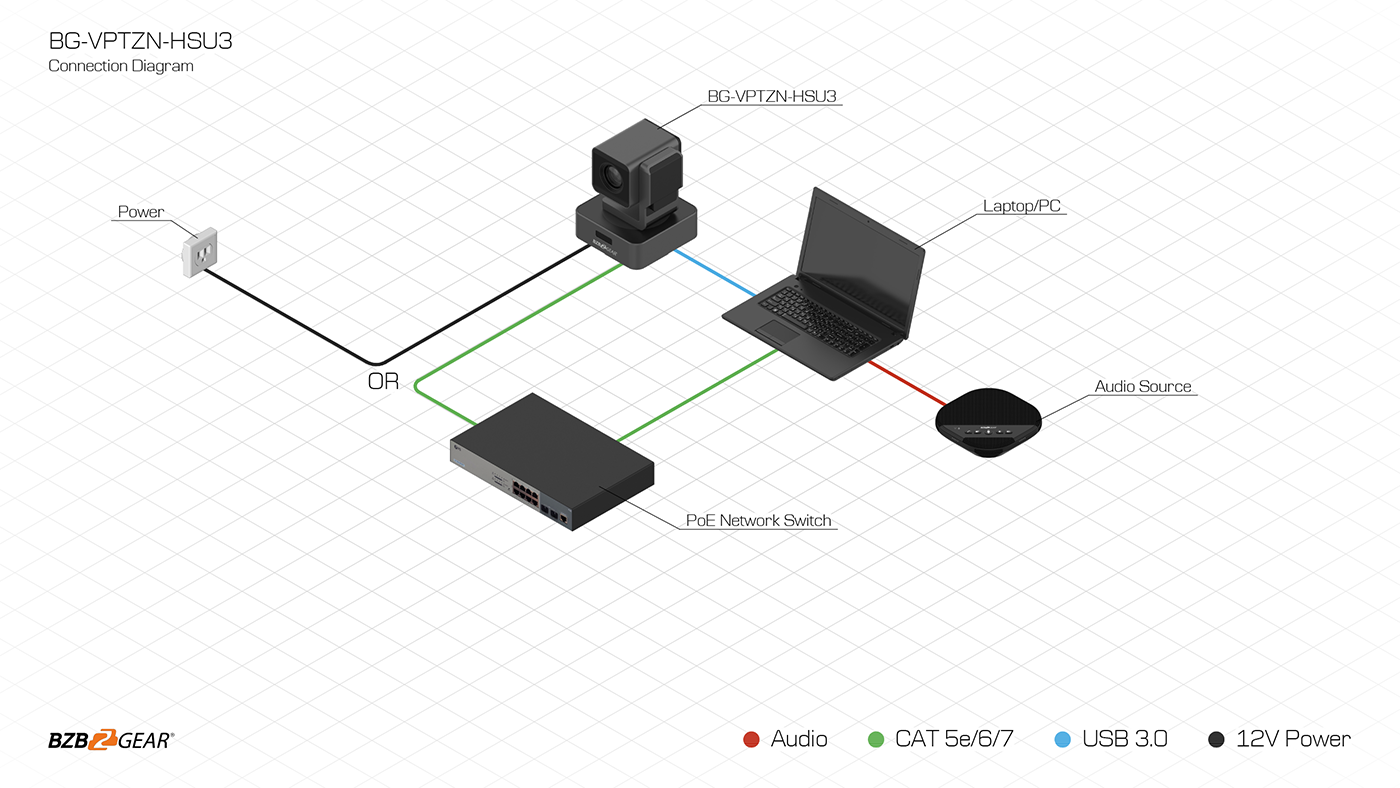

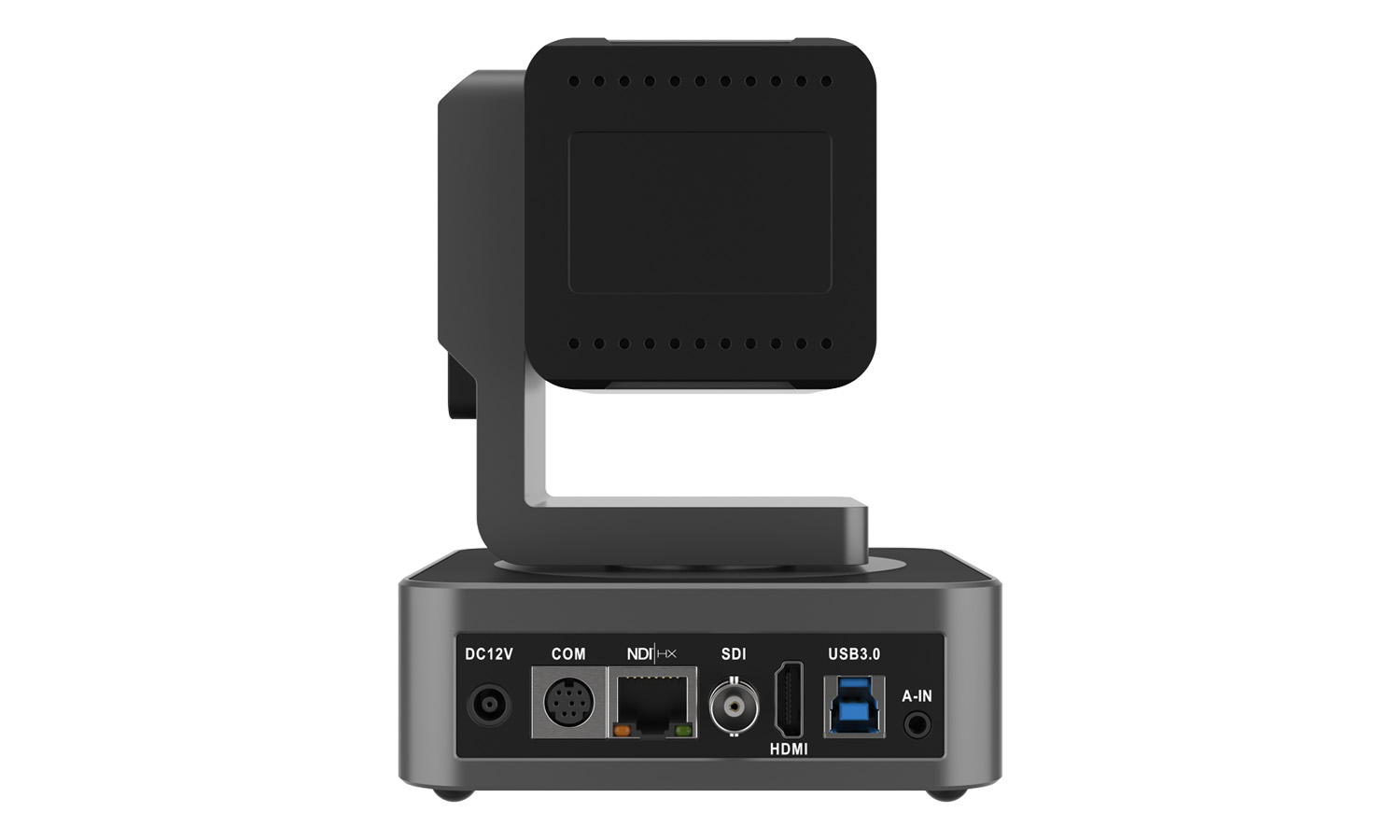

Simultaneous Video Outputs: The BG-VPTZN-HSU3 camera offers a seamless integration experience through its support for multiple video output options. It can simultaneously output video in 3G-SDI, HDMI, USB 3.0, and IP streaming formats. This versatility allows it to fit into a wide range of workflows and production environments, from live broadcasting to video conferencing.

Audio Integration: The camera includes a 3.5mm audio input jack, which enables you to embed audio directly into the video stream. This is particularly valuable for scenarios where synchronized audio and video are critical, such as during presentations or webinars.

Video Compression and Streaming Protocols: The camera supports both H.264 and H.265 video compression formats, ensuring efficient use of bandwidth and storage while maintaining high video quality. It is also compatible with ONVIF, RTSP, and RTMP IP streaming protocols, making it suitable for live streaming, video conferencing, and surveillance applications. This means you can easily connect the camera to various platforms and streaming services.

What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices.

What is NDI|HX2?

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream – all the way from the source device to the destination. This means it is a “cleaner” implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI.

Who Uses NDI Technology

NDI technology finds widespread application across diverse industries, encompassing broadcasting, live events, education, gaming, healthcare, corporate communication, security, entertainment, virtual studios, and government sectors. This versatile technology excels in delivering flawless audio and video transmissions over IP networks, making it indispensable for tasks like live broadcasts, remote learning, esports streaming, medical imaging, and more.

NDI stands as an adaptable platform, boasting easy setup, minimal latency, and top-tier video connectivity, catering to a broad spectrum of use cases. From professional broadcast studios to consumer-grade setups, NDI seamlessly integrates into various devices and workflows. This adaptability makes it an ideal choice for businesses operating in various sectors, including broadcast and professional audiovisual, cloud video management, conferences, education, gaming, and security.
