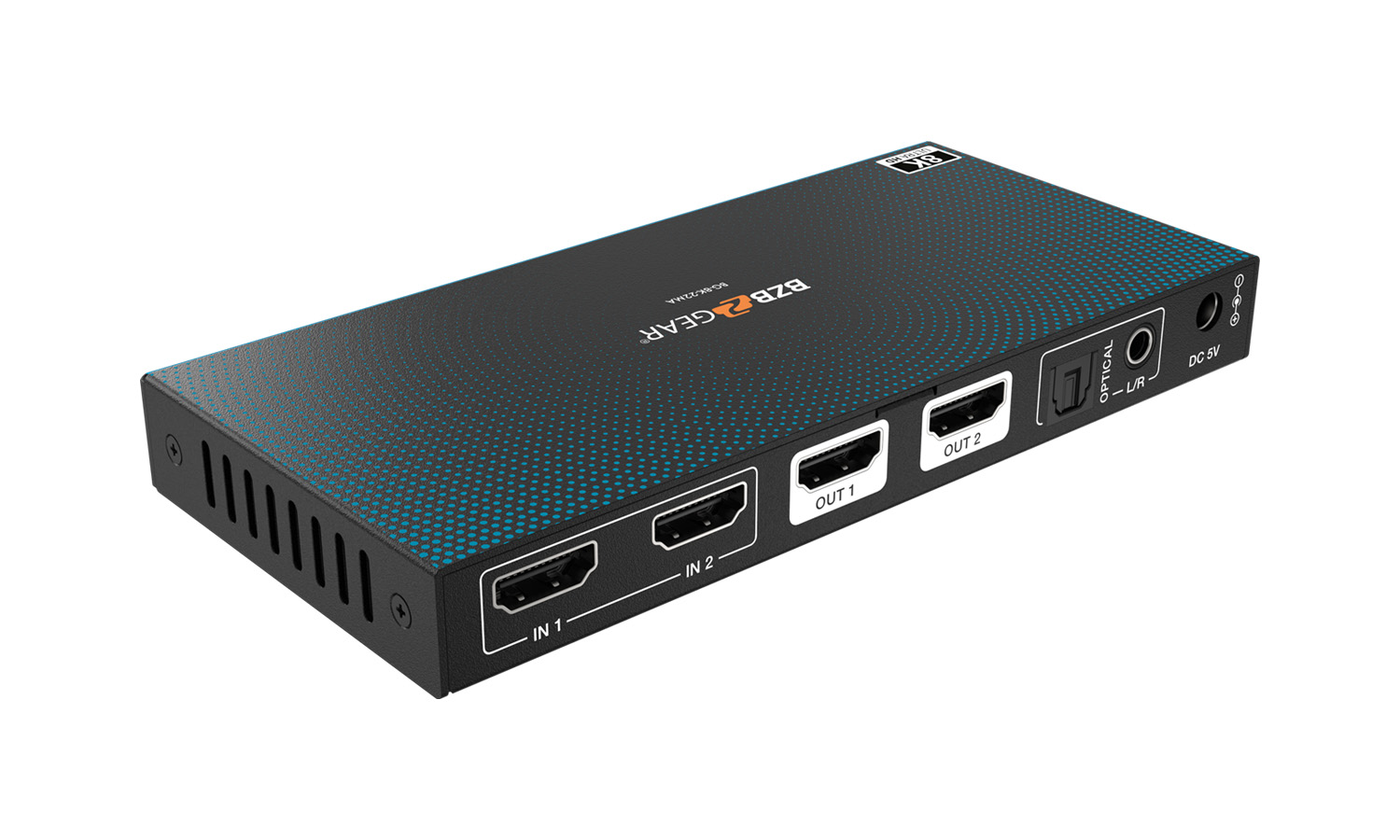

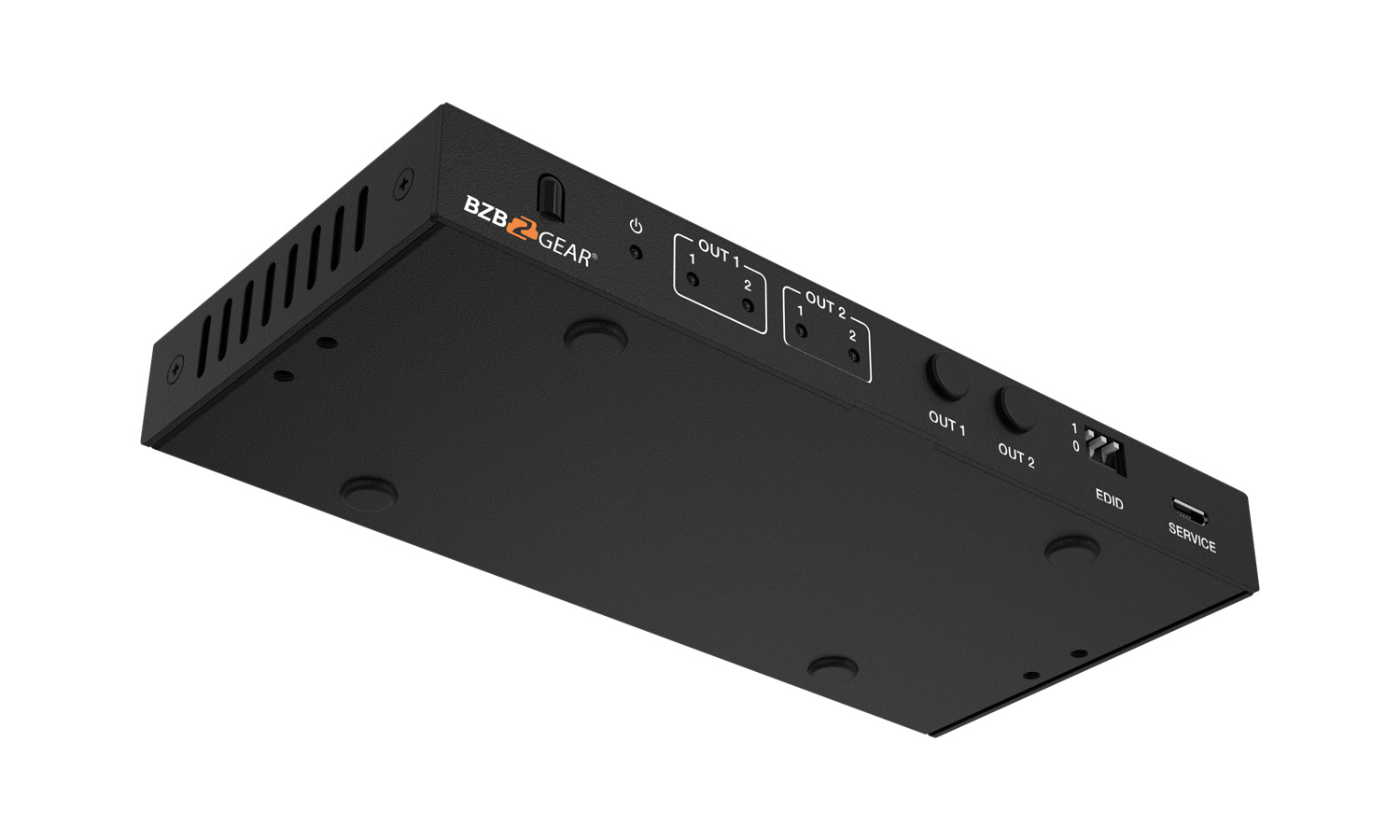

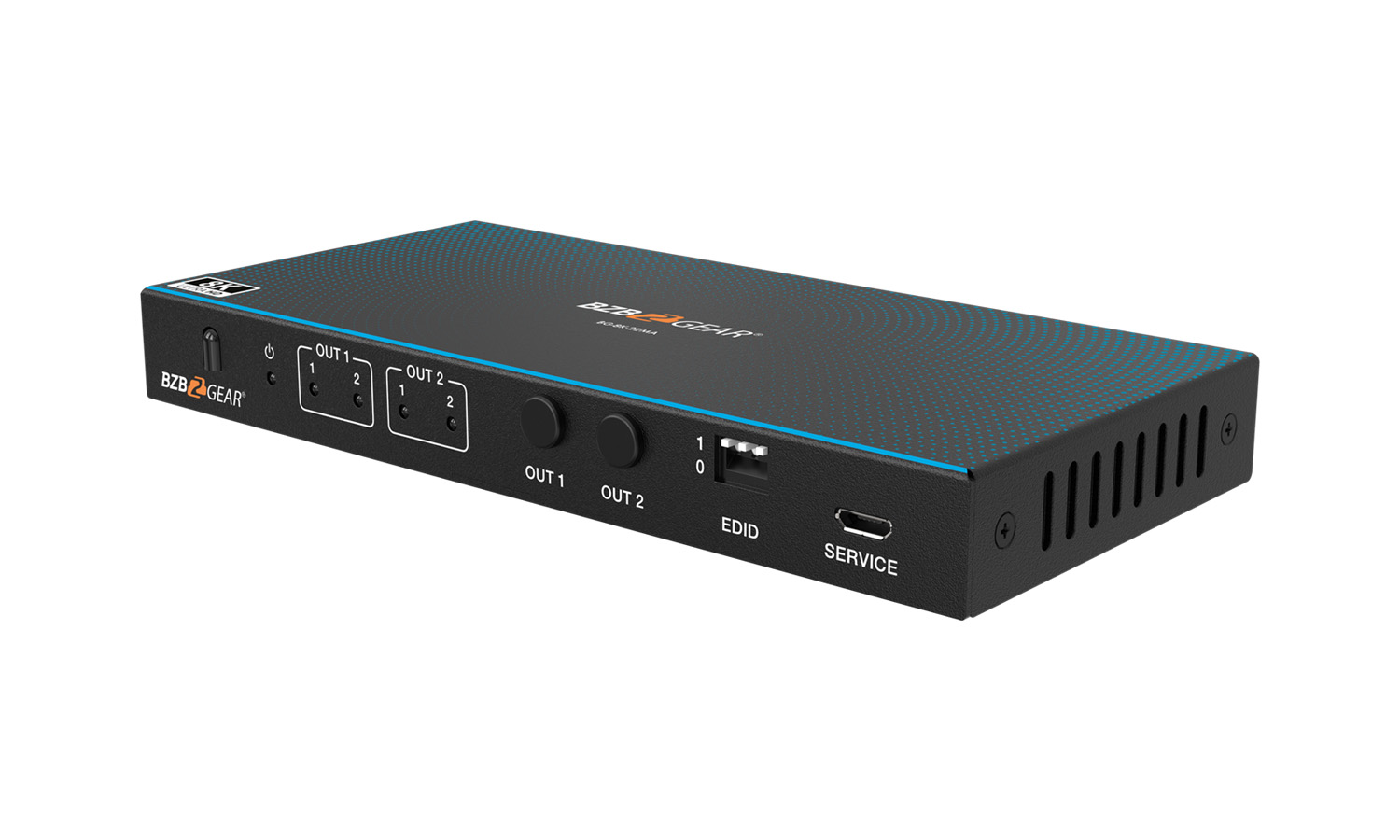

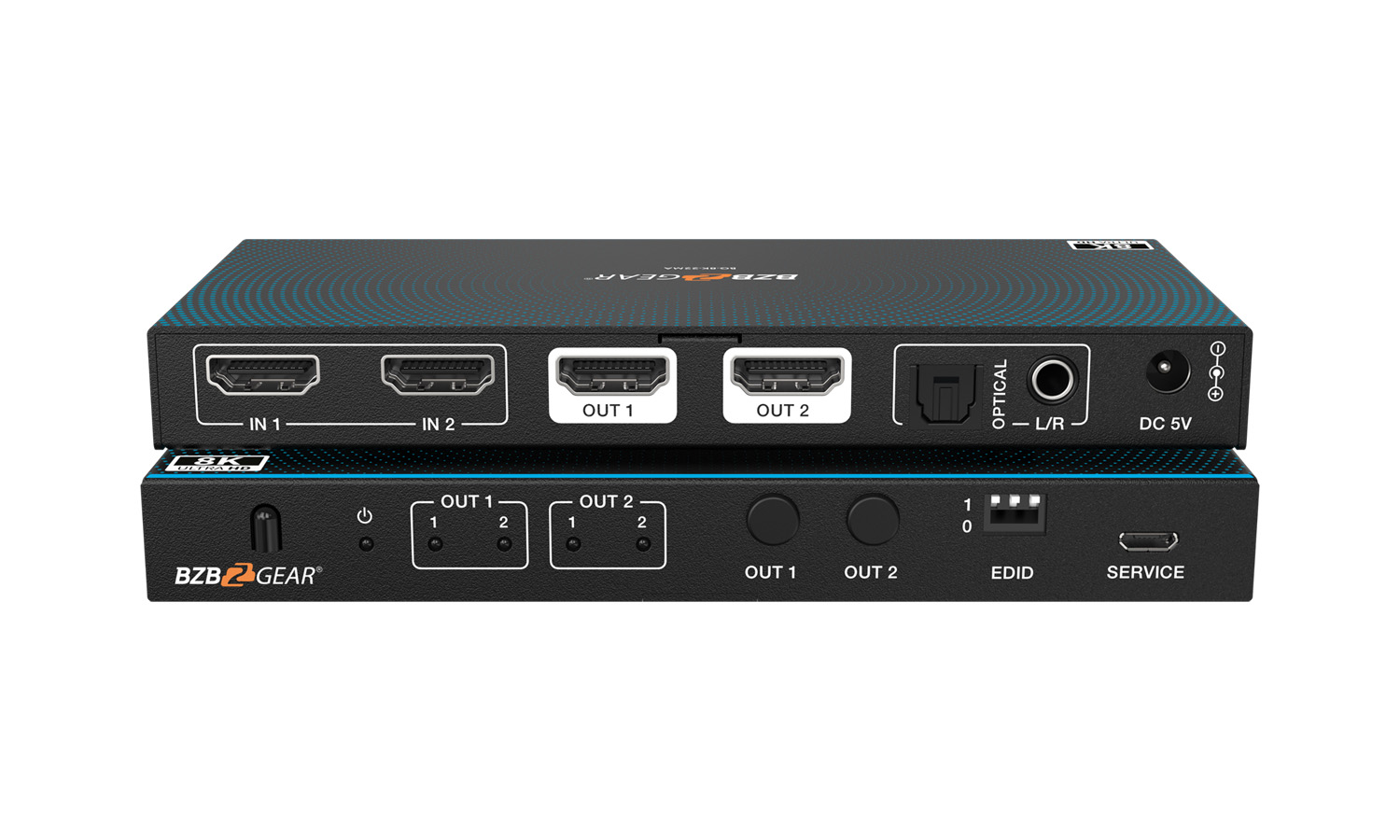

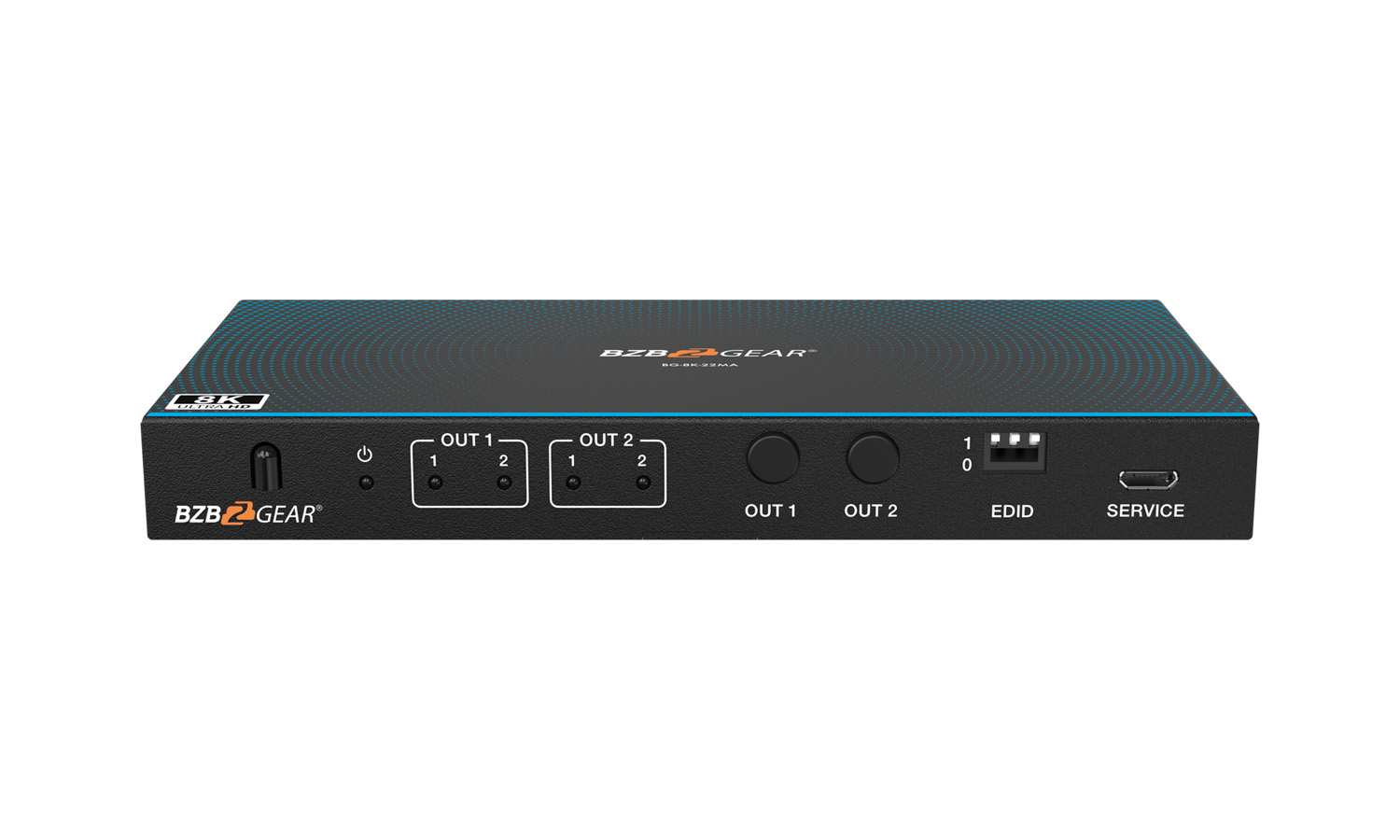

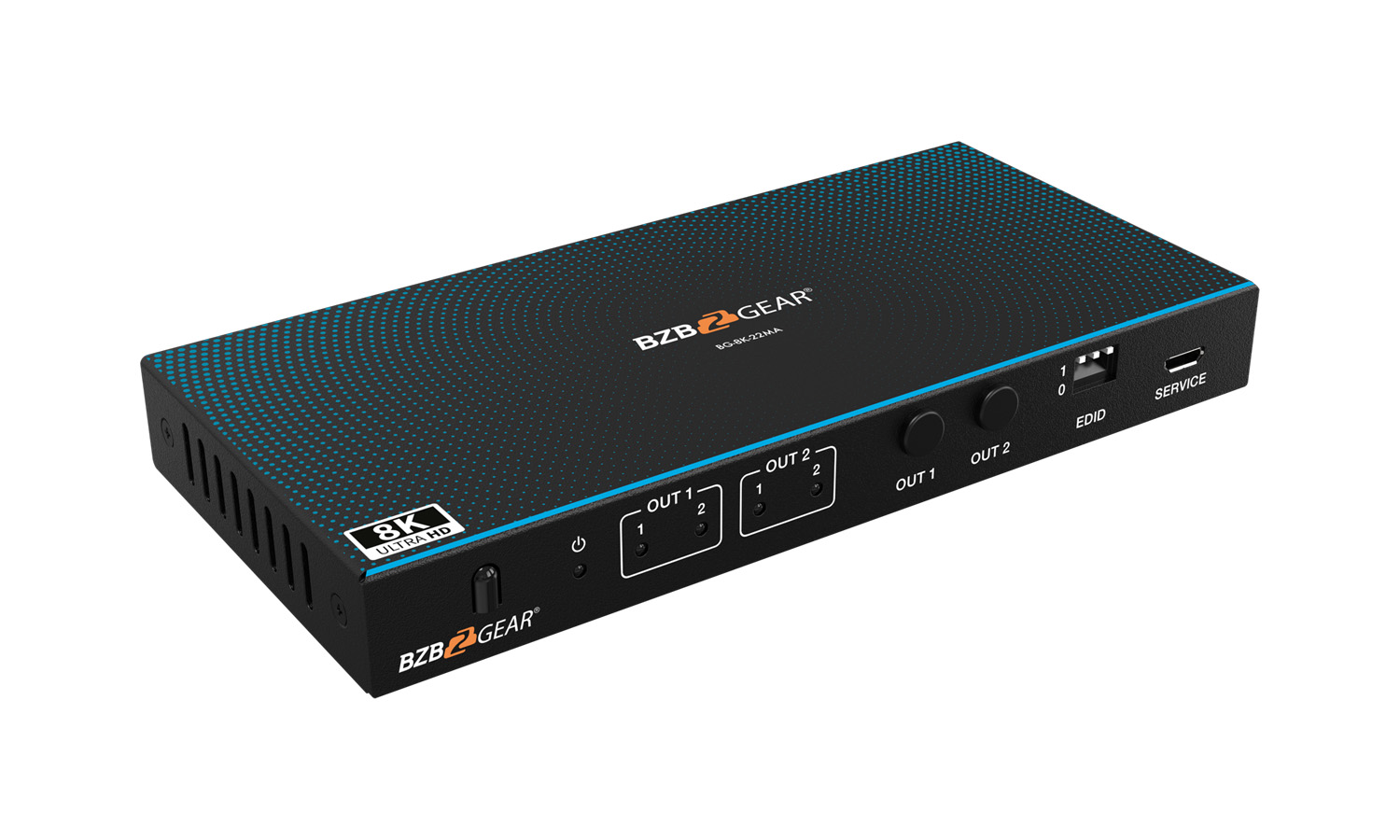

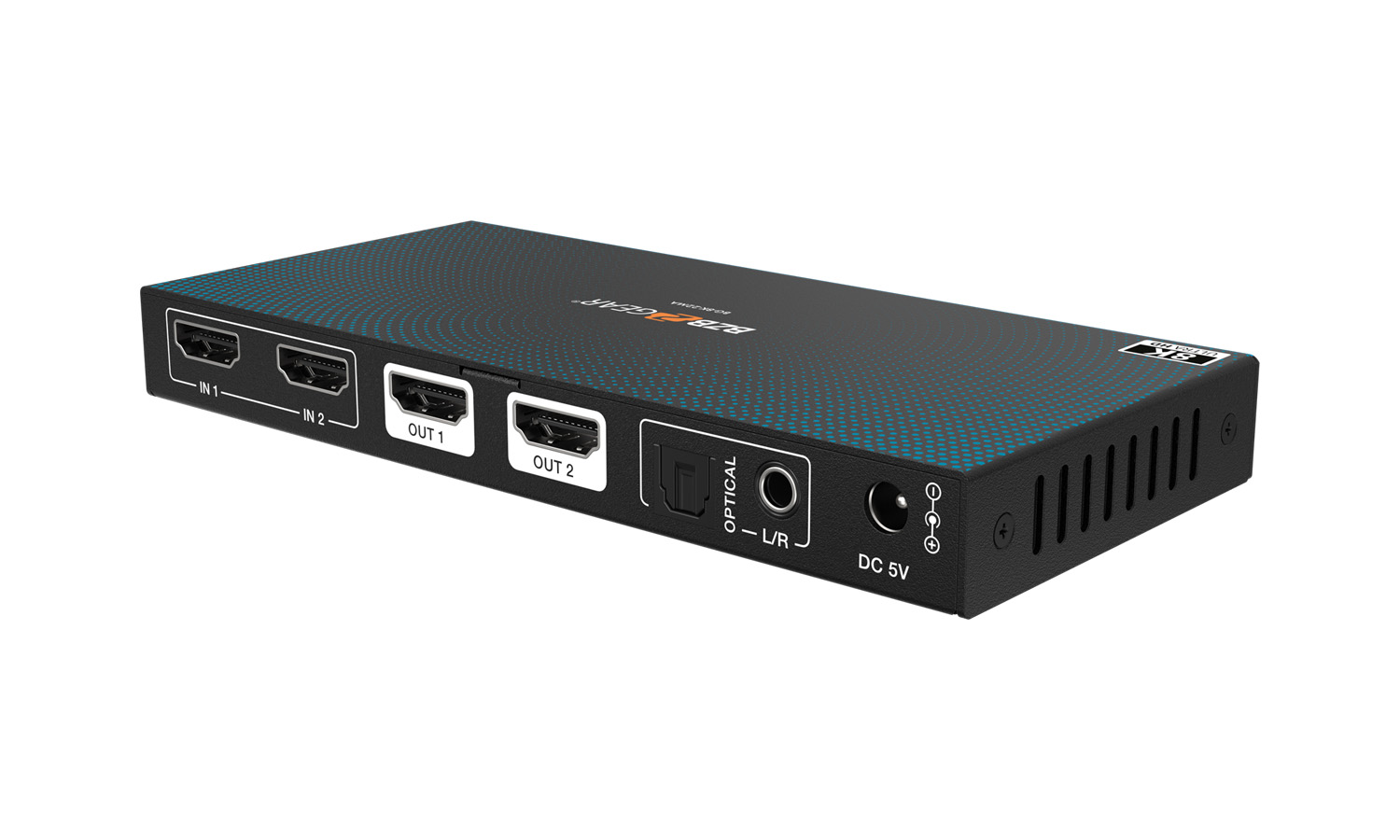

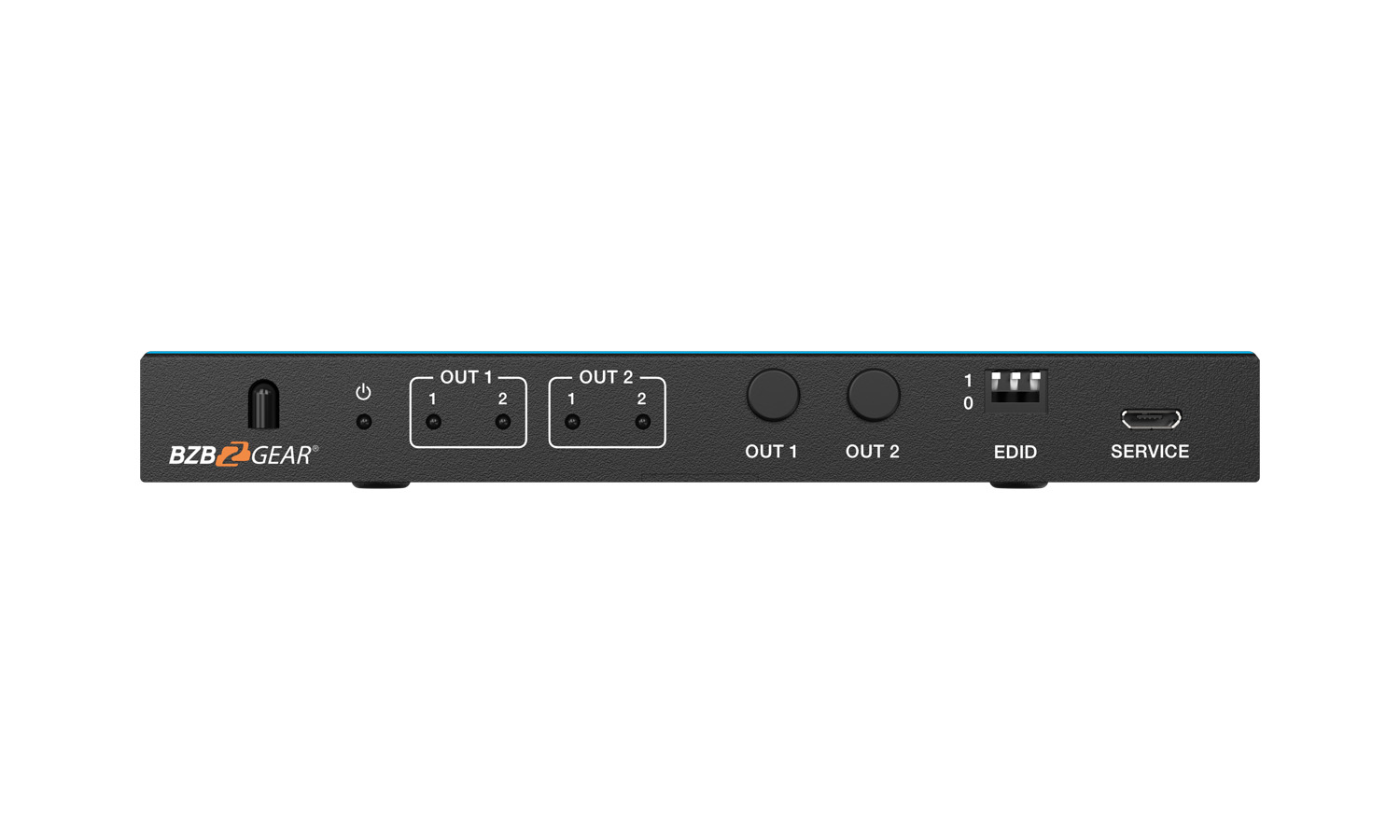

BZBGEAR BG-8K-22MA 2x2 8K UHD HDMI 2.1 Matrix Switcher with Auto Downscaling/Audio De-Embedding (8K60/4K120 and VRR/FVA/ALLM Support)

Description

The 2×2 8K 60Hz HDMI matrix switcher is a high-performance device that allows you to switch between two HDMI input sources and send the output to two separate displays. It supports 8K resolution at 60Hz refresh rate for crystal clear picture quality. Additionally, it features audio de-embedding, allowing you to extract the audio from the HDMI signal and route it to an external audio system. The EDID management function ensures compatibility between the source and display devices by mimicking the EDID of the connected displays. This ensures optimal video and audio performance. This matrix switcher is a ideal for any professional A/V setup, home theater, and conference room.

In addition to 8K resolution at 60Hz, this 2×2 HDMI matrix switcher also supports 4K resolution at 120Hz, making it ideal for the gaming community who require the highest quality video and smooth frame rates for an immersive gaming experience. High refresh rates, such as 120Hz, can make a big difference for fast-paced games, making the image look smoother, and reducing motion blur. This feature makes this matrix switcher a great solution for gaming enthusiasts, who require the best quality picture and a seamless visual experience.

Furthermore, this matrix switcher is also compatible with 4:4:4 chroma subsampling and HDR, which means it can deliver more accurate color representation and better contrast, making it ideal for both gaming and professional video applications.

Recommended HDMI Cable

Video Resolution	8K	4K60	4K24	1080P
HDMI Cable Type	Ultra HDMI 2.1	HDMI 2.0	HDMI 1.4	HDMI 1.4
HDMI Cable Length (HDMI IN / OUT)	3m/10ft	8m/26ft	12m/39ft	15m/49ft

The use of a “Premium High-Speed HDMI” cable is highly recommended.

Features:

Secure content – HDMI 2.1 and HDCP 2.3 compliant
8K and 4K@120Hz – Video resolutions up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
Audio formats – LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
EDID management – Seamless scaling for the best results
Control options – IR remote control and front panel button switching
Compact design – For easy and flexible installation
40Gbps video bandwidth
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
VRR, FVA, ALLM
Audio de-embedding functionality (output through the optical and analog ports)
Built-in Equalizer, Retiming, and Driver

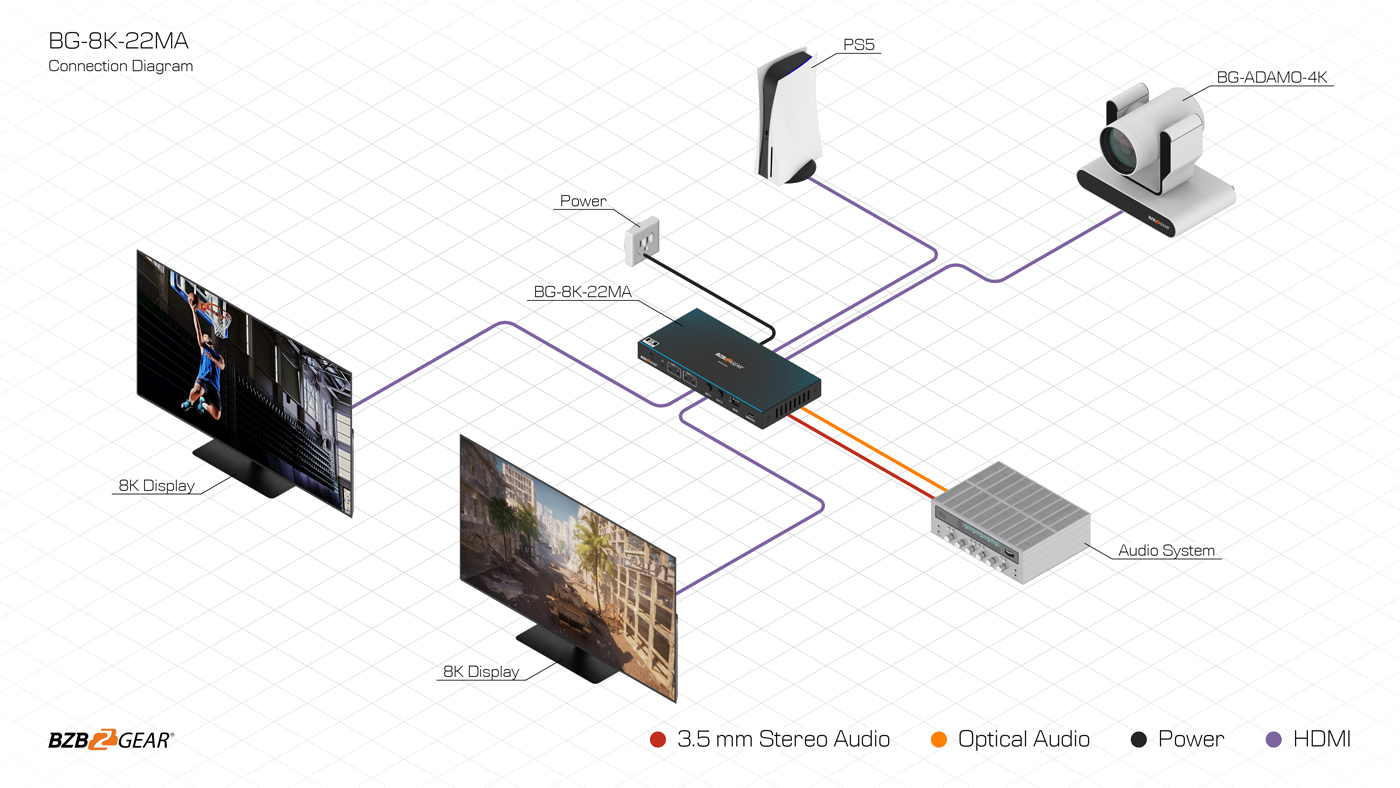

Product Diagrams

View Diagrams

Product Video

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	40Gbps
Video Resolutions	Up to 8K @ 60Hz 4:2:0 10bit, 8K @ 30Hz 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Auido de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH Analog: PCM 2.0
ESD Protection	Human-body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

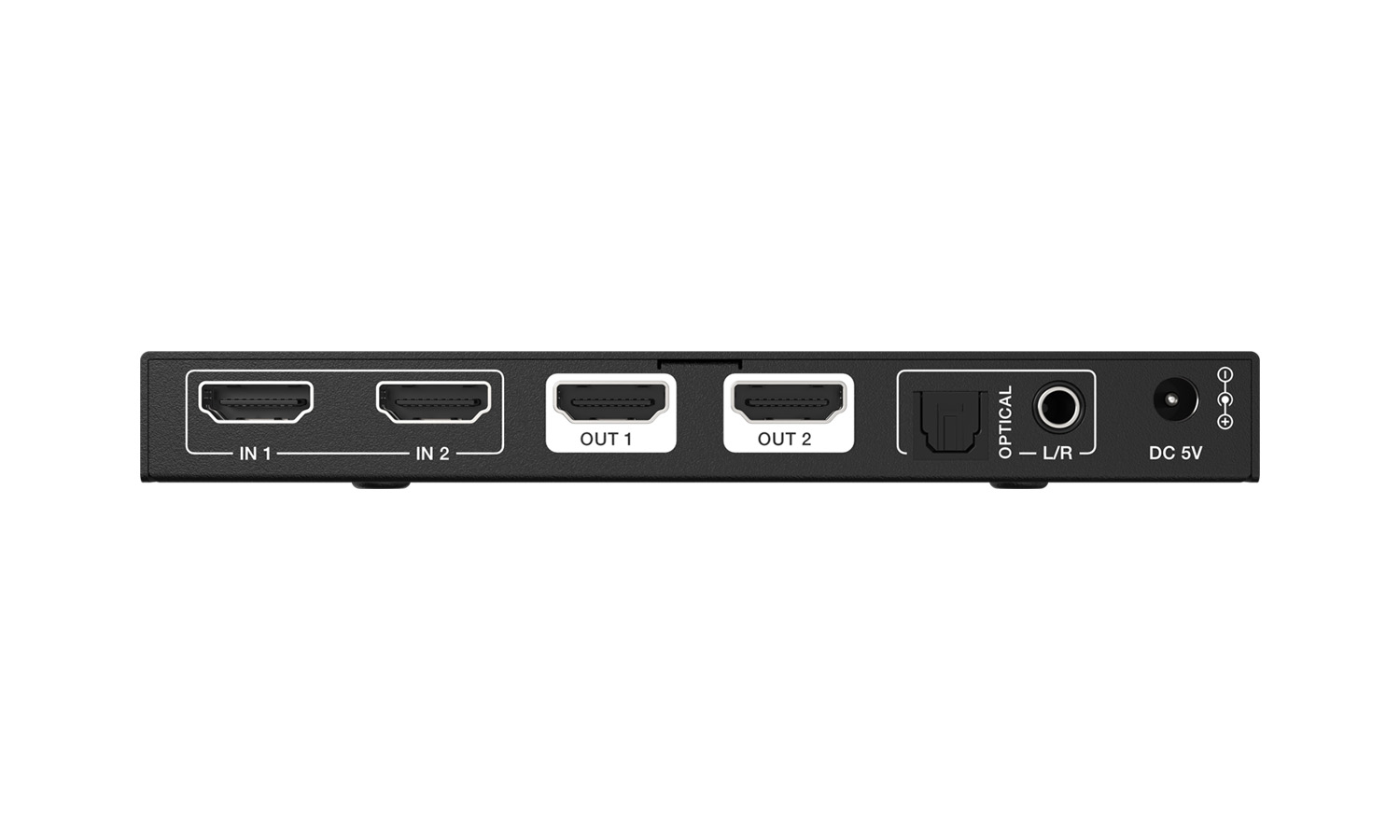

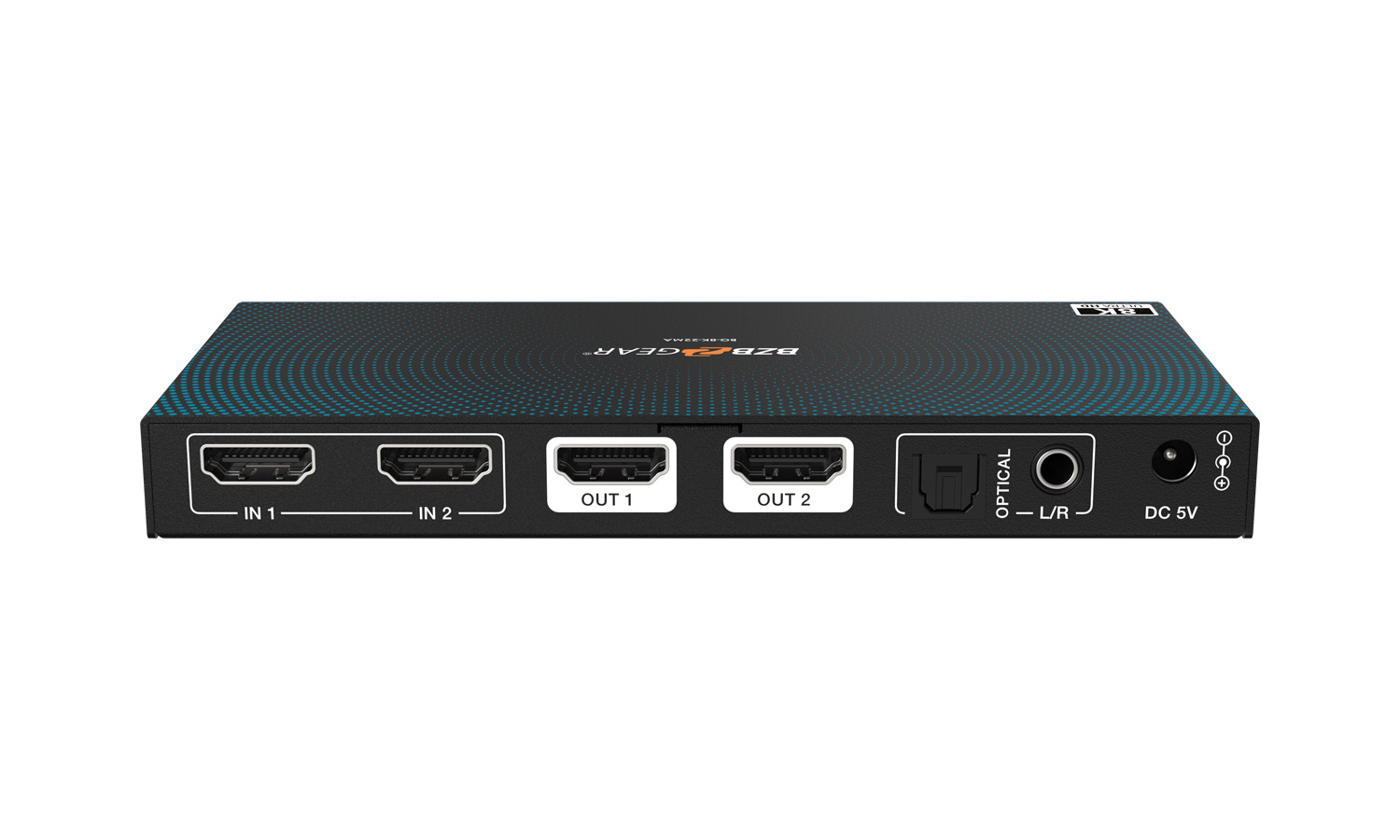

Connection
Input	2x HDMI IN [Type A, 19-pin female]
Output	2x HDMI OUT [Type A, 19-pin female] 1x OPTICAL [S/PDIF] 1x L/R [3.5mm Stereo Mini-jack]
Control	1x SERVICE [Micro USB, Update port]
Mechanical
Housing	Metal Enclosure
Silkscreen Color	Black
Dimensions	5.7”(W) x 2.7"(D) x 0.67”(H) [145mm(W) x 68mm(D) x 17mm(H)]
Weight	0.59lbs [268g]
Power Supply	Input: AC 100~240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
Power Consumption	6.2W (Max)
Operation Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (no-condensing)
Recommended HDMI Cable
Video Resolution	8K	4K60	4K24	1080P
HDMI Cable Type	Ultra HDMI 2.1	HDMI 2.0	HDMI 1.4	HDMI 1.4
HDMI Cable Length (HDMI IN / OUT)	3m/10ft	8m/26ft	12m/39ft	15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.
