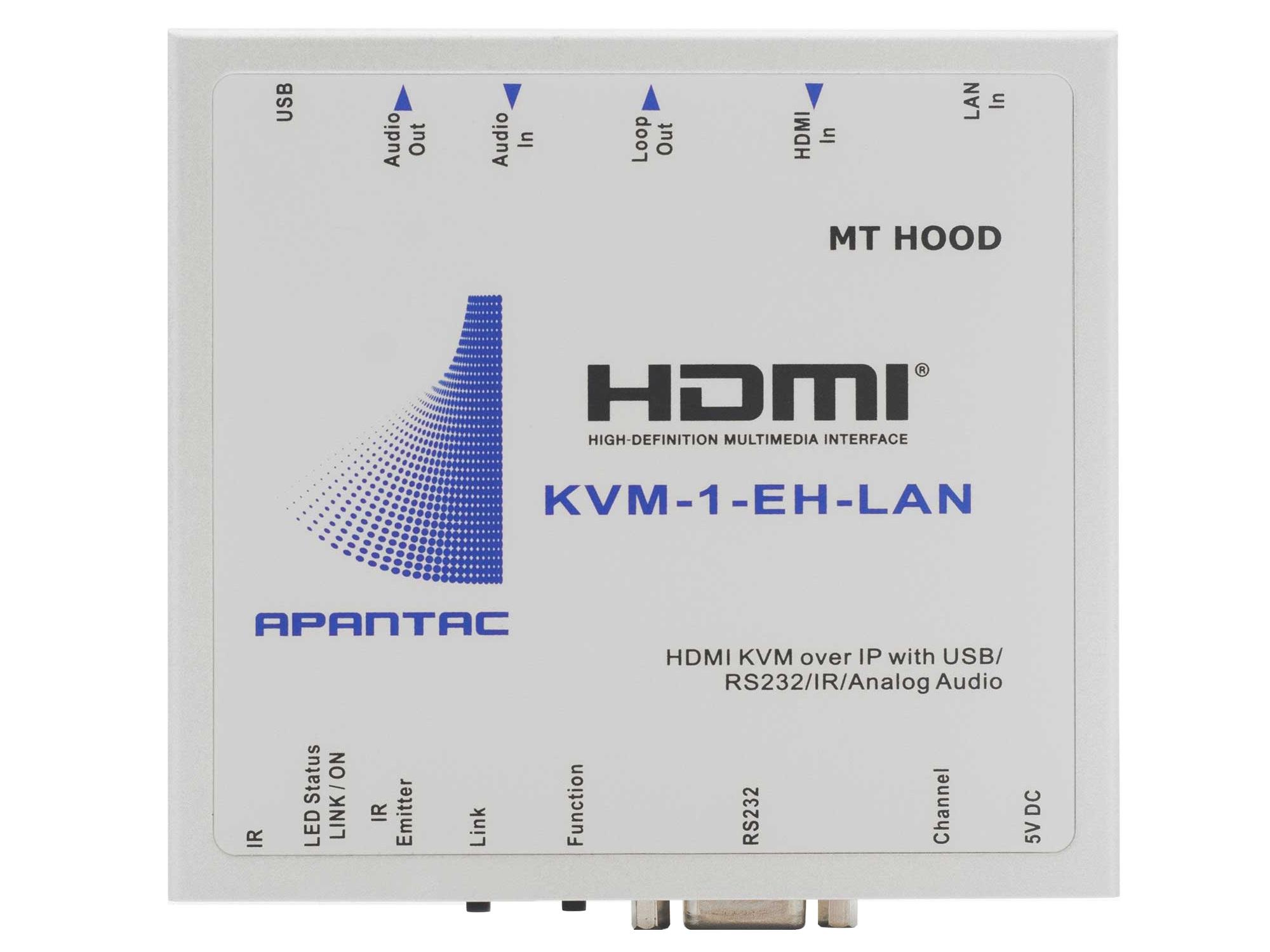

HDMI/USB over Gigabit Ethernet LAN/IP KVM Extender (Transmitter)

SKU: KVM-1-EH-LAN
HDMI/USB over Gigabit Ethernet LAN/IP KVM Extender (Transmitter)

HDMI/USB over Gigabit Ethernet LAN/IP KVM Extender (Transmitter)

  • $500.00
Qty:
Make an Offer
  • Brand
    Apantac
  • SKU
    KVM-1-EH-LAN
  • Weight
    2.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    Available
ASK AN EXPERT
Product Questions? Ask Our Experts!
888.660.2962 Chat sales@avprosupply.com
In stock (50 items available)
KVM Extender (Tx) - (HDMI/(DVI-D with optional cable), USB Mouse & USB Keyboard) over Gigabit Ethernet LAN, up to 330 feet (100 meters) at 1920x1080P
  • Brand
    Apantac
  • SKU
    KVM-1-EH-LAN
  • Weight
    2.00 lbs
  • Warranty
    3 Years
  • Condition
    New
  • Status
    Available
Product availability status
Questions? Ask our experts!

GET A QUOTE
  • $500.00
Make an Offer


Manual Datasheet

KVM Transmitter (HDMI/(DVI-D with optional cable), USB Mouse & USB Keyboard) over Gigabit Ethernet LAN, up to 330 feet (100 meters) at 1920x1080P

Features

  • KVM Extender over Gigabit Ethernet network
  • Extend HDMI, USB 2.0/1.1, RS-232, bidirectional audio, bi-directional IR over a single cable
  • Built-in HDMI loop-out to eliminate the need for a splitter
  • Supports bi-directional RS-232 comments at 115,200 baud rate, full duplex
  • Receiver unit has 4 USB ports to easily extend peripherals such as flash drives, keyboard and mouse
  • Supports HDMI resolutions up to 1920x1200/1080P
  • Compatible with HDCP 2.0
  • Up to 16 transmitters and 200 receivers on the same network
  • Up to 150 meters on CAT5E cables and 180 meters on CAT6
  • Requires IGMP and Jumbo frame packets Gigabit switch/hub

MODEL

KVM-1-EH-LAN

DESCRIPTION

Transmitter

INPUT

HDMI (Female)

OUTPUT

HDMI (Female)

USB

Type B (Female)

RS232

DB-9 Female

IR

1x 3.5 mini Jack

AUDIO (INPUT/OUTPUT)

2x 3.5 mini Jack

VIDEO SELECTION

Rotary dial x 1

FUNCTION SELECT BUTTON

Tact switch x 2

ETHERNET CONNECTIONS (I/O)

1x RJ45

MAXIMUM DISTANCE

Within a LAN: 100 meters. Point to point: 150 meter with CAT5E, 180 meters with CAT6

MAXIMUM RESOLUTION

1080P/1920 x 1200

DIMENSIONS

62 mm W x 113 mm D x 29 mm H

POWER

DC 5V 2000 mA
