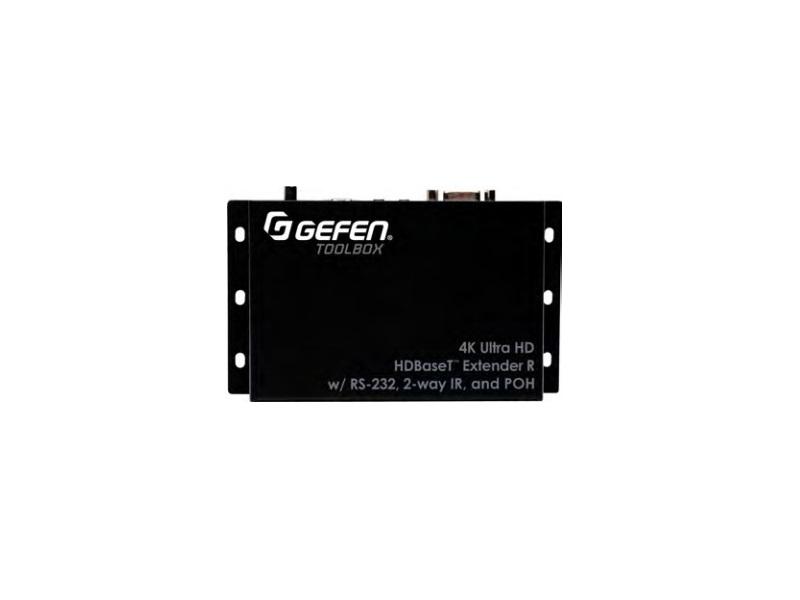

GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen

SKU: GTB-UHD-HBT2
  • GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen
  • GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen
  • GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen
  • GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen
  • GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen
  • GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen
GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen

GTB-UHD-HBT2 4K Ultra HD HDBaseT 2.0 Extender with RS-232/IR/POH by Gefen

  • $519.20
Market price: $649.00, you save $129.80
  • 20% less
OUT OF STOCK
Make an Offer
  • Brand
    Gefen
  • SKU
    GTB-UHD-HBT2
  • Weight
    4.00 lbs
  • Warranty
    2 Years
  • Condition
    New
  • Status
    Discontinued
ASK AN EXPERT
Product Questions? Ask Our Experts!
888.660.2962 Chat sales@avprosupply.com
Out of stock
The GTB-UHD-HBT2 uses Gefen’s implementation of the latest HDBaseT™ 2.0 technology to extend HDMI up to 330 feet (100m) at 4K, using one CAT-5e cable. 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495 feet (150 meters).
  • Brand
    Gefen
  • SKU
    GTB-UHD-HBT2
  • Weight
    4.00 lbs
  • Warranty
    2 Years
  • Condition
    New
  • Status
    Discontinued
Product availability status
Questions? Ask our experts!

GET A QUOTE
  • $519.20
Market price: $649.00, you save $129.80
  • 20% less
Make an Offer


Manual

The GTB-UHD-HBT2 uses Gefen’s implementation of the latest HDBaseT™ 2.0 technology to extend HDMI up to 330 feet (100m) at 4K, using one CAT-5e cable. 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495 feet (150 meters). The new HDBaseT™ 2.0 Colligo™ platform ensures an even more robust and resilient connection than the industry standard HDBaseT™. Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) are supported. 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through. RS-232 and 2-way IR are transferred between the Sender and the Receiver to control the A/V source and the display. POH (Power Over HDBaseT™) technology provides power to the Receiver unit, using the same CAT-5 cable that extends the HDMI and control signals. Only the Sender needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices. The Gefen Syner-G™ software with its powerful EDID Management capabilities speeds up configuration, performs real-time performance audits via Link Monitoring, and simplifies in-field firmware updates. Low profile, surface-mountable Sender and Receiver units fit in tight places and accommodate Gefen locking HDMI cables for secure connections.

Features:

  • Extends HDMI, RS-232, and 2-way IR over a single CAT-5e
    • 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
    • 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
    • 4K DCI-Cinema (4096 x 2160 @ 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495 feet/150 meters
  • HDMI Features Supported:
    • HDMI 2.0 up to 4K 60Hz, 4:2:0, 8-bit color
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • IR extension from Sender to Receiver and from Receiver to Sender
  • POH (Power Over HDBaseT™) feature provides power to the Receiver unit over the link cable - only the Sender unit needs external power
  • Advanced EDID Management via Gefen Syner-G™ software
  • Link Quality Monitoring via Gefen Syner-G™ software
  • In-field firmware update via USB, using Gefen Syner-G™ software
  • Locking power connector
  • Low profile, surface-mountable enclosures
  • Maximum Pixel Clock: 300 MHz

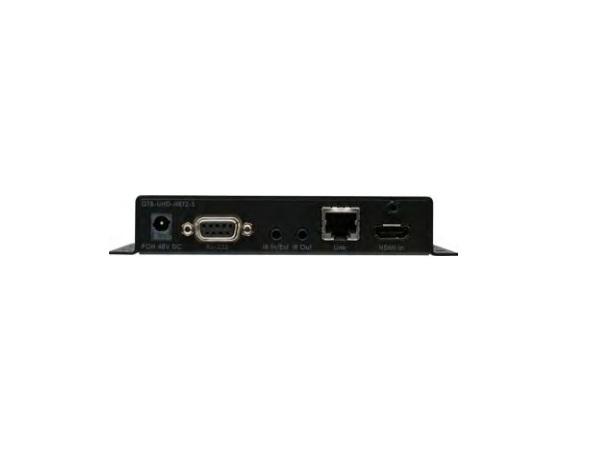

  • Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

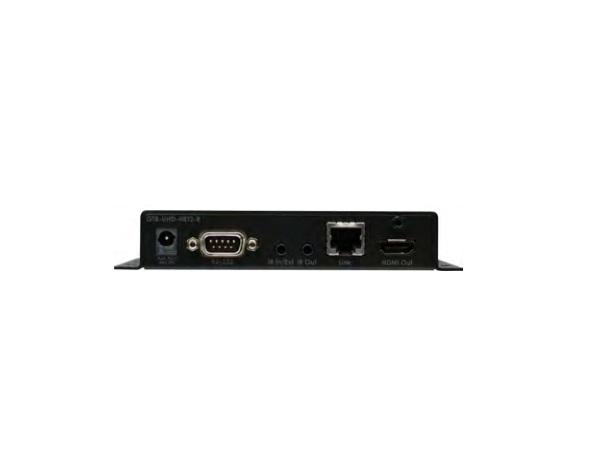

  • Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking
  • Link connector (Sender/Receiver): (1) RJ-45, shielded, female
  • RS-232 port (Sender): (1) DB-9, female
  • RS-232 port (Receiver): (1) DB-9, male
  • IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack
  • IR Extender type: EXT-RMT-EXTIRN
  • IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack

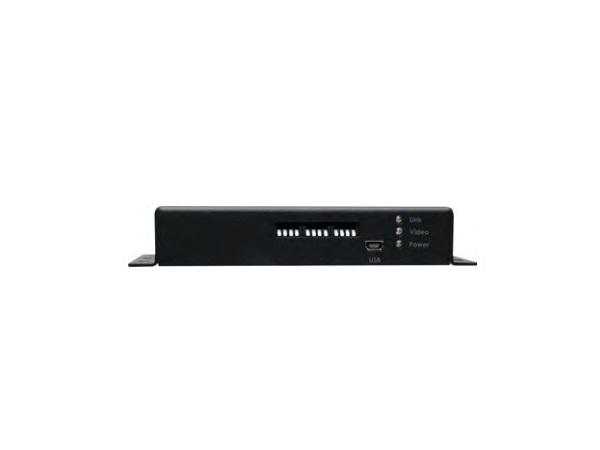

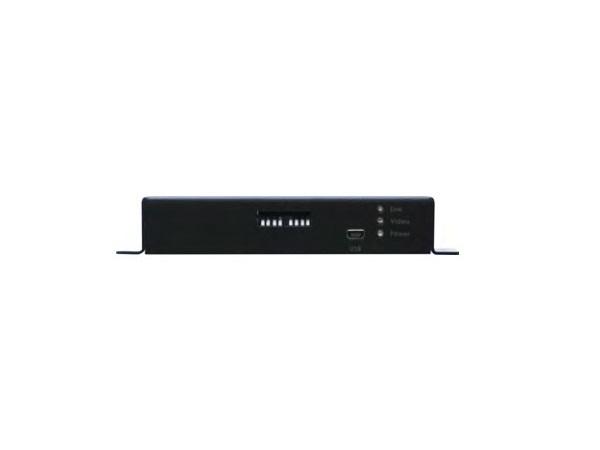

  • USB port (Sender/Receiver): (1) Mini-B (for Gefen Syner-G™ interface)
  • Power/Video/Link Indicator LEDs (Sender/Receiver): (1) Blue, (1) Amber, (1) Green
  • Power Supply connector (Sender/Receiver): (1) 48V DC, locking
  • Power Consumption (Sender and Receiver combined): 11W
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D, Sender/Receiver, not including connectors): 5.8" x 1" x 3.4" (146mm x 25mm x 85mm)
  • Net Weight (Sender/Receiver): 0.50 lbs (0.23 kg) each
  • Shipping Weight: 3.5 lbs. (1.6 kg)
