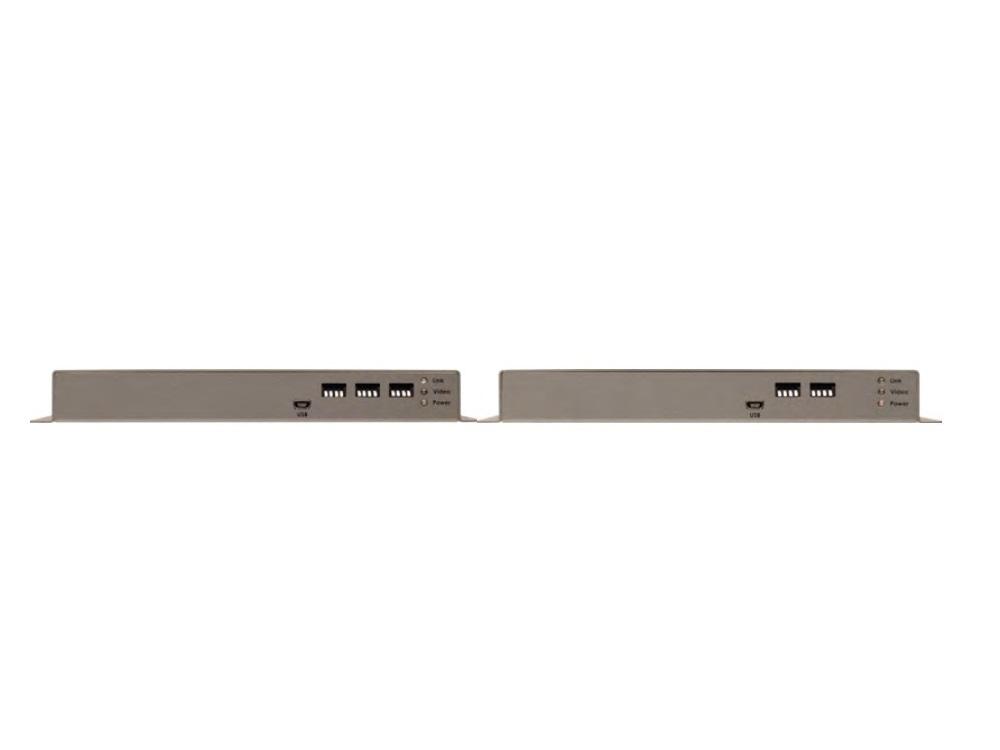

EXT-UHDA-HBT2 4K Ultra HD HDBaseT 2.0 Extender (Receiver/Sender) Kit with Ethernet/RS-232/IR/POH by Gefen

SKU: EXT-UHDA-HBT2
  • EXT-UHDA-HBT2 4K Ultra HD HDBaseT 2.0 Extender (Receiver/Sender) Kit with Ethernet/RS-232/IR/POH by Gefen
  • EXT-UHDA-HBT2 4K Ultra HD HDBaseT 2.0 Extender (Receiver/Sender) Kit with Ethernet/RS-232/IR/POH by Gefen
  • EXT-UHDA-HBT2 4K Ultra HD HDBaseT 2.0 Extender (Receiver/Sender) Kit with Ethernet/RS-232/IR/POH by Gefen
EXT-UHDA-HBT2 4K Ultra HD HDBaseT 2.0 Extender (Receiver/Sender) Kit with Ethernet/RS-232/IR/POH by Gefen

EXT-UHDA-HBT2 4K Ultra HD HDBaseT 2.0 Extender (Receiver/Sender) Kit with Ethernet/RS-232/IR/POH by Gefen

  • $715.20
Market price: $894.00, you save $178.80
  • 20% less
OUT OF STOCK
  • Brand
    Gefen
  • SKU
    EXT-UHDA-HBT2
  • Weight
    5.00 lbs
  • Warranty
    2 Years
  • Condition
    New
  • Status
    Discontinued
ASK AN EXPERT
Product Questions? Ask Our Experts!
888.660.2962 Chat sales@avprosupply.com
Out of stock
The EXT-UHDA-HBT2 uses Gefen's implementation of the latest HDBaseTTM 2.0 technology to extend HDMI up to 330 feet (100m) at 4K, using one CAT-5e cable. 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495 feet (150 meters).
  • Brand
    Gefen
  • SKU
    EXT-UHDA-HBT2
  • Weight
    5.00 lbs
  • Warranty
    2 Years
  • Condition
    New
  • Status
    Discontinued
Product availability status
Questions? Ask our experts!

GET A QUOTE
  • $715.20
Market price: $894.00, you save $178.80
  • 20% less


Manual

The EXT-UHDA-HBT2 uses Gefen's implementation of the latest HDBaseTTM 2.0 technology to extend HDMI up to 330 feet (100m) at 4K, using one CAT-5e cable. 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495 feet (150 meters). The new HDBaseTTM 2.0 ColligoTM platform provides additional features such as 2-way audio extension and ensures an even more robust and resilient connection than the industry standard HDBaseTTM. Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are supported. Supported HBR formats include Dolby Atmos®, Dolby® TrueHD, DTS:XTM, and DTS-HD Master AudioTM. Ethernet connection for a Smart TV can be extended from the source side to the viewing location without the need to run a separate cable. RS-232 and 2-way IR are transferred between the Sender and the Receiver to control the A/V source and the display. TOSLINK® Optical Digital Audio can be sent from the viewing location back to the source and analog audio can be extended from the source side to the Receiver. Bi-Directional POH (Power Over HDBaseTTM) technology provides power from the Sender to the Receiver and vice versa, using the same CAT-5 cable that extends the HDMI and control signals. Only one of the two units needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices. The Gefen Syner-GTM software with its powerful EDID Management capabilities speeds up configura- tion, performs real-time performance audits via Link Monitoring, and simplifies in-field firmware updates. Low profile, surface-mountable Sender and Receiver units fit in tight places and accommodate Gefen locking HDMI cables for secure connections.

Features:

  • Extends HDMI, Ethernet, RS-232, 2-way IR, and 2-way Audio over a single CAT-5e
    • 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
    • 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
    • 4K DCI-Cinema (4096 x 2160 @ 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495 feet/150 meters
  • HDMI Features Supported:
    • HDMI 2.0 up to 4K 60Hz, 4:2:0, 8-bit color
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • IR extension from Sender to Receiver and from Receiver to Sender
  • TOSLINK® Optical Digital Audio extension from Receiver to Sender
  • Analog L/R Stereo Audio extension from Sender to Receiver
  • Bi-Directional POH (Power Over HDBaseT™) feature provides power to the Sender or the Receiver unit over the link cable - only one side needs external power
  • Advanced EDID Management via Gefen Syner-G™ software
  • Link Quality Monitoring via Gefen Syner-G™ software
  • In-field firmware update via USB, using Gefen Syner-G™ software
  • Locking power connector
  • Low profile, surface-mountable enclosures
  • Maximum Pixel Clock: 300 MHz
  • Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking
  • Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking
  • Link connector (Sender/Receiver): (1) RJ-45, shielded, female
  • Ethernet port (Sender/Receiver): (1) RJ-45, shielded, female
  • RS-232 port (Sender): (1) DB-9, female
  • RS-232 port (Receiver): (1) DB-9, male
  • Optical Digital Audio Input connector (Receiver): (1) TOSLINK®, female
  • Optical Digital Audio Output connector (Sender): (1) TOSLINK®, female
  • Analog L/R Stereo Audio Input connector (Sender): (2) RCA, female
  • Analog L/R Stereo Audio Output connector (Receiver): (2) RCA, female
  • IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack
  • IR Extender type: EXT-RMT-EXTIRN
  • IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack
  • USB port (Sender/Receiver): (1) Mini-B (for Gefen Syner-GTM interface)
  • Power/Video/Link Indicator LEDs (Sender/Receiver): (1) Blue, (1) Amber, (1) Green Power Supply connector (Sender/Receiver): (1) 48V DC, locking
  • Power Consumption (Sender and Receiver combined): 14W
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D, Sender/Receiver, not including connectors): 8.4" x 1" x 4" (214mm x 25mm x 100mm)
  • Net Weight (Sender/Receiver): 0.75 lbs (0.35 kg) each
  • Shipping Weight: 4.5 lbs. (2.0 kg)
