BG-FES12G 4K UHD 12G SDI over Single mode SFP-type Fiber Optic Extender (No SFP, Supports 12G/6G/3G/HD/SD-SDI) by BZBGEAR

SKU: BG-FES12G
BG-FES12G 4K UHD 12G SDI over Single mode SFP-type Fiber Optic Extender (No SFP, Supports 12G/6G/3G/HD/SD-SDI) by BZBGEAR

BG-FES12G 4K UHD 12G SDI over Single mode SFP-type Fiber Optic Extender (No SFP, Supports 12G/6G/3G/HD/SD-SDI) by BZBGEAR

  • $999.00
Qty:
  • Brand
    BZBGEAR
  • SKU
    BG-FES12G
  • Weight
    2.00 lbs
  • Warranty
    5 Years
  • Condition
    New
  • Status
    In Stock
ASK AN EXPERT
Product Questions? Ask Our Experts!
In stock (50 items available)
The BG-FES12G is an advanced SDI extender that enables the extension of multiple SDI formats (12G/6G/3G/HD) with embedded audio up to a distance of 10 km (6.25 miles) over a single-mode fiber optic cable. With transmission speeds of up to 11.88 Gbps, this device ensures fast and reliable signal transmission for your SDI applications.
  • Brand
    BZBGEAR
  • SKU
    BG-FES12G
  • Weight
    2.00 lbs
  • Warranty
    5 Years
  • Condition
    New
  • Status
    In Stock
Questions? Ask our experts!

GET A QUOTE
  • $999.00



The BG-FES12G is an advanced SDI extender that enables the extension of multiple SDI formats (12G/6G/3G/HD) with embedded audio up to a distance of 10 km (6.25 miles) over a single-mode fiber optic cable. With transmission speeds of up to 11.88 Gbps, this device ensures fast and reliable signal transmission for your SDI applications.

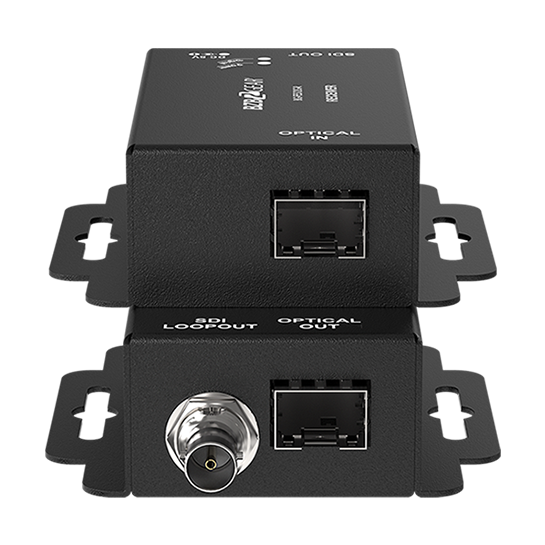

The transmitter and receiver units of this extender both feature equalizing and re-clocking functions, which help to maintain consistent signal quality over long distances. Additionally, the transmitter includes a handy SDI loop-out port for local display. The locking power supply featured on both units ensures a secure and reliable connection, giving you peace of mind and worry-free operation.

With the BG-FES12G, you can enjoy exceptional signal quality and reliable performance for all your SDI applications, whether it's for broadcasting, post-production, or live events.

Enhanced Quality and Reliability

Assured Excellence in Content: Featuring impeccable 4K/60 4:4:4 support, this cutting-edge device empowers seamless streaming of high-resolution content, unveiling a tapestry of vibrant hues and unprecedented clarity. Its prowess particularly shines in the realm of professional broadcast applications.

Seamless Integration, Zero Fuss: Embracing the realm of hassle-free integration, the device boasts a single-mode SFP compatibility that elegantly dovetails into your existing fiber optic infrastructure. This technological harmony not only facilitates the extension of SDI signals up to an impressive 10 km (6.25 miles) but also guarantees an unwavering fidelity of signal quality. Clocking in at speeds that soar up to 11.88 Gbps, rest assured that your video signals traverse their path swiftly and with unmatched efficiency.

TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).

4K/60 4:4:4 Support:
Ultra HD refers to a TV resolution of 3840 x 2160 pixels
High-Bandwidth:
Up to 11.88 Gbps
Fiber-Optic Connection:
Single-Mode SFP
Multiple SDI Formats:
12G/6G/3G/HD/SD
Extreme Range:
Extend signal up to 10 km/6.25 miles
Locking Cables:
Ensures reliable connection for power and video
  • SDI Loop-out on Transmitter to view content locally
  • Immune to RP-198 pathological patters
  • Automatic Re-clocking - Maintains solid signal lock


Video

Technical
SDI standard SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI
Auto HD/SD-SDI detection Yes
Supported protocols SMPTE 259M (270Mbps / 360Mpbs), DVB ASI (270Mbps)
SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps)
SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps)
SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps)
SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps)
Data rates 270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880Mbps
Video bandwidth 11.88Gpbs & 11.88/1.001Gbps
Video support [HD] 720p @ 50/59.94/60, 1035i @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 24/30,1080p @ 60,1080p @ 59.94, 4K2K @ 30, 4K2K @ 60
[SD] NTSC @ 59.94Hz, PAL @ 50Hz
SDI signal type SMPTE 2082-2, SMPTE 2082-1, SMPTE-424M, SMPTE-292M, SMPTE-259M, DVB-ASI
Auto reclocker mode Automatic detection: 270Mbps / 1.483Gbps / 1.485Gbps / 2.97Gbps / 2.967Gbps / 5.94Gbps / 5.934Gbps / 11880Gbps / 11868Gbps
Automatic bypass: 177Mbps / 360Mbps / 540Mbps
Output impedance 75Ω
Fiber Transmission 10km (6.25mi)
Loop-out Transmitter: 1 reclocking SDI loop-out
Receiver: N/A
Input Transmitter: 1x BNC [SDI] 1x Optical SFP [SDI]
Receiver: 1x Optical SFP [SDI]
Output Transmitter: 1x BNC [SDI] (optional loop-out)
Receiver: 1x BNC [SDI]
BNC connector 75Ω inter-locked socket
Audio support Yes
PCB Stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω ]
RP-198 pathological patterns Immune
Optical fiber connector SFP-type
Mechanical
Housing Metal case
Dimensions [L x W x H] Model: 2.9" x 2.9" x 1.0" [74 x 74 x 26mm]
Package: 5.5" x 7.9" x 3" [140 x 200 x 75mm]
Weight Model: 7.4 oz [211g]
Package: 15.4 oz [440g]
Power supply 5V 2A DC Inter-locked power supply
Power consumption 3 Watts [max]
Operation temperature 32~104°F / 0~40°C
Storage temperature -4~140°F / -20~60°C
Relative humidity 20~90% RH [no condensation]
