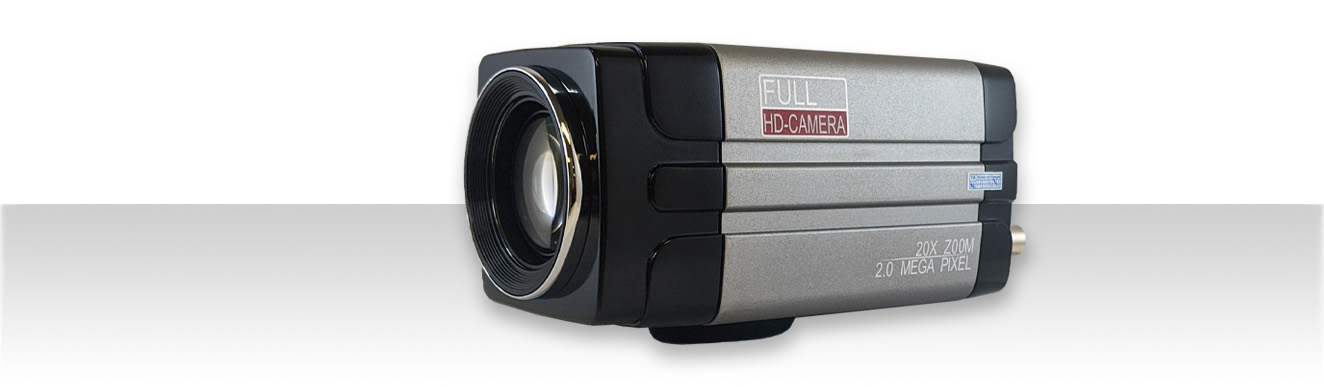

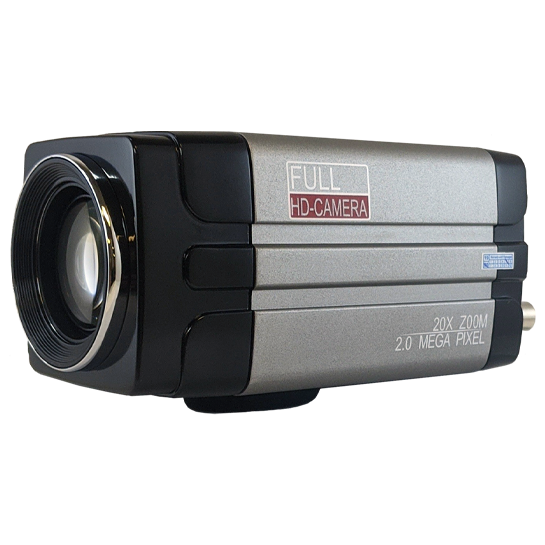

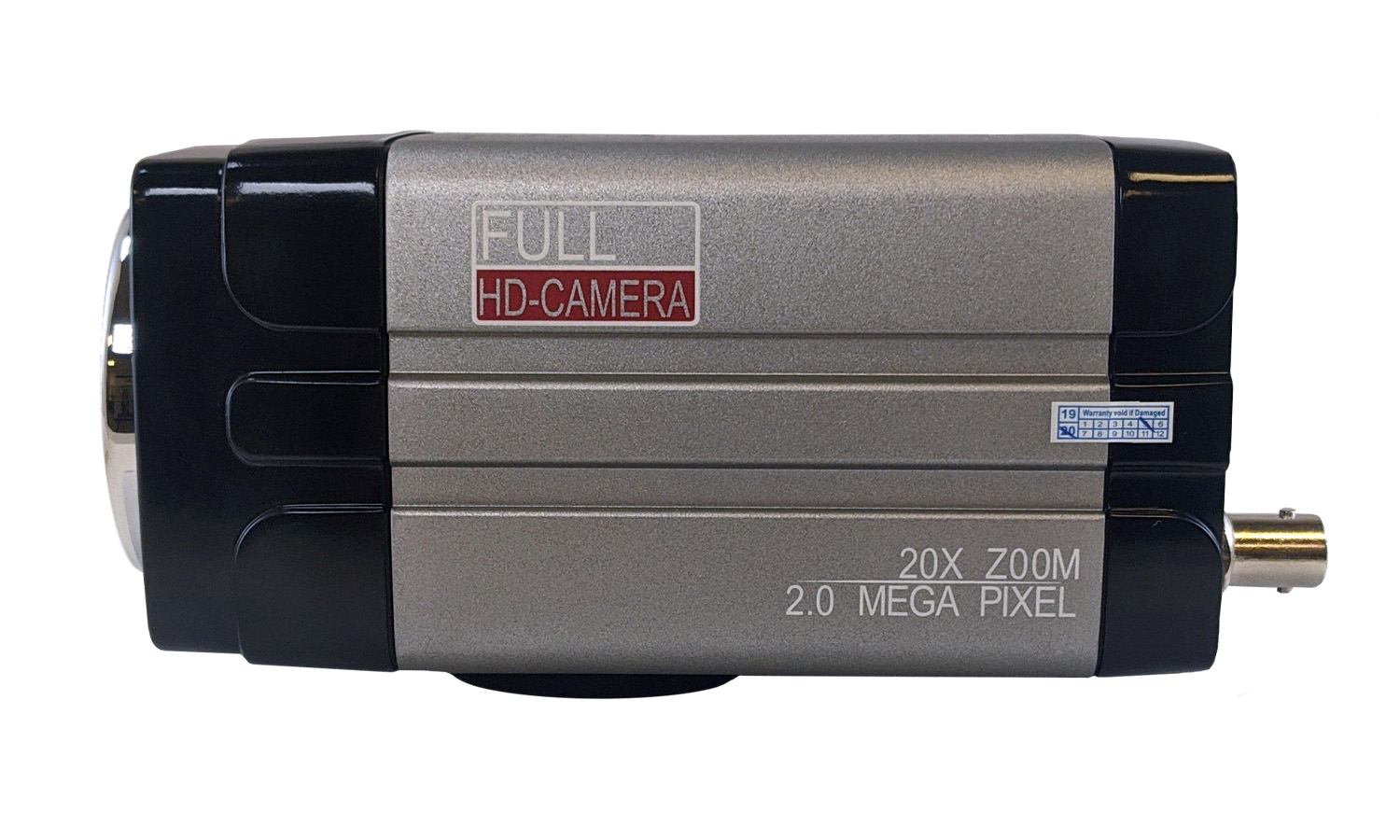

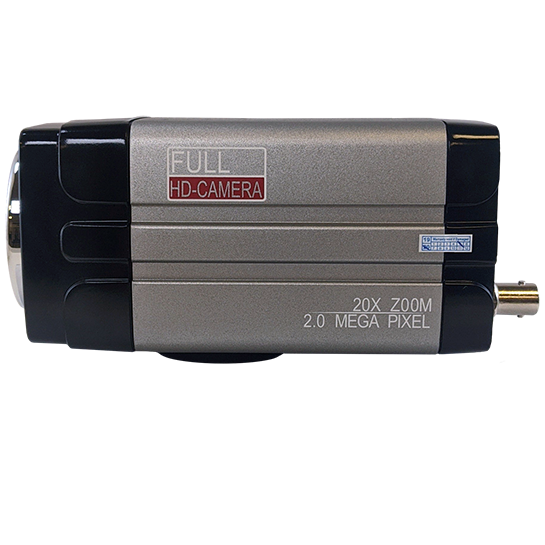

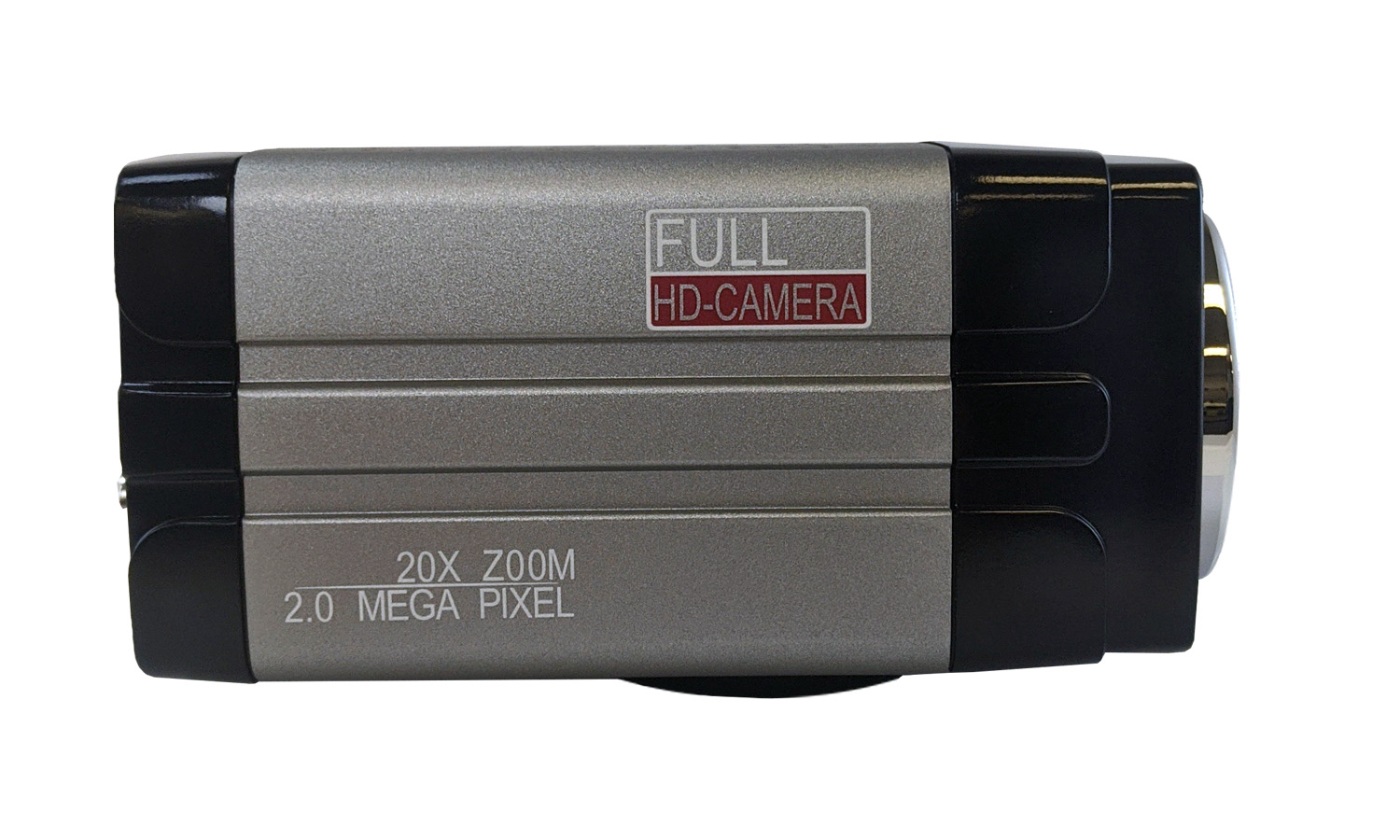

BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR

SKU: BG-B20HS
  • BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR
  • BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR
  • BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR
  • BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR
BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR

BG-B20HS Full HD Integrated HDMI/SDI 20X Zoom Camera by BZBGEAR

  • $399.00
Market price: $749.00, you save $350.00
  • 47% less
Qty:
Make an Offer
  • Brand
    BZBGEAR
  • SKU
    BG-B20HS
  • Weight
    2.00 lbs
  • Warranty
    1 Year
  • Condition
    New
  • Status
    In Stock
ASK AN EXPERT
Product Questions? Ask Our Experts!
888.660.2962 Chat [email protected]
In stock (50 items available)
The BG-B20HS combines high performance with a convenient form factor to deliver great value. This compact but robust camera provides bright and crisp images with a strong sense of depth, high resolution, and fantastic color rendition.
  • Brand
    BZBGEAR
  • SKU
    BG-B20HS
  • Weight
    2.00 lbs
  • Warranty
    1 Year
  • Condition
    New
  • Status
    In Stock
Product availability status
Questions? Ask our experts!

GET A QUOTE
  • $399.00
Market price: $749.00, you save $350.00
  • 47% less
Make an Offer


Manual

The BG-B20HS combines high performance with a convenient form factor to deliver great value. This compact but robust camera provides bright and crisp images with a strong sense of depth, high resolution, and fantastic color rendition. The H.264/H.265 encoding makes motion video fluent and clear even under less than ideal bandwidth conditions. Equipped with a powerful 20X zoom lens ensures a distant shot up to 50ft with a beautiful 1080P/60 image.
Zoom:
Powerful 20X Zoom Lens
Multiple Outputs:
Use SDI, HDMI, or IP Stream
Auto-Focus:
Always delivers a crisp image
Compact Form Factor:
Perfect for ceiling mount
1080p60 Output:
High framerate ensures fluid motion capture
Reliable:
Designed for years of trouble-free use
  • Superb High-definition Image 1/2.8 inch high quality CMOS sensor delivers resolutions up to 1920?1080 with frame rates up to 60fps.
  • Leading Auto Focus Technology Our proprietary technology makes auto-focusing fast, accurate, and stable.
  • Low Noise and High SNR A low noise CMOS sensor delivers a high SNR. Advanced 2D/3D noise reduction technology further reduces the noise creating a clear, sharp image.
  • Multi-Format Video Outputs Multiple interfaces include: HDMI, 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
  • Multiple Video Compression Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.
  • Multiple Network Protocol Supports ONVIF, RTSP, RTMP protocols. RTMP push mode makes it easy to link streaming media servers (Wowza, FMS).
  • Support Multiple Control Protocol Support VISCA, PELCO-D, PELCO-P protocols. Supports Visca protocol control through IP port.
  • Wide Application Remote learning, Lectures, Webcasting, Video Conferencing, Remote training, Remote medicine, Interrogation and Emergency command systems.
Compatible with:


Ideal fit to:
- Surveillance
- Monitoring lobbies, corridors, and entryways
- Situations requiring discreet installation


Who buys it:
- Security personnel
- Hospitals
- Schools

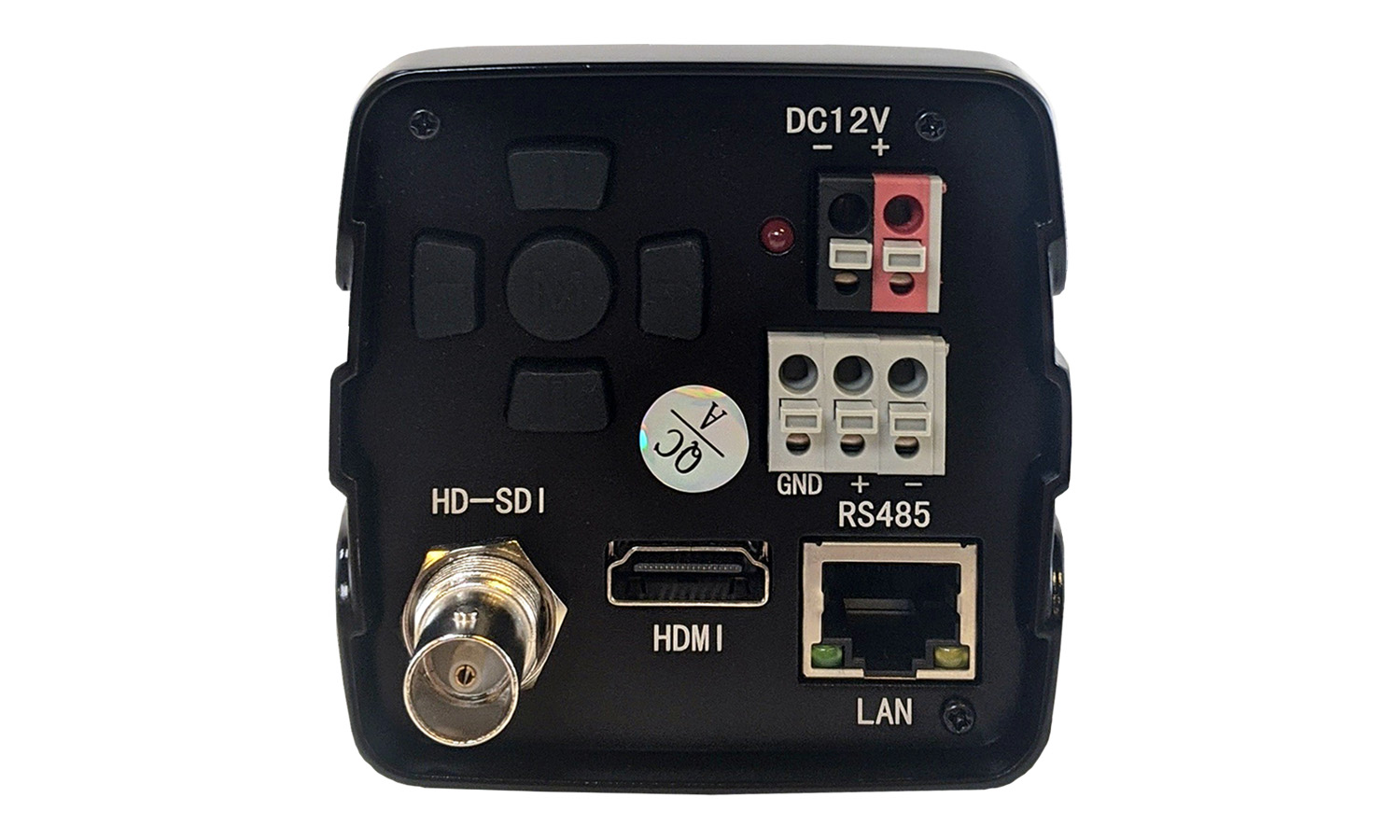

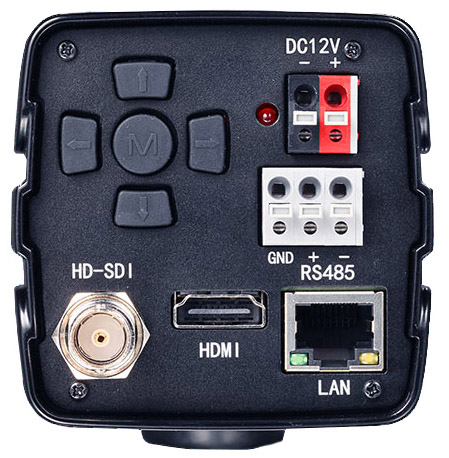

Interface



HDMI

Crystal clear image with resolutions up to 1080p @ 60 fps.

LAN

IP Control, and streaming interface

SDI

1080p @ 60 fps for distances up to 300 ft.

Control I/O

8 pin Mini-DIN input for RS-232 control and output for cascadable connections. RS-422/485 interface.

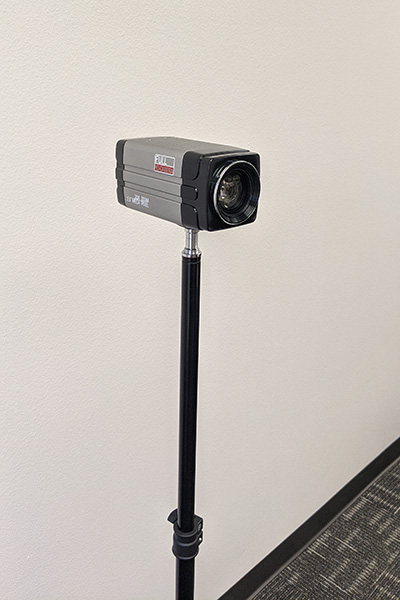

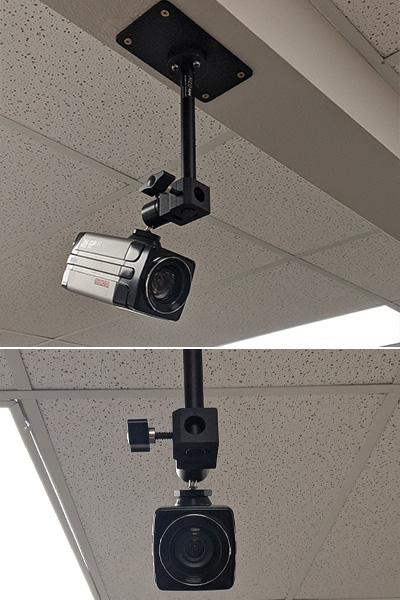

Mounting Options

Camera Parameters
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9, 2.07 megapixel
Video Format 1080P60/50/30/25/59.94/29.97
1080I60/50/59.94
720P60/50/30/25 /59.94/29.97
Optical Zoom 20X optical zoom, f＝5.2~98mm
View Angle 5.5°(tele)–54.7°(wide)
 Aperture F1.6 ～ F3.5
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K / 4000K / 5000K / 6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/output Interface
Video Interfaces HDMI, 3G-SDI
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Protocol Protocol: VISCA / Pelco-D / Pelco-P Baud Rate: 115200/9600/4800/2400bps
HD IP Interface 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port.
Network Protocol RTSP/RTMP, ONVIF
Power Interface 5.0 Card line socket (DC12V)
Other Parameters
Power Adaptor AC110V-AC220V to DC12V/1A
Input Voltage DC12V±10%
Input Current 400mA(Max)
Consumption 4.8W (Max)
Store Temperature -10°C ~ +60°C
Store Humidity 20% – 95%
Working Temperature -10°C ~ +50°C
Working Humidity 20%–80%
Dimension 155.7mmX70mmX70mm
Weight 0.7KG
Application Indoor
Remote Operation (IP) Remote Upgrade, Reboot and Reset
