It's never been easier to design and instal a large distributed HDMI AV system with local input at every location.

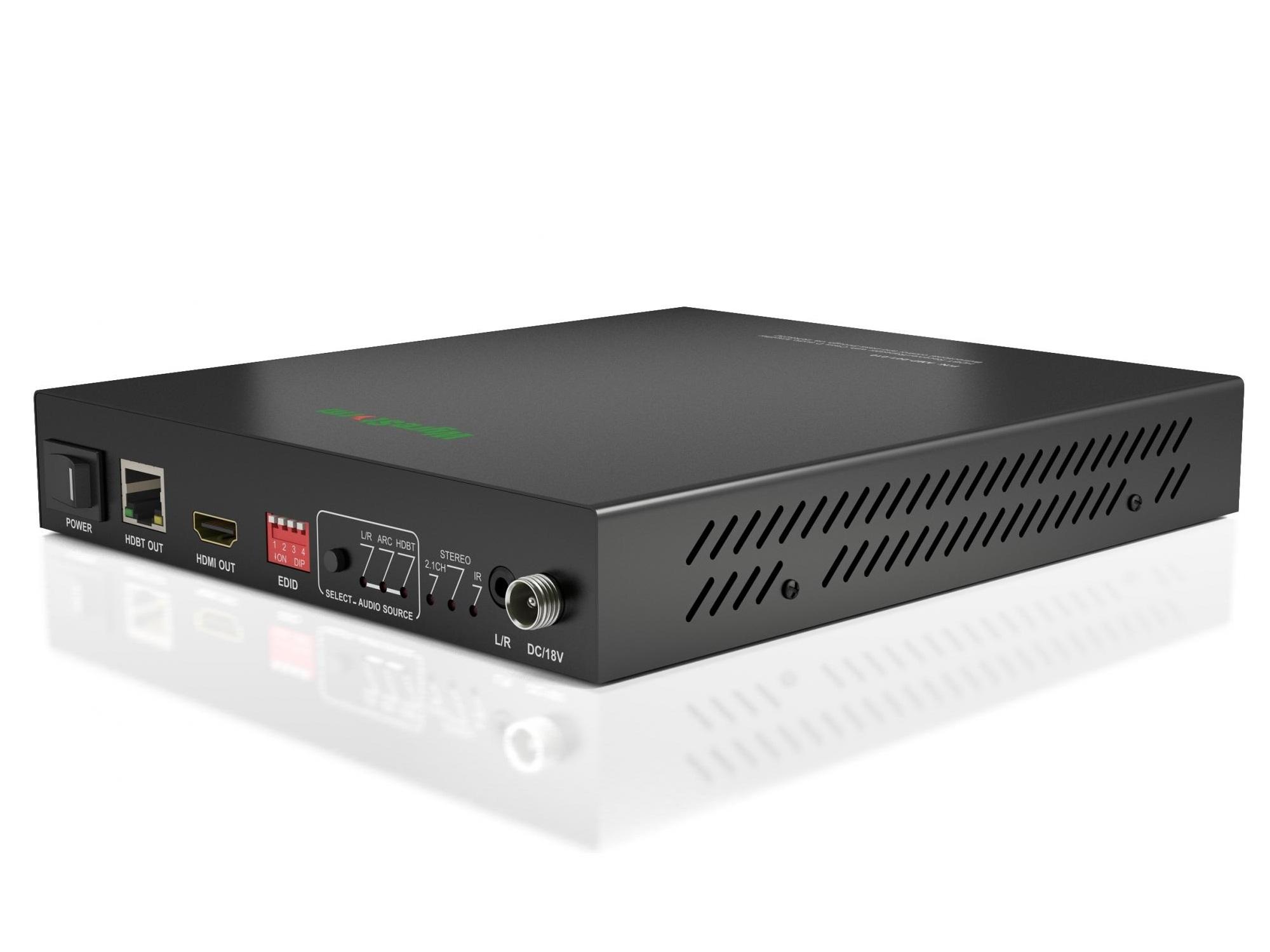

The AMP-001-010 combines networked AV, local audio input and 2x25w Class D amplification, with the distribution benefits of single wire HDBaseT. It can be used as a straightforward extender solution for single-source/single-display residential systems, or as part of a much more ambitious network for larger commercial systems, when partnered with one WyreStorm's Pro Plus multiple output Matrix devices.

At its most basic, the AMP-001-010 can extract stereo audio direct from the digital audio within the HDBaseT signal and amplify it locally, removing the need for any extra breakout boxes and converters. A single Cat5e/6 cable is all that's required between the source and amplifier; the amp provides spring clip terminals for stereo speakers, a dedicated subwoofer output plus an HDMI feed for the display, all fully controllable via IR or RS232.

Typically, a simple residential system might consist of AV sources (set top box, media server etc) routed to the amplifier via a TX-70-PP HDBaseT transmitter; speakers and a subwoofer would be connected directly to the AMP-001-010. The ARC (Audio Return Channel) functionality of the amp allows audio from a connected Smart TV to be played into the system, giving the listener instant access to a multitude of streaming services. Personal audio can also be input via a 3.5mm auxiliary audio jack, if required. Should more amplification be needed in any particular zone, a larger amp can be hooked up using a pair of pre-outs, without sacrificing ARC, repeating, receiving and audio switching capabilities.

Additionally, the system can be expanded across a network. More WyreStorm HDBaseT amps can be added via a single Cat 5e/6cable, connecting to more speakers and displays, all being fed either from the same centralised AV input, or from individual local sources. Up to seven AMP-001-010 units can be added to single network, potentially covering a distance of 490m/1610ft with full HD video, amplified 2.1 audio and IR/RS-232 control.

For a larger commercial project, the AMP-001-010 could be added to the multiple outputs of an HDBaseT matrix switcher for a system containing up to 56 screens, spanning a distance of up to 3.9km/2.4miles.

This incredible flexibility not only sees the Amp equally as effective when used locally as a standalone amplifier and receiver but also part of a larger, cascaded distribution containing WyreStorm Presentation Switcher, Pro Plus HDBaseT matrix or full HDBaseT matrices.  Furthermore, as each unit is also capable of Power-over-HDBaseT passthrough up to 50m/164ft, Amps can be used together with PoH enabled matrices and display receivers to remove the need for additional mains power for the receiver at the display end whilst maintaining all the features of individual Amps in the distribution.

This incredible versatility, combined  its compact size means there are multiple installation options for the AMP-001-010. It can be located in a ceiling void and coupled to in-ceiling/in-wall speakers, wall-mounted next to a data plate, or even parked in a centralised rack with the matrix switcher and routed to each zone with conventional speaker cable and one Cat5e/6 cable.

How you use the AMP-001-010 is up to you.  The only limit is your imagination.

Features:

• Combined HDBaseT Repeater, Receiver and Class D Amplifier – all-in-one
• HDBaseT Input, HDBaseT Output
• 3:1 Audio Switcher/Receiver – Audio from Centralized source via HDBT Transmitter or Matrix Device, Audio Return Channel (ARC) or Local Audio Input via 3.5mm
• AMP used centrally with AV source, In-line close to speakers, wall mounted near data connections or locally at display location
• 70m/230ft transmission between transmitting device and AMP > then another 70m/230ft to next AMP
• Fully cascadable up to 7 times from single transmitting device (Matrix or HDBaseT transmitter)
• 50m/164ft Power-over-HDBaseT Passthrough to PoH enabled display receivers
• HDMI output for direct connection of HD display either in-line to each AMP connected or at the end of the run
• 2.1 stereo audio at 25w per channel
• Left/Right spring terminal connections for speakers
• RCA Subwoofer output connection
• Bidirectional control of source and display via IR or addressable RS232 - commands (Tx, Rx, Gnd) sent with HD Audio & Video along the single Cat5e/6
• EDID management and pre-sets via DIP switch
• LED indication of audio source selection - HDBaseT, Local or ARC
• Accessory pack including configuration software, remote, IR receiver
• Compact size for flexible integration location
• 3 year warranty
